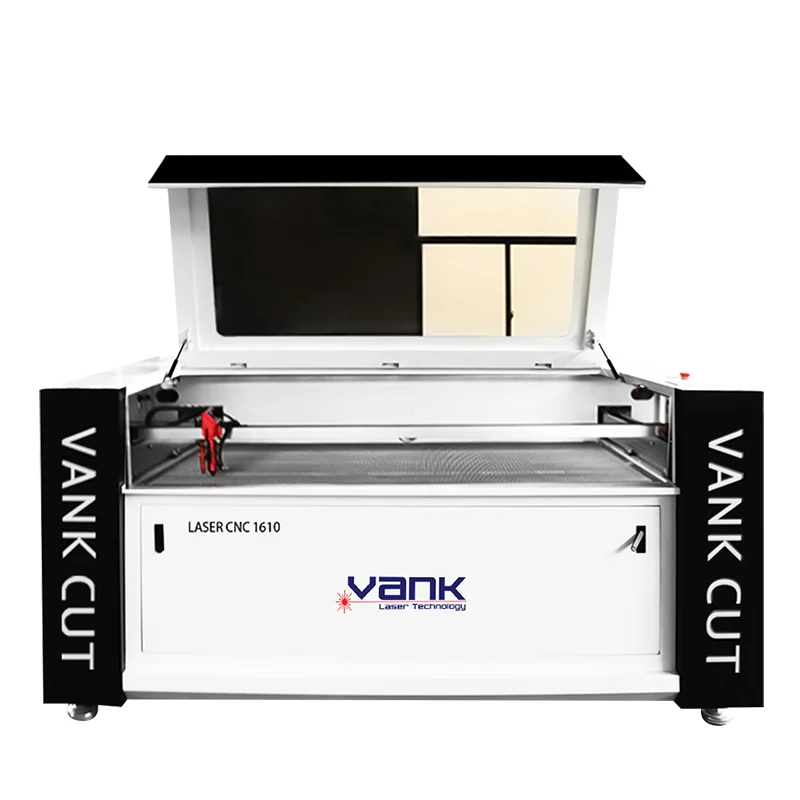

1610 CO2 Laser Applications
The 1610 CO2 laser engraving and cutting machine provides a nominal 1600 × 1000 mm work area for qualified acrylic, wood, plywood, MDF, paper, leather and textile applications. Select the tube, bed, extraction, air assist and software around the actual material and production test.
- 80 / 100 / 130 / 150 W class sealed CO2 tube options; higher-power configurations require a separate quotation.
- The 1610 model uses a nominal 1600 × 1000 mm area; 9060, 1390 and 1325 platforms are separate family options.
- Honeycomb and knife-blade worktables for different sheet thicknesses, part sizes and airflow needs.
- Ruida DSP controller and supplied software; exact controller model must be confirmed.
- Optional autofocus or motorized Z table, plus red-light positioning according to the configuration.
- Emergency stop, cooling-flow protection and quoted access interlocks are supplemental Class 4 controls.
- LightBurn Pro supports compatible Ruida DSP controllers; confirm the exact board and firmware.
- Operating-system and connection support depend on the supplied controller, driver, software edition and interface.
Tube Power Selection
Choose 80-150 W class output by material, thickness, engraving detail, edge target and duty cycle. Tube brand, usable output and chiller capacity must be confirmed together.

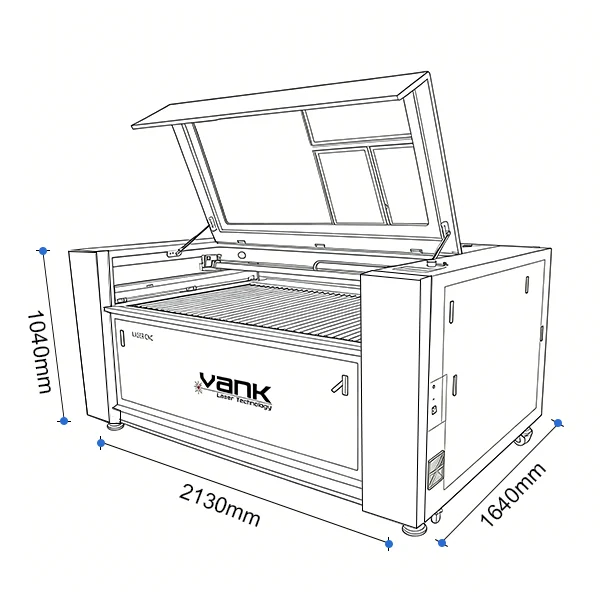

1600 × 1000 mm Working Area
The 1610 platform is built around a nominal 1600 × 1000 mm bed. Confirm usable travel, pass-through access, machine footprint, loading clearance and extraction connections on the final drawing.
Protected Linear-Motion System
Square linear guides and covered transmission components reduce dust exposure. Motion accuracy still depends on frame assembly, leveling, belt tension, optics, calibration and maintenance.
Matched Water-Cooling System
Use the tube manufacturer's specified chiller capacity, coolant, temperature and flow limits. The laser must stop on low-flow or over-temperature alarms.
Application-Tested Engraving Quality
Engraving detail and cut quality depend on focus, lens, beam alignment, material response, speed, power, air assist and extraction. Approve a sample using the production artwork and substrate.
Production-Floor Installation
Plan floor loading, machine clearance, ducting, chiller airflow, electrical service and material handling before delivery. Move and level the machine only according to the installation plan.
1610 CO2 Laser Specifications
| Model | VankCut-1610 CO2 laser engraving and cutting machine |
| Nominal Working Area | 1600 × 1000 mm |
| Primary Process | Engraving and cutting qualified nonmetal materials |
| Laser Source | Sealed water-cooled CO2 glass tube |
| Rated Tube Power | 80 / 100 / 130 / 150 W class options; higher-power configurations require separate confirmation |
| Nominal Wavelength | 10.6 μm |
| Worktables | Honeycomb and replaceable knife-blade options |
| Z / Rotary Options | Motorized lift table, autofocus and roller/chuck rotary subject to configuration and clearance |
| Motion System | Covered linear guides with belt transmission and quoted stepper/servo package |
| Reference Speed | Up to 600 mm/s engraving and 300 mm/s travel/cutting reference in the source configuration; production speed is test-dependent |
| Positioning Reference | ≤0.01 mm quoted; verify by leveling, calibration and acceptance sample |
| Controller & Software | Ruida DSP and supplied control software; LightBurn Pro only when the exact board and firmware are supported |
| Supported Files | DST, PLT, BMP, JPG, DWG, DXF, AI and HPGL subject to the supplied software version |
| Cooling & Extraction | Industrial water chiller, air assist and source-capture exhaust sized for tube power and approved materials |
| Site, Safety & Acceptance | Electrical service to quotation; Class 4 enclosure/access controls, interlocks, PPE, fire controls, training and sample acceptance required |
Material Qualification Guide
| Material | Typical CO2 Process | Qualification Points |
| Acrylic | Engrave and cut | Cast/extruded grade, thickness, flame-polished edge, taper, fumes and cycle time |
| Plywood / MDF | Engrave and cut | Wood species, glue/resin chemistry, moisture, charring, flame and extraction |
| Solid Wood / Bamboo | Engrave and cut | Species, density, grain, resin, moisture, smoke and fire load |
| Paper / Cardboard | Mark and cut | Coating, adhesive, flame behavior, airflow and part hold-down |
| Natural or Approved Leather | Engrave and cut after SDS review | Tanning chemistry, finish, chromium content, odor, fumes and edge darkening |
| Qualified Textiles | Mark and cut | Fiber, dye, backing, coating, edge sealing, shrinkage and extraction |
| Glass / Stone | Surface marking only after testing | Fracture risk, coating, fixturing and cosmetic acceptance; not through-cutting |
| Prohibited / Unknown | Do not process | PVC, vinyl, PTFE, other halogenated materials, epoxy or phenolic laminates, unknown synthetic leather, rubber, resin, plastics and composites |
Approve the exact production material and settings by sample; generic thickness claims are not acceptance values.
Qualified Materials
Typical candidates include documented acrylic, wood, plywood, MDF, bamboo, paper, cardboard, approved natural leather and qualified textiles. Glass, ceramic and stone are surface-marking applications only. Review every coating, adhesive, dye and polymer SDS; do not process PVC, vinyl, PTFE, other halogenated materials, epoxy or phenolic laminates, unknown synthetic leather, rubber, resin, plastics or composites.
Qualified Industries
Typical uses include signs, displays, models, packaging, paper converting, approved leather goods, textile appliqué, crafts, furniture details and acrylic fabrication. Regulated products require application-specific validation.
Acrylic Engraving
Paper Cutting
Wood Engraving
Acrylic Cutting
Seal Engraving
Wood Cutting
Honeycomb & Knife-Blade Worktables
Select a honeycomb bed for thin flexible material or a replaceable blade bed for thicker rigid sheet; confirm whether one or both are included.
Ruida DSP Control Workflow
The supplied Ruida workflow imports supported vector and bitmap files, assigns layers, speed, power and processing order, and sends jobs by the configured interface. File support, networking and operating-system requirements depend on the controller and software version.
Ruida RDC6445-Class Controller
RDC6445-class controllers provide onboard job storage, layer parameters, motion control and machine status functions. LightBurn Pro supports compatible Ruida DSP boards, but the exact model, firmware, connection and license must be confirmed.

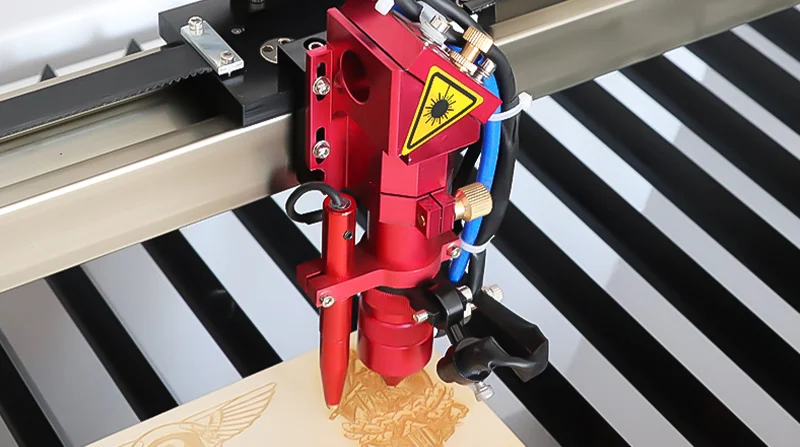

CO2 Cutting & Engraving Head
The lens and nozzle focus 10.6 μm CO2 energy for approved nonmetal engraving and cutting. Select focal length, air assist and standoff for the material and detail target; this standard head is not for bare-metal cutting.
Sealed CO2 Laser Tube
A water-cooled sealed glass tube supplies the configured 10.6 μm output. Confirm brand, rated and usable power, warranty, coolant specification, chiller capacity and expected duty cycle.
Which optional accessories support my application?
Options depend on part height, shape, weight, bed clearance and controller support. Confirm travel, load capacity, rotary diameter and included wiring before ordering.
- Motorized Z table: adds vertical clearance for taller work and rotary fixtures within its rated load and travel.
- Red-light pointer and autofocus: assist positioning and focus setup but do not replace calibration, focus checks or operator review.
- Roller rotary: supports suitable cylindrical parts; verify diameter, length, weight, grip, clearance and glass-fracture risk.
- Chuck rotary: clamps compatible round stock; verify jaw range, concentricity, part protection and Z-table clearance.
1610 CO2 Laser Cutter FAQ
What materials can a CO2 laser engraving/cutting machine process?
Common candidates include documented acrylic, wood, plywood, MDF, paper, cardboard, approved leather and qualified textiles. Glass, ceramic and stone are generally surface-marking jobs. Confirm chemistry and SDS first; PVC, PTFE, halogenated, epoxy, phenolic and unknown materials are prohibited.
Can a CO2 laser cut or engrave metal?
This standard 1610 CO2 configuration is for nonmetals and cannot cut bare metal. It may remove or mark some approved coatings after testing; use a fiber laser or a purpose-built hybrid system for bare-metal processing.
Why is the laser tube not emitting light or losing power?
Stop the job and follow the documented lockout and troubleshooting procedure. With the laser disabled, check the chiller alarm, verified flow, temperature, interlocks, controller messages and visible cable or connector condition.
Do not bypass water protection, defeat interlocks, open the high-voltage supply or use a manual test button unless the manufacturer's procedure assigns that step to a qualified technician. Escalate loss of emission or power to trained service personnel.
What maintenance does the chiller and water cooling system require?
Follow the tube and chiller manufacturer's coolant, conductivity, temperature, flow and replacement schedule. Inspect hoses, fittings, filters and reservoir condition; clean the condenser or dust filter with power isolated and record alarms and service.
Maintain the specified ambient temperature and clear ventilation space around the chiller. Do not continue production after high-temperature or low-flow alarms until the cause is corrected and cooling interlocks are verified.
What is the difference between CO2 and fiber lasers?
CO2 lasers are well suited to acrylic, wood, paper and many approved organics. Fiber lasers are generally preferred for efficient metal cutting and marking. Choose by material chemistry, thickness, engraving or cutting goal, edge requirement and production volume.
What working area sizes are common?
The 1610 model has a nominal 1600 × 1000 mm area. The wider family may include 9060, 1390 and 1325 platforms; confirm usable travel, bed, footprint and material-loading access on the final drawing.
