Application and model selection
The 3015 brochure lists power classes from 1.5 to 20 kW across configured versions. Larger 6015 beds or higher powers require a separately documented package. Compare the complete cutting and handling cycle, including gas demand, loading, unloading and sorting, when choosing between power levels.
Configuration and specifications
| Parameter | Product configuration |
|---|---|
| Model / format | 3015 |
| Nominal working area | 3000 × 1500 mm |
| Laser power options | 1.5 / 2 / 3 / 6 / 10 / 12 / 15 / 20 kW |

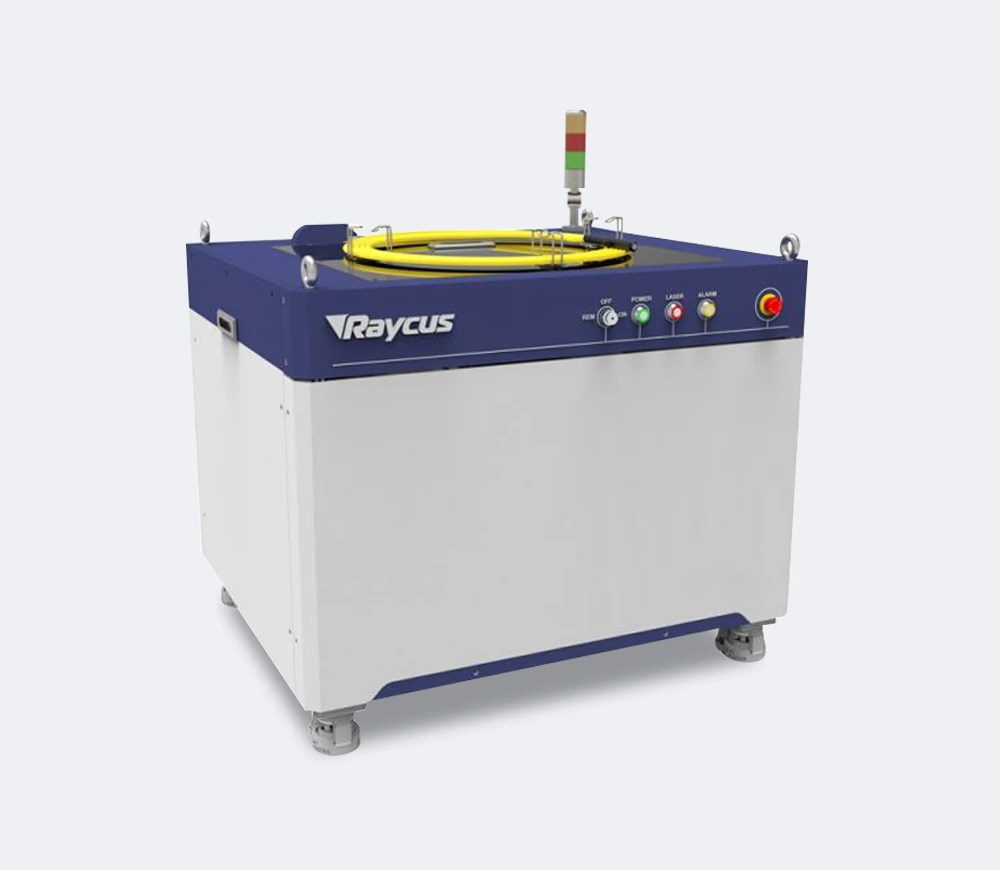

| Laser source | Continuous-wave fiber source; exact brand and model by quotation |
| Controller / software | CypCut / FSCUT package matched to power and head |
| Cooling | Industrial water chiller matched to source power |
| Machine format | Sheet-metal platform; guarding and loading to quotation |
The values below identify this product and its listed options. The selected source, optics, controller, accessories and site utilities must be named in the quotation. Motion speed and positioning figures do not establish finished-part tolerance or production throughput.
Materials and process limits

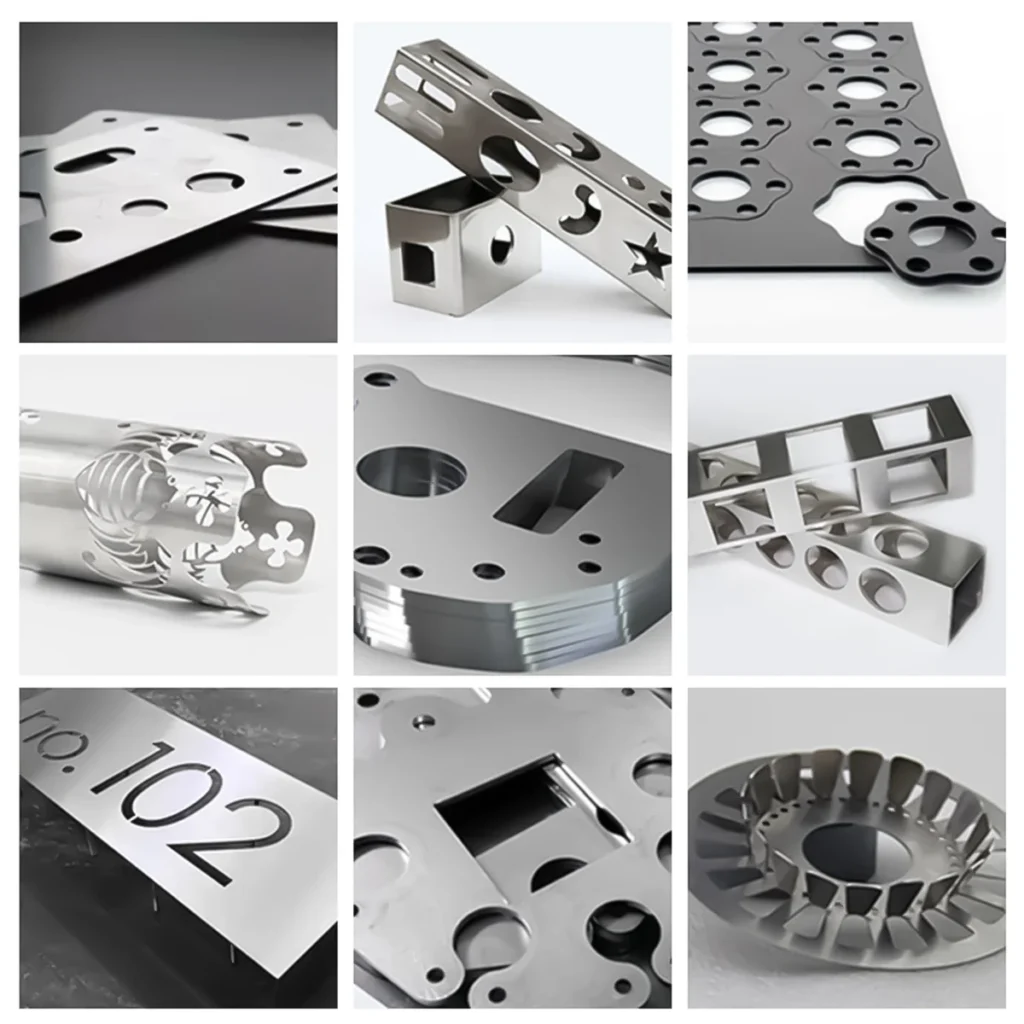

Carbon steel and stainless steel are common applications. Aluminum, brass, copper and other reflective alloys require a source and head approved for the material plus a process trial. Coated and galvanized sheet need fume review. These flatbed machines process sheet; tube cutting requires dedicated hardware and software.
Production workflow

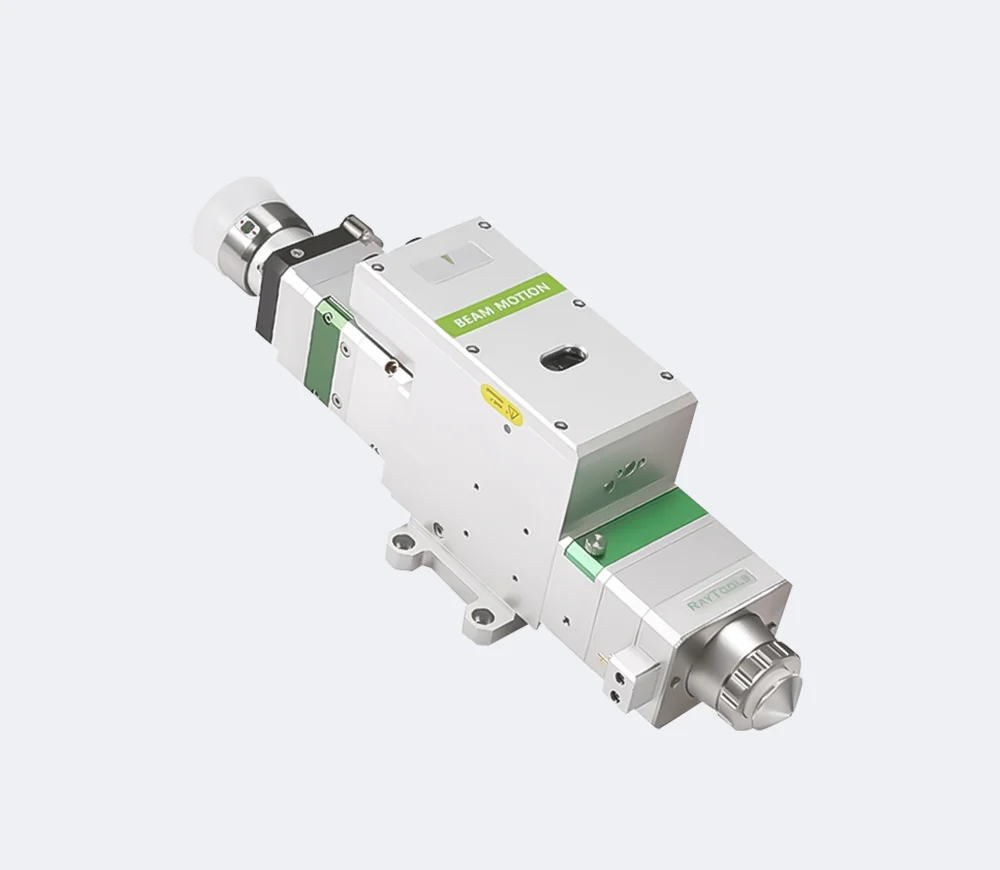

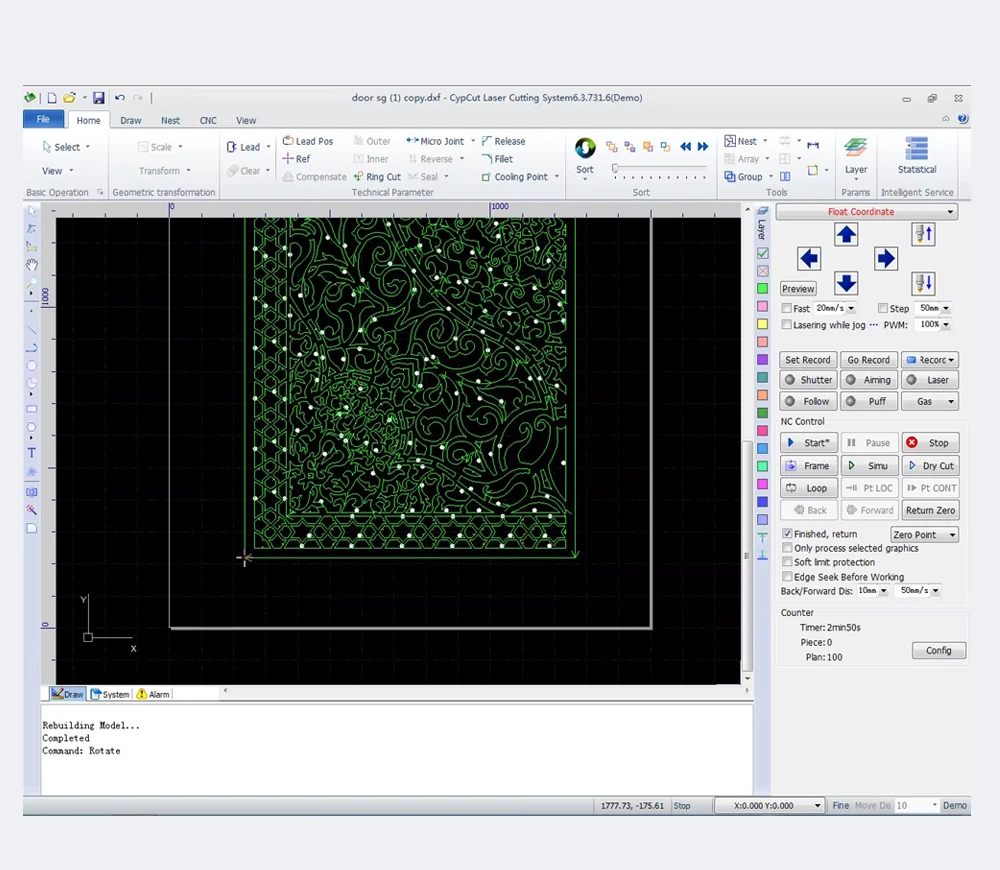

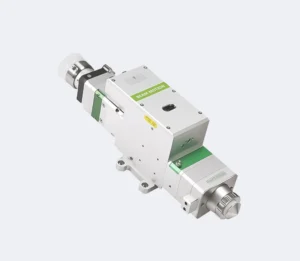

Import the drawing into the matched CypCut/FSCUT workflow, check scale and nesting, and set material-specific piercing, focus, gas and kerf compensation. Capacitive height following controls nozzle clearance. Approve the sample against the drawing before running the production nest; software and available functions depend on the delivered controller and license.
Options to specify
Match the source, autofocus head, gas system, dual-circuit chiller and extraction to the selected power. Check sheet loading, bed load, smallest part support and service clearance. Source brand alone does not establish performance or local service coverage. Nozzles, protective windows, gas, filters, coolant and lubrication remain operating costs.
Plan suitable guarding, interlocks, emergency stops, extraction and operator training for the supplied laser system. The finished machine classification must be verified; an enclosure alone is not proof of Class 1 compliance. Follow the supplied operating and maintenance instructions.
Sample test and acceptance
Approve a representative sample and the written configuration before ordering. Record the material, source, settings, lens or nozzle, fixture, appearance, dimensions and complete cycle time. Keep those results as the production acceptance reference.
Installation, service and documentation
Ask Vank Laser to include the machine layout, electrical requirements, supplied software, operating instructions, maintenance schedule and recommended spare parts in the technical proposal. Agree commissioning, operator training, support language, warranty coverage and service responsibilities before shipment. Request conformity documents for the actual machine and destination.
Request a sample test and quotation
Send material grade, coating, sheet dimensions, thickness range, CAD drawings, critical tolerances, edge requirements, daily volume and available process gases.
Send the destination country, installation voltage and required delivery scope with your inquiry. Ask for sample photos or video, measured results and a configuration-specific quotation.
Request a sample test and configuration quote
Compare related machines

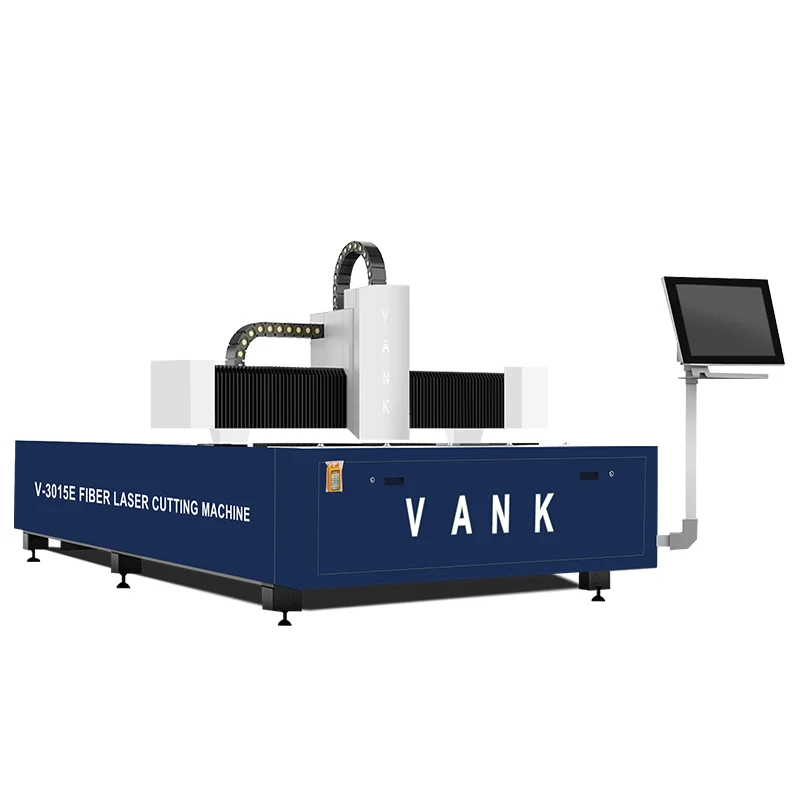

Machine and component photos
