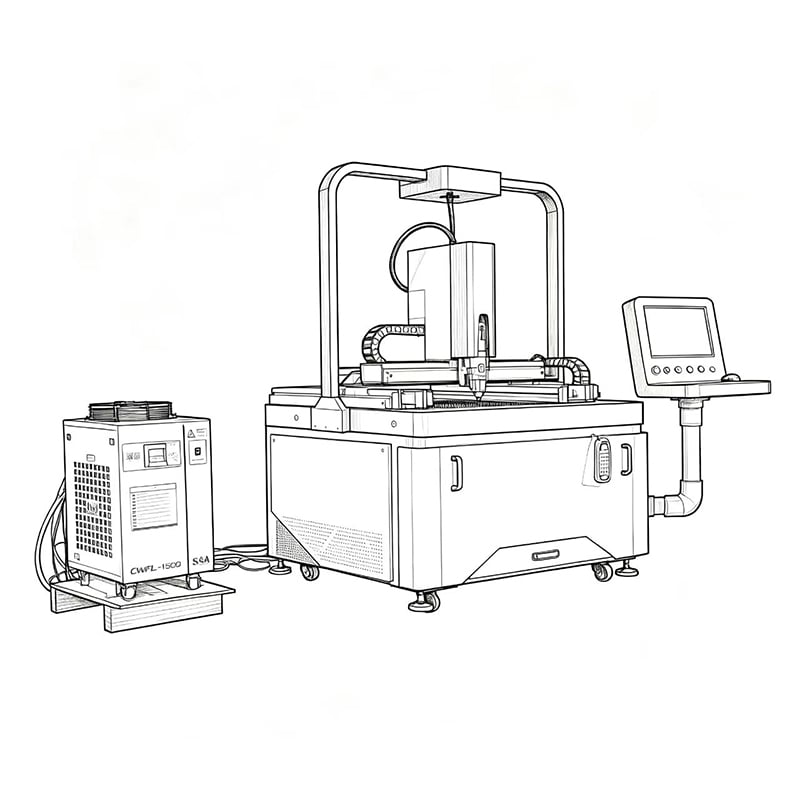

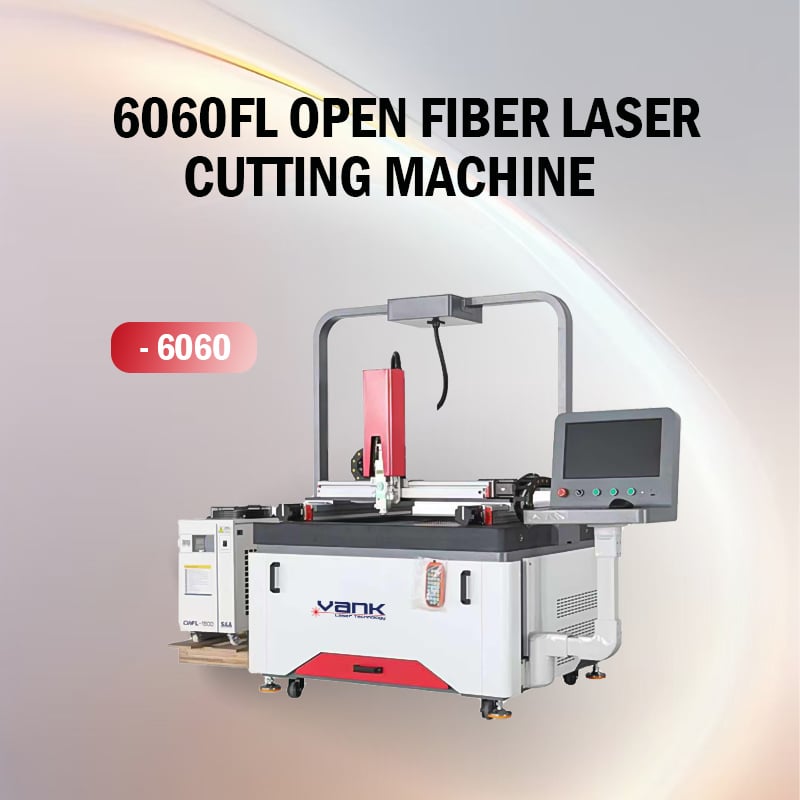

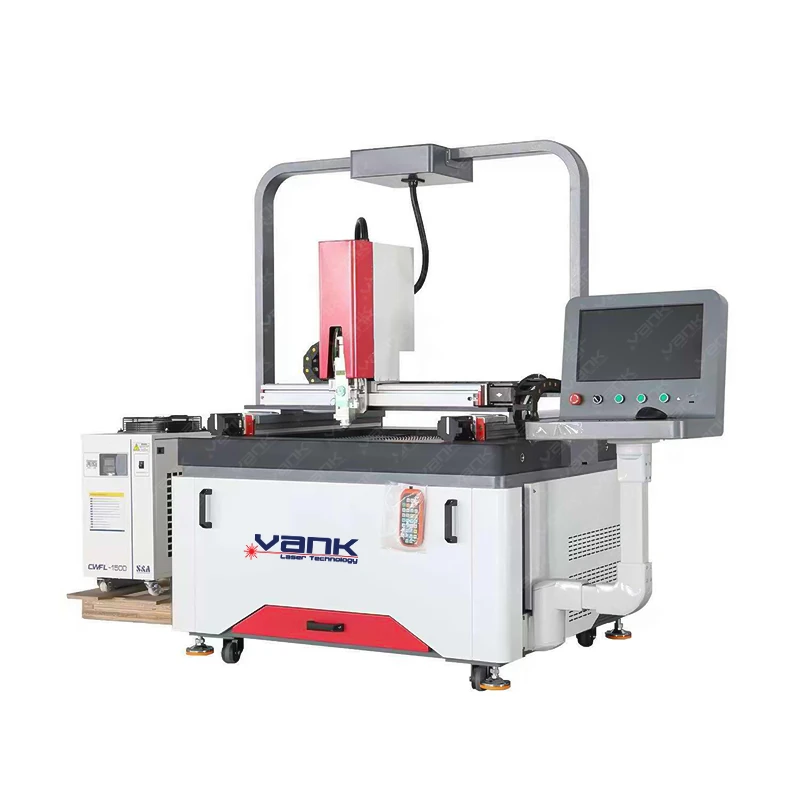

VankCut-6060FL Open Fiber Laser Cutting Machine
The VankCut-6060FL is a open CNC fiber laser cutting machine with a 600 × 600 mm work area for small-format metal parts and thin-sheet fabrication. Available in 1500 W-2000 W configurations, it is intended for qualified production of steel, stainless steel, aluminum, brass and other supported metals after sample cutting and process validation.
- Open Work Area: 600 × 600 mm cutting area for small sheets, precision parts and space-conscious production cells.
- Power Options: 1500 W and 2000 W sources can be evaluated according to material, thickness, assist gas and required cycle time.
- Controlled Precision: Ball-screw drive, linear guides and servo motion support fine cutting; finished tolerance and edge quality depend on material, nesting and validated process settings.
- RAYTOOLS Control: RAYTOOLS Control workflows support drawing import, nesting and cutting control; operator training and machine-specific setup remain required.
- Open Design:Without fully enclosed cabinet restriction, it realizes unrestricted feeding of materials. Components are easy to reach for troubleshooting and part replacement, reducing downtime. Stable laser output guarantees precise metal cutting.
- Serviceable Optical Path: Fiber delivery avoids external mirror alignment, while protective lenses, nozzles, focus calibration, gas delivery, extraction and chiller maintenance are still required.
Technical Specifications
| Model | FC6060-Vank Fiber Cutter |
| Laser Power | 1500 W / 2000 W |
| Cooling Type | Water Cooling |
| Z-axis Travel | Nominal 100 mm; confirm final cutting-head configuration |
| Max. Empty Running Speed (X/Y) | Up to 80,000 mm/min; motion and process dependent |
| Laser Head | RayTools or equivalent auto-focus head by configuration |
| Positioning Accuracy (X/Y) | Nominal ±0.01 mm; confirm by factory acceptance test |
| Repositioning Accuracy (X/Y) | Nominal ±0.005 mm; confirm by factory acceptance test |
| Guide Rail | HIWIN or equivalent linear guide by confirmed BOM |
| Fiber Laser Source Brand | MAX / Raycus / IPG or other approved source by quotation |
| Control System | RAYTOOLS Control version and controller by configuration |
| Cooling System | Industrial Water Chiller |
| Voltage & Frequency | AC 380 V, 50/60 Hz, three-phase; regional options by quotation |
| Applicable Materials | Carbon steel, stainless steel, aluminum, brass, copper and other supported metals after application review |
| Supported Formats | DXF and other controller-supported vector formats; confirm the software import workflow |
| Package | Export packing specification confirmed with the order |
| Transmission metho | Lead screw drive |
Laser Cutting Thickness Reference (Stable / Limit)
| Material | 1500W | 2000W |
| Carbon Steel | 6 / 8 | 8 / 12 |
| Stainless Steel | 3 / 4 | 4 / 6 |
| Aluminum | 2 / 3 | 3 / 5 |
| Brass | 1 / 2 | 2 / 3 |
How to Read the Cutting Reference
Stable / limit format: The first value is a production-oriented reference and the second is a slower limit-cut reference. Neither value is a guaranteed acceptance thickness without a sample test.
Limit cutting: Limit values may involve slow speed, increased dross or reduced edge quality and are not intended to represent routine mass-production capacity.
Reflective metals: Aluminum, brass and copper require a source, cutting head and process approved for back-reflection risk.
Process variables: Actual capacity depends on source model, beam quality, assist gas, pressure, nozzle, focus, alloy, surface condition and acceptance criteria.
Supported Materials

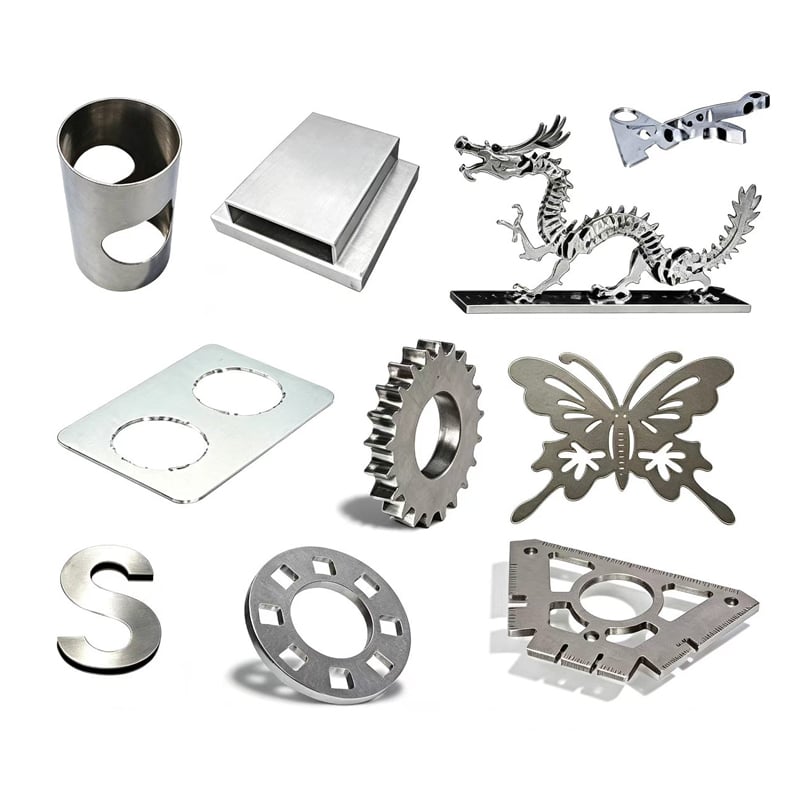

Typical applications include carbon steel, stainless steel, aluminum alloys, galvanized sheet, brass, copper, titanium and selected precious-metal sheets. Reflective and high-value materials require configuration review and representative sample approval.
Typical Industries

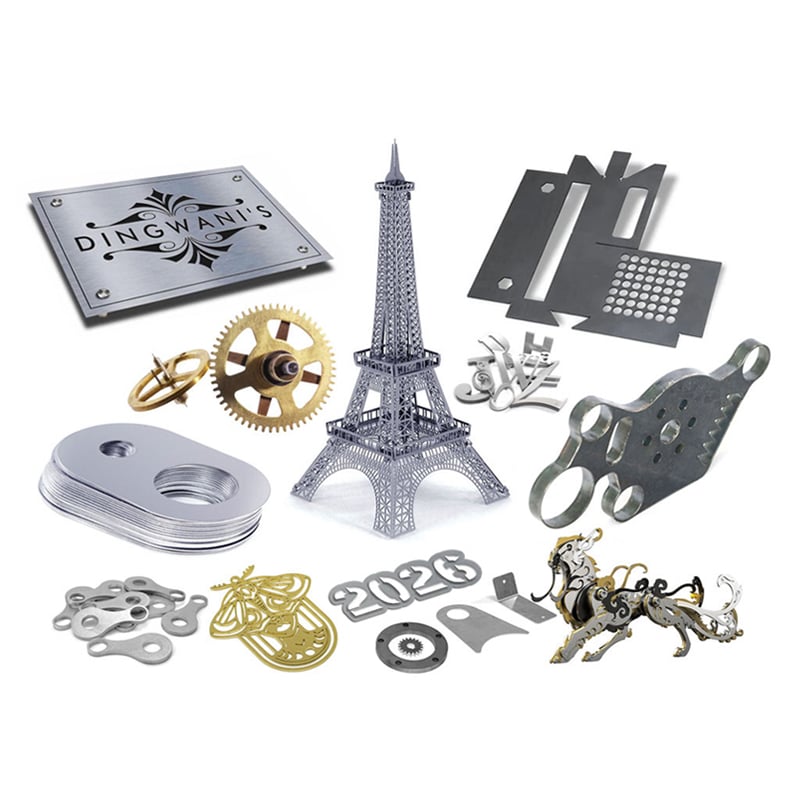

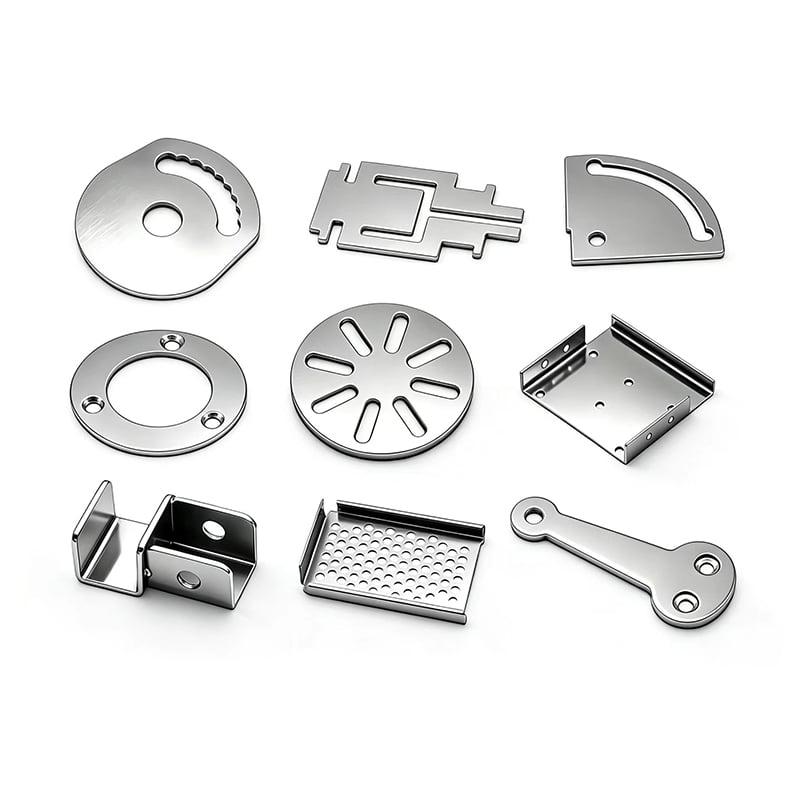

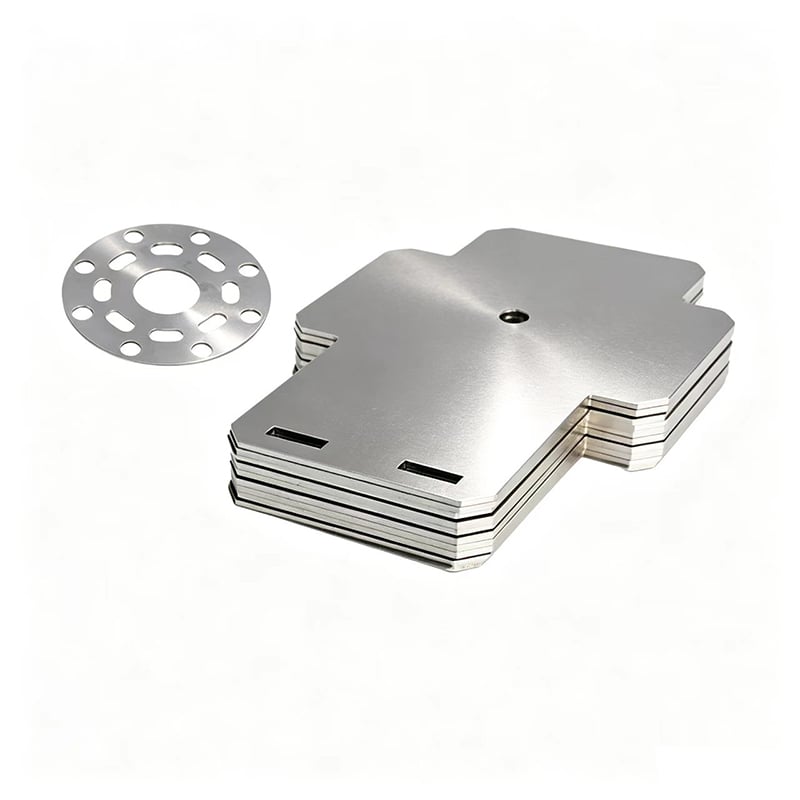

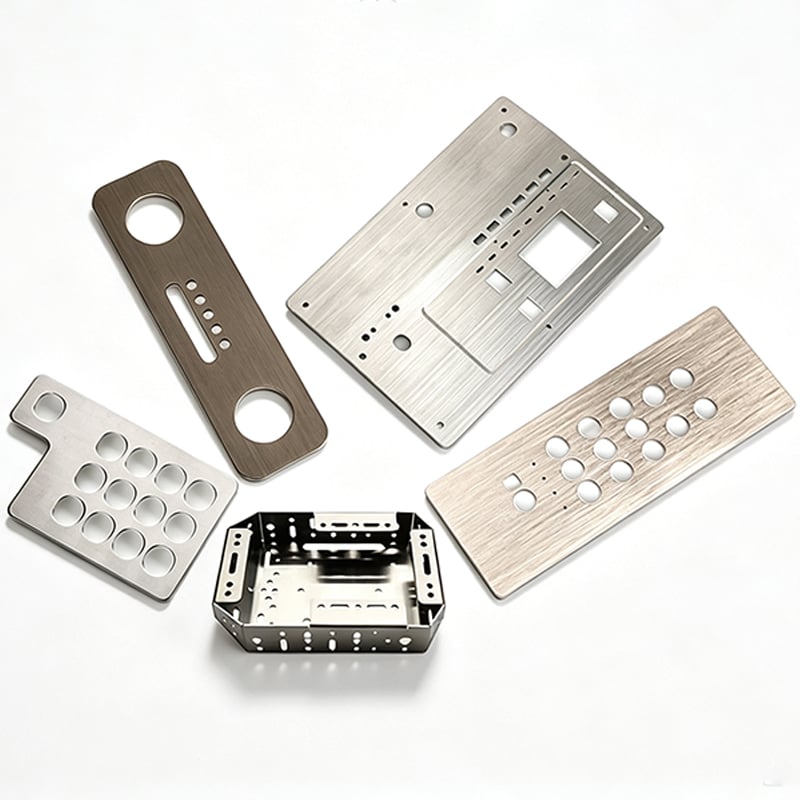

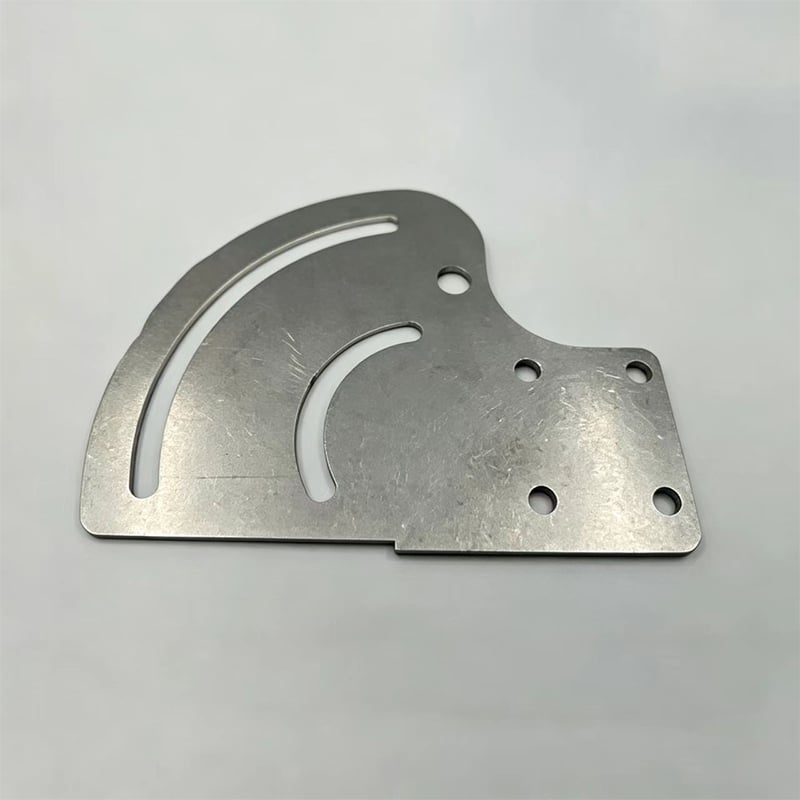

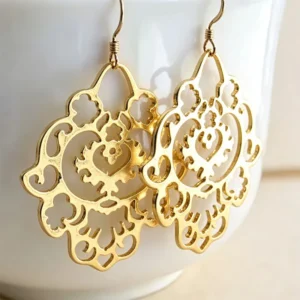

Applications include jewelry and precious-metal parts, precision instruments, electrical components, nameplates, gifts, signs, small automotive parts and other small-format sheet-metal workflows.
VankCut-6060FL Small-Format Fiber Laser Cutter
The 6060FL combines a compact 600 × 600 mm work area with open fiber-laser cutting for qualified small metal parts. Select source power, cutting head, gas system and acceptance criteria from real materials and drawings.

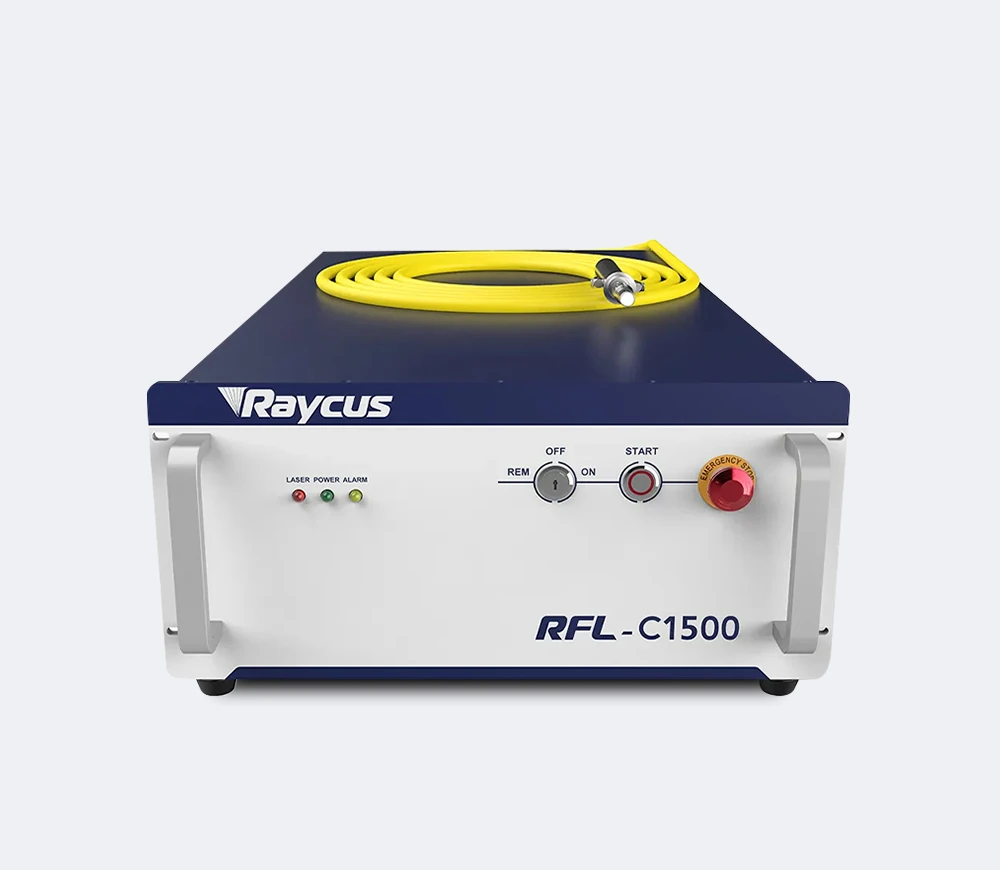

Selectable Fiber Laser Source
- Source efficiency, beam quality and electrical requirements depend on the exact model
- Altitude and environmental limits follow the selected source datasheet
- Cutting performance must be validated with the target alloy and thickness
- Output-fiber length and interface are fixed by the confirmed machine BOM
- Routine source maintenance is limited, but cooling, power quality and connectors require inspection
- Pulse and modulation limits depend on the selected source and controller

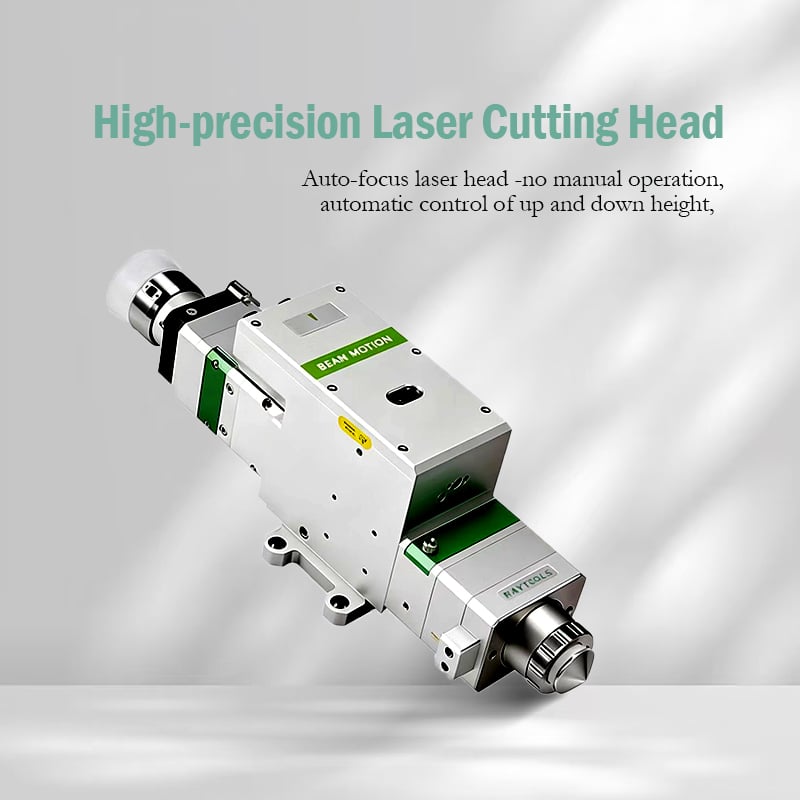

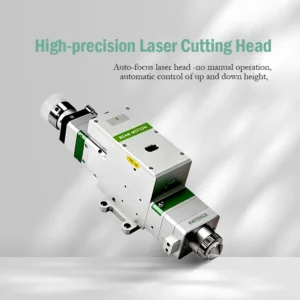

Auto-Focus Fiber Laser Cutting Head
The auto-focus cutting head supports programmed focus adjustment and capacitive height control. Brand, optical rating, protective-lens specification and suitability for reflective metals must match the selected laser source.

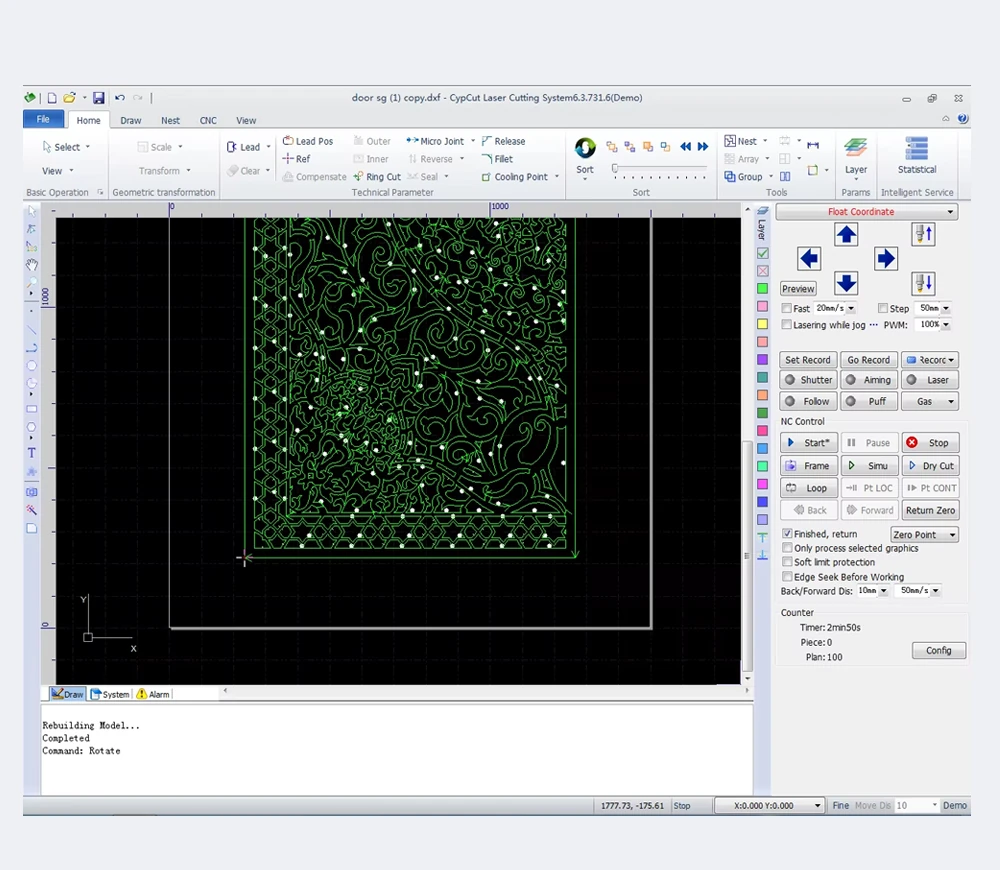

RAYTOOLS Control Workflow
The controller supports drawing import, nesting, lead-ins, edge finding and cutting-path management. Available functions depend on the installed RAYTOOLS controller and software version; training and machine-specific parameter setup are required.

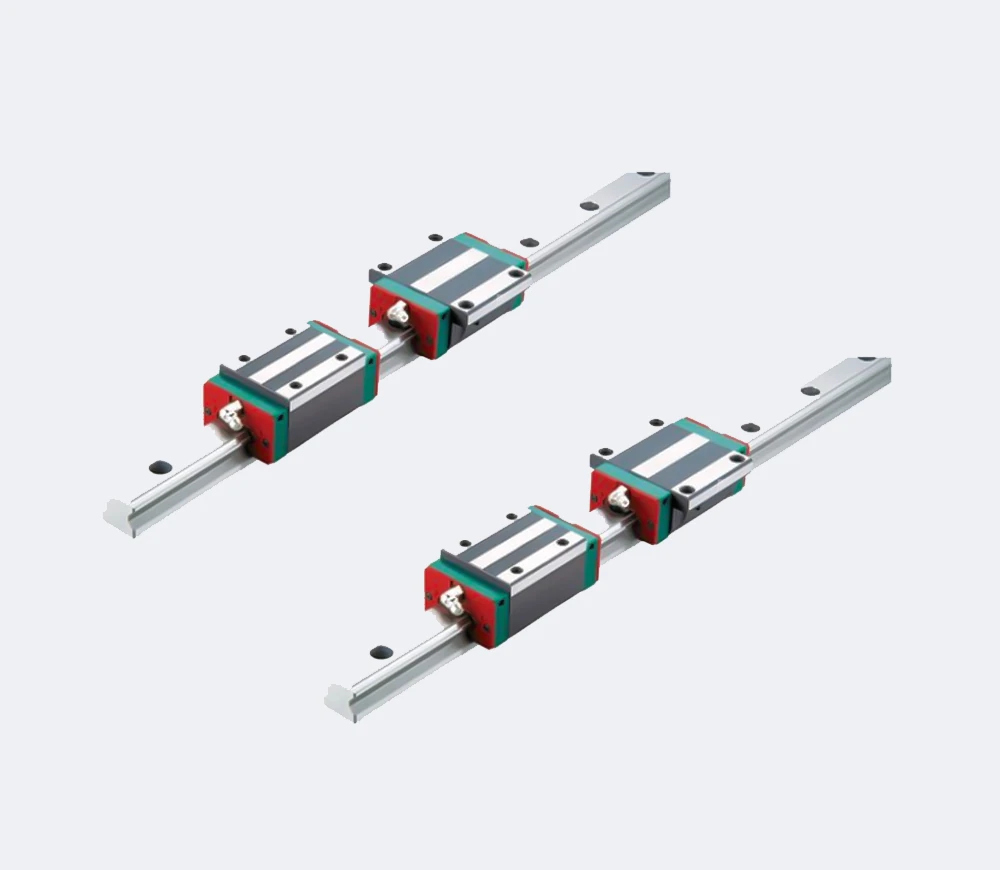

Precision Linear Guides
Linear guides and ball-screw motion support smooth, repeatable travel. Guide brand, preload, lubrication and alignment are confirmed through the final BOM and factory acceptance checks.
Industrial Water Chiller
A matched industrial chiller regulates the laser source and cutting-head cooling circuits. Temperature stability, cooling capacity and electrical specification depend on the selected 1500 W-2000 W configuration; follow the supplied maintenance schedule.

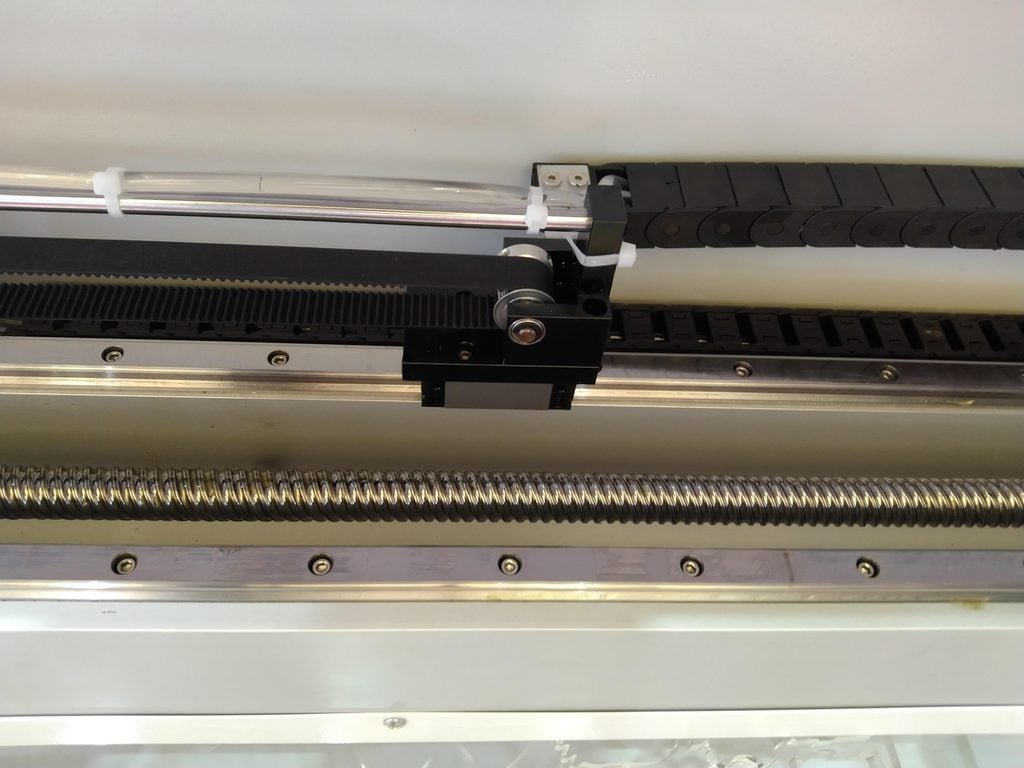

Ball Screw transmission
Compared with belt drive, it provides higher engraving and cutting precision; compared with GEAR RACK rack drive, it provides higher precision, but rack-drive machines are faster. BALL SCREW drive is mainly used for cutting materials over 20 mm thick and for laser cutting of greater thicknesses, resulting in smoother cutting edges.
