Application and model selection
The downloadable configuration is a 3 kW MAX system with a 240 mm chuck, BLT310-series head and 3 m material collector. A 6 or 12 kW request, automated loading or bevel cutting must be quoted as a separate matched configuration. Do not apply the weight, motion or utility data of the 3 kW example to every version.
Configuration and specifications
| Parameter | Product configuration |
|---|---|
| Model / format | VK-6024 |
| Tube processing length | 6000 mm |
| Round tube range | 10–240 mm |
| Laser power options | 3 kW documented; other powers by confirmed configuration |

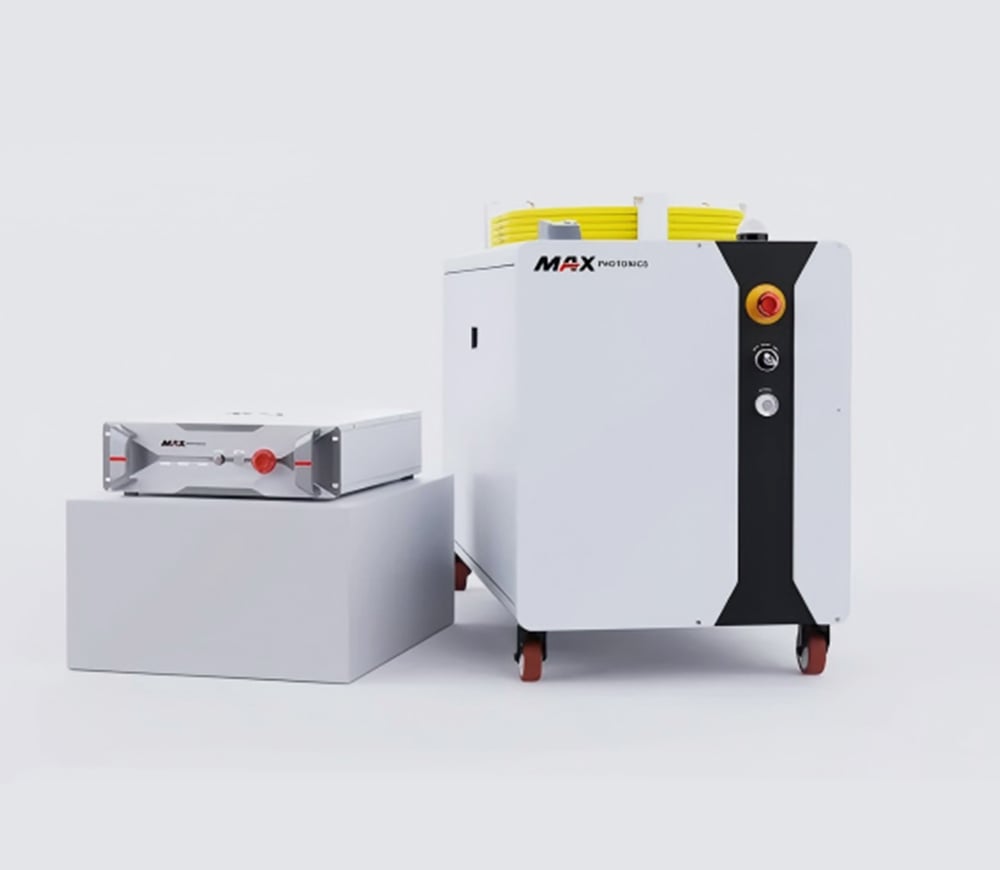

| Laser source | MAX 3000 W in the documented example |
| Controller / software | Tube-cutting control; exact FSCUT/TubePro package confirmed |

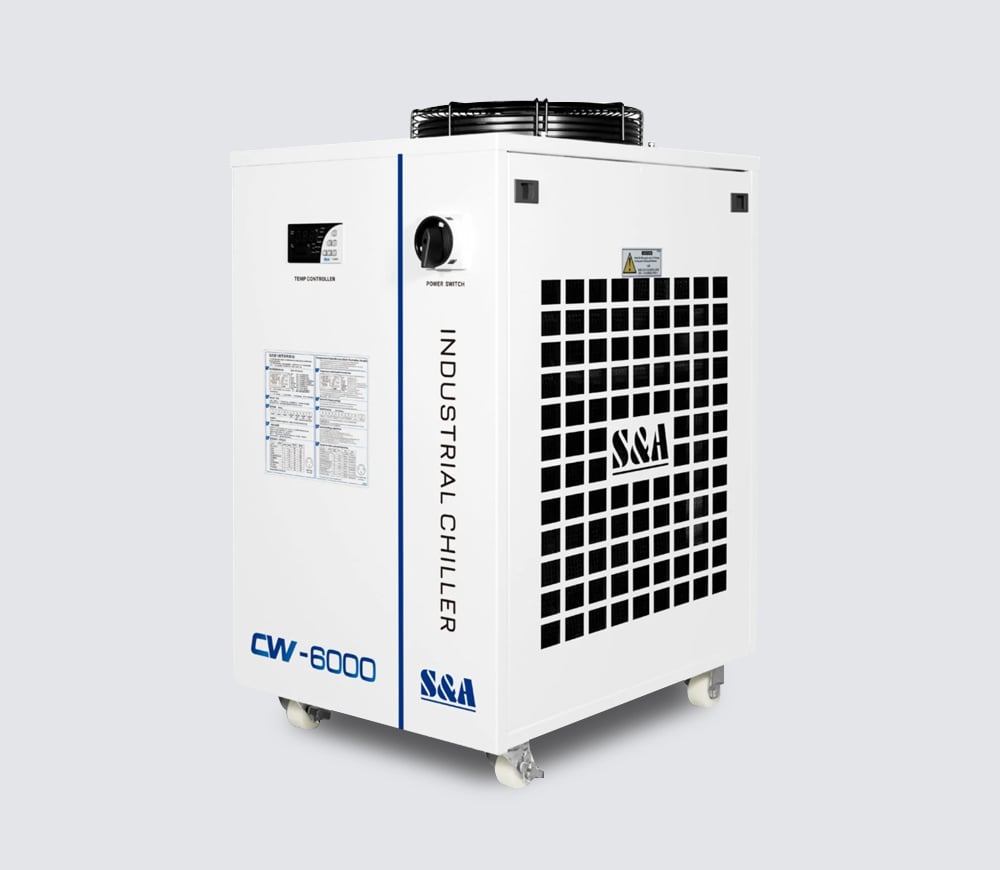

| Cooling | Industrial water chiller matched to source power |
The values below identify this product and its listed options. The selected source, optics, controller, accessories and site utilities must be named in the quotation. Motion speed and positioning figures do not establish finished-part tolerance or production throughput.
Materials and process limits

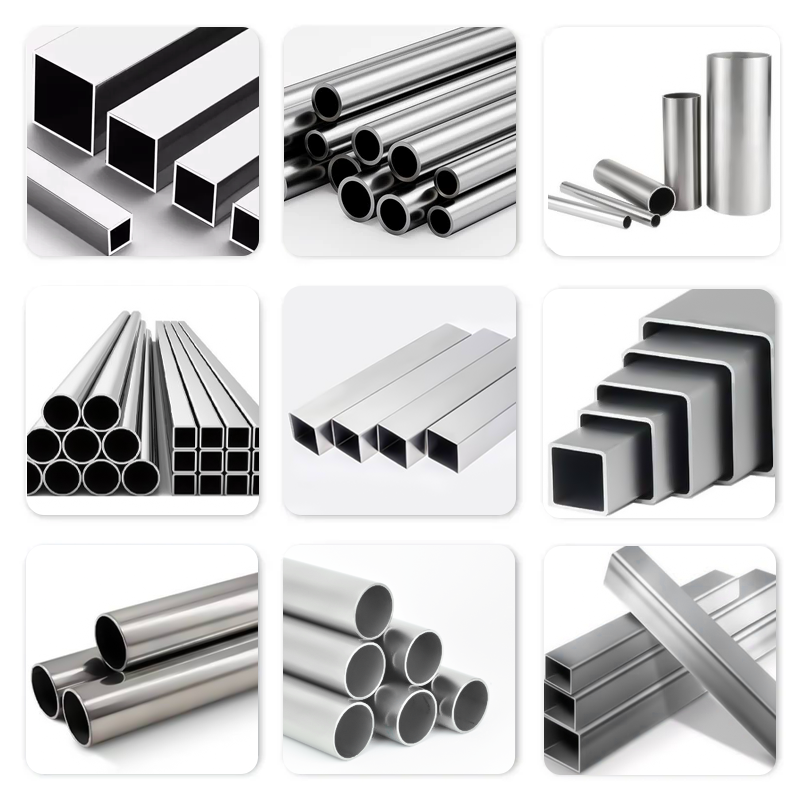

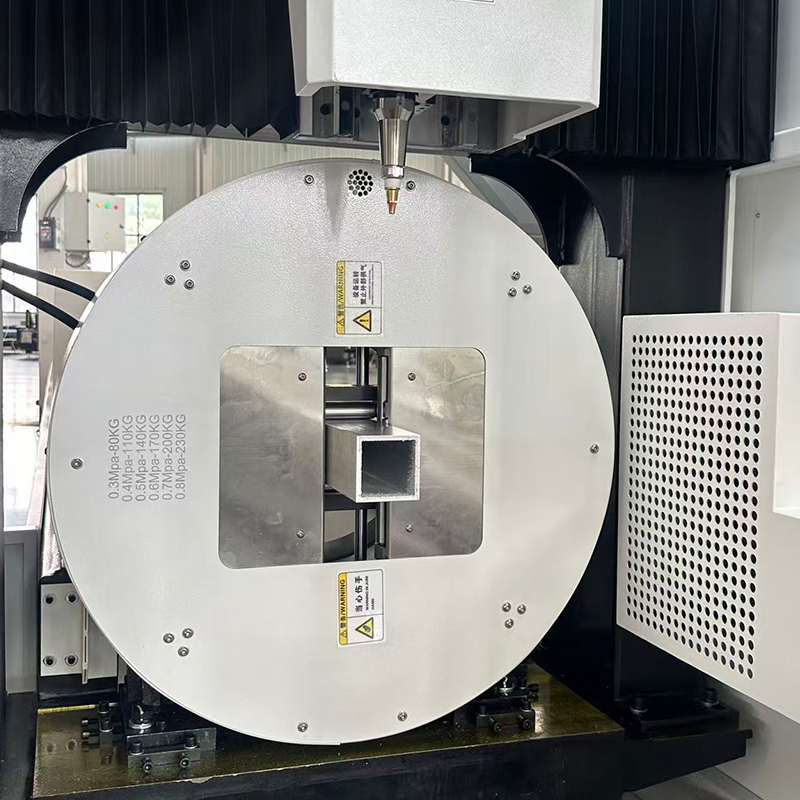

The tube platform is intended for qualified round, square and rectangular steel tubes and selected profiles. Aluminum, brass and other alloys require source and process approval. Usable capacity depends on the chuck, support, wall thickness, weight, profile shape and remaining tail length; nominal chuck diameter is not the capacity for every profile.
Production workflow

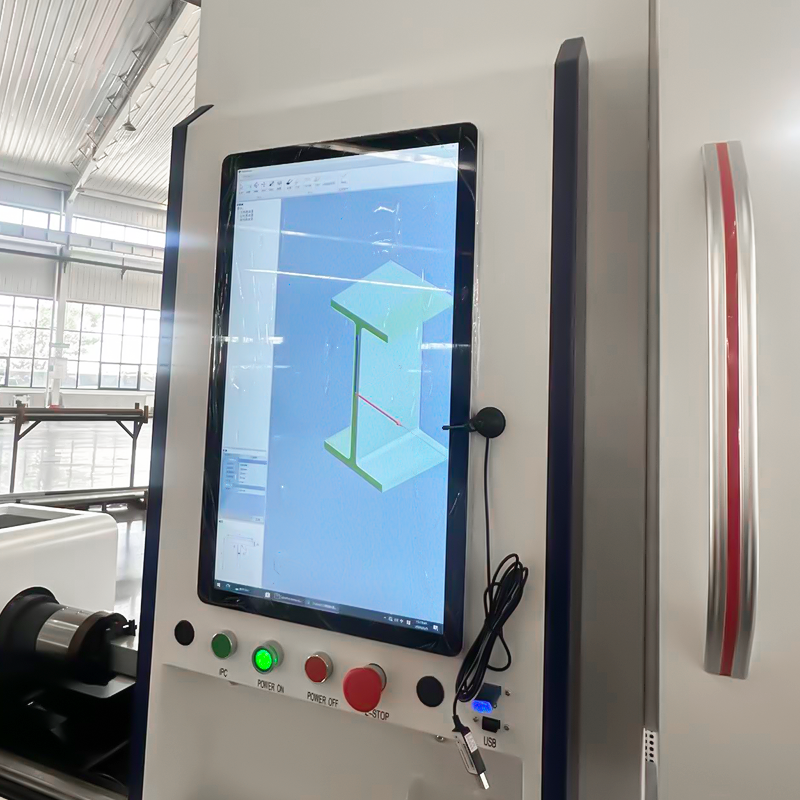

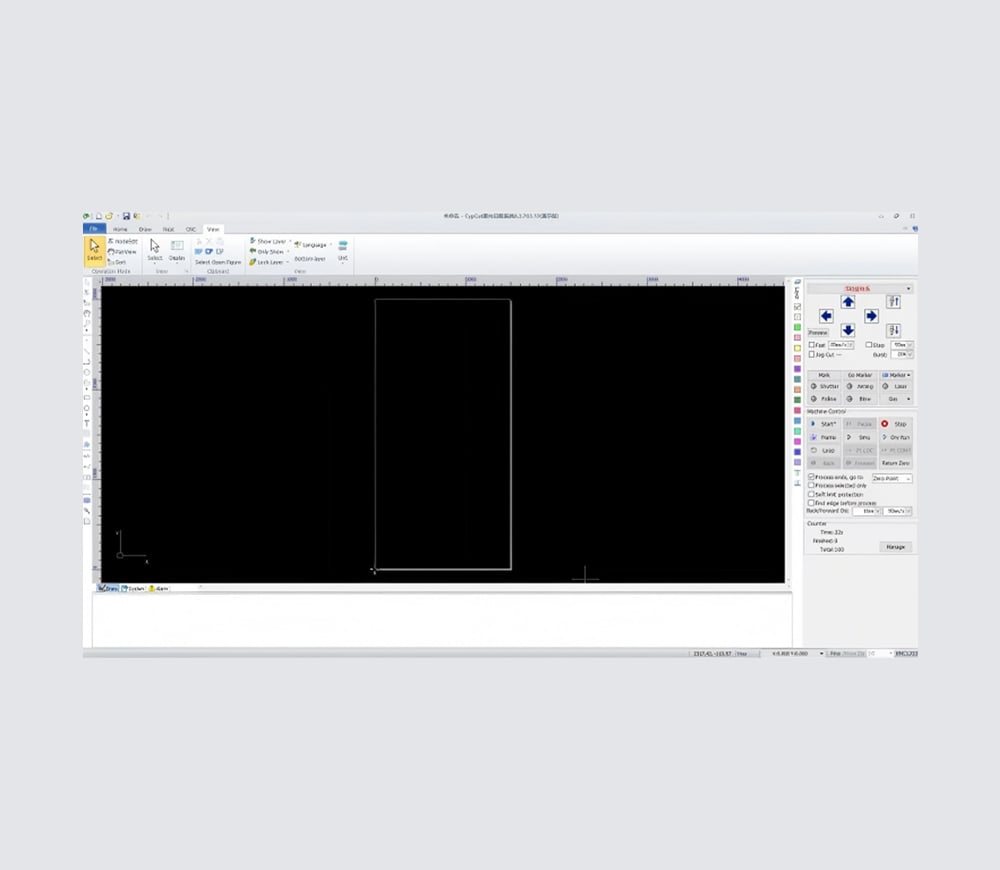

Use the supplied tube-cutting controller and TubePro-compatible workflow to import profiles, position the tube and plan cuts. Confirm the controller model, nesting license, chuck sequence and material supports. Bevel cutting requires a dedicated tilting head or axis and compatible control configuration; it is not assumed from a 2D tube-cutting package.
Options to specify

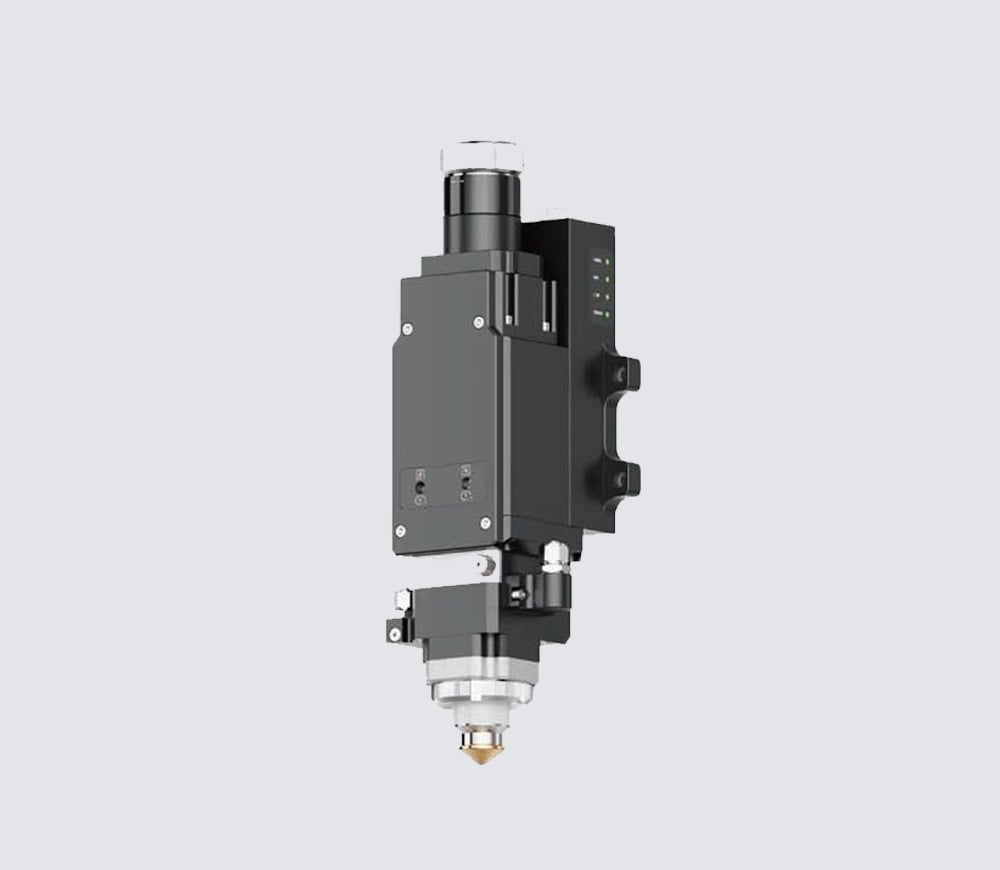

Match the source, cutting head, gas system, chiller and extraction to the selected power. Check chuck capacity, tube supports, loading method, tail length and unloading space. Confirm bevel hardware separately. Nozzles, protective windows, gas, filters, coolant and lubrication are operating costs.
Plan suitable guarding, interlocks, emergency stops, extraction and operator training for the supplied laser system. The finished machine classification must be verified; an enclosure alone is not proof of Class 1 compliance. Follow the supplied operating and maintenance instructions.
Sample test and acceptance
Approve a representative sample and the written configuration before ordering. Record the material, source, settings, lens or nozzle, fixture, appearance, dimensions and complete cycle time. Keep those results as the production acceptance reference.
Questions before ordering
What cutting thickness and tolerance can I rely on?
Agree a test on the actual alloy, thickness and drawing. Measure critical dimensions, edge roughness, dross, heat tint and cycle time. Axis positioning accuracy is not finished-part tolerance. Generic power-versus-thickness charts cannot establish production capability without the gas, head, source and quality conditions used for the test.
Installation, service and documentation
Ask Vank Laser to include the machine layout, electrical requirements, supplied software, operating instructions, maintenance schedule and recommended spare parts in the technical proposal. Agree commissioning, operator training, support language, warranty coverage and service responsibilities before shipment. Request conformity documents for the actual machine and destination.
Request a sample test and quotation
Send the alloy, tube cross-section, outside dimensions, wall thickness, raw length, weight, part drawing, bevel requirement, tail-length limit and daily volume.
Send the destination country, installation voltage and required delivery scope with your inquiry. Ask for sample photos or video, measured results and a configuration-specific quotation.
Request a sample test and configuration quote
Compare related machines

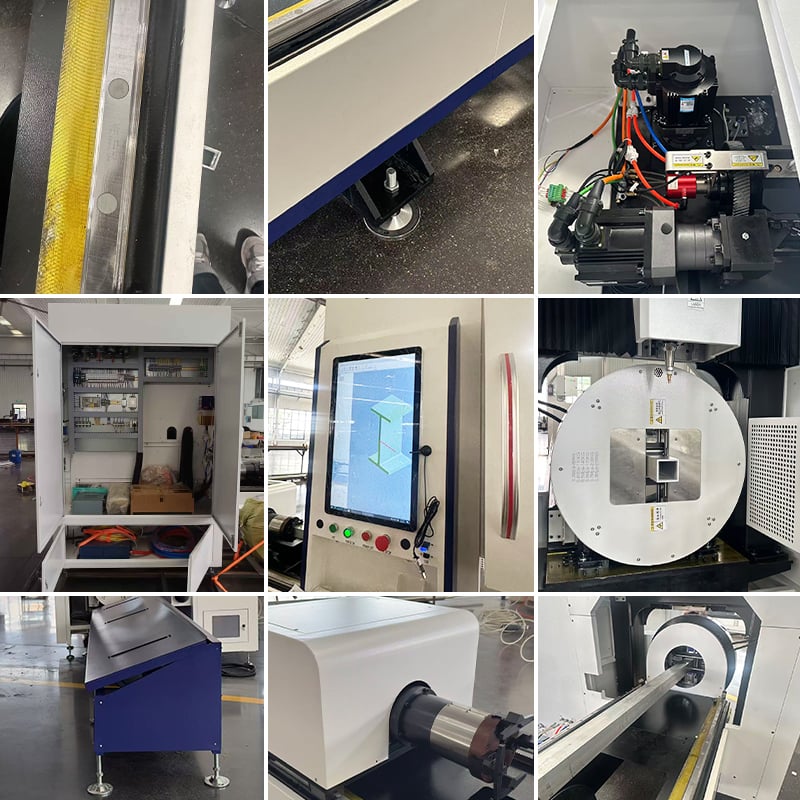

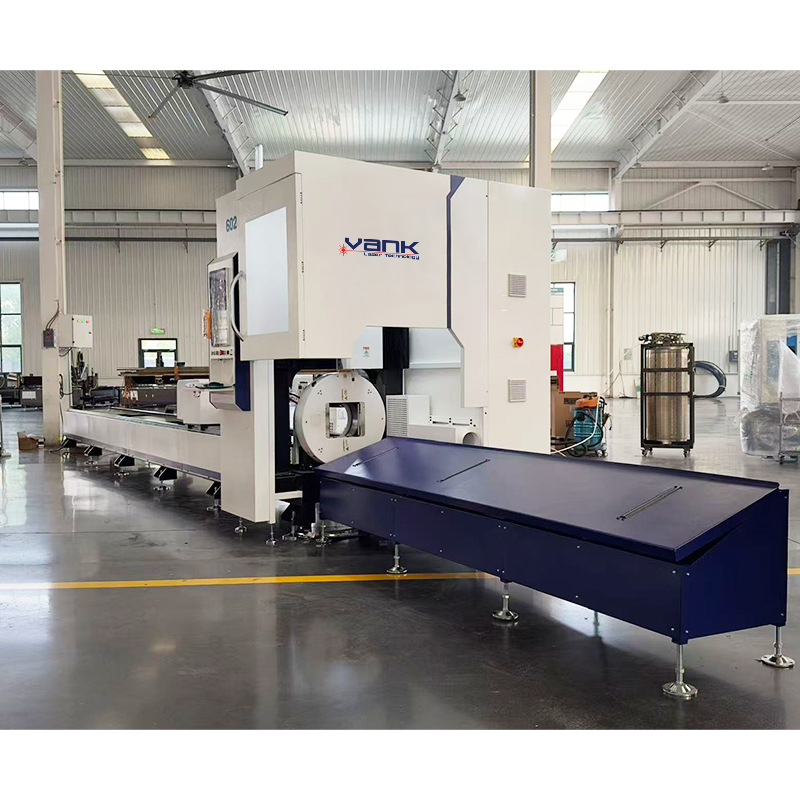

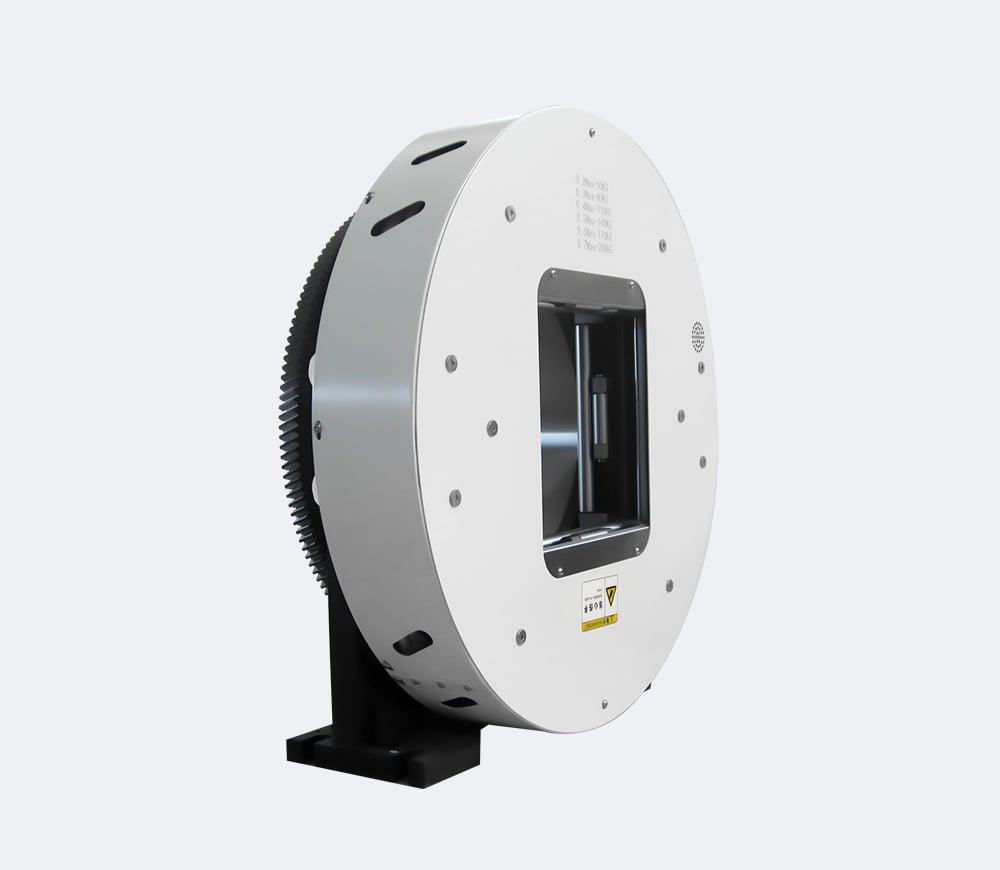

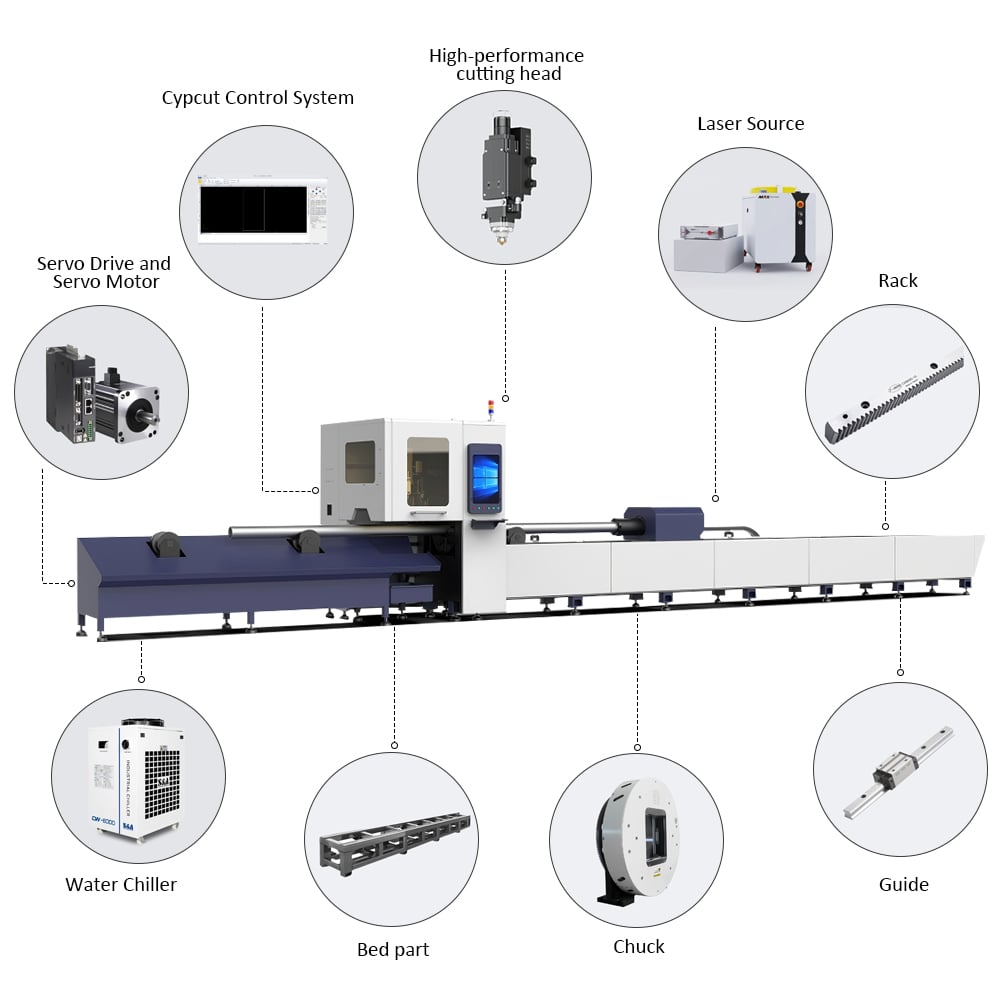

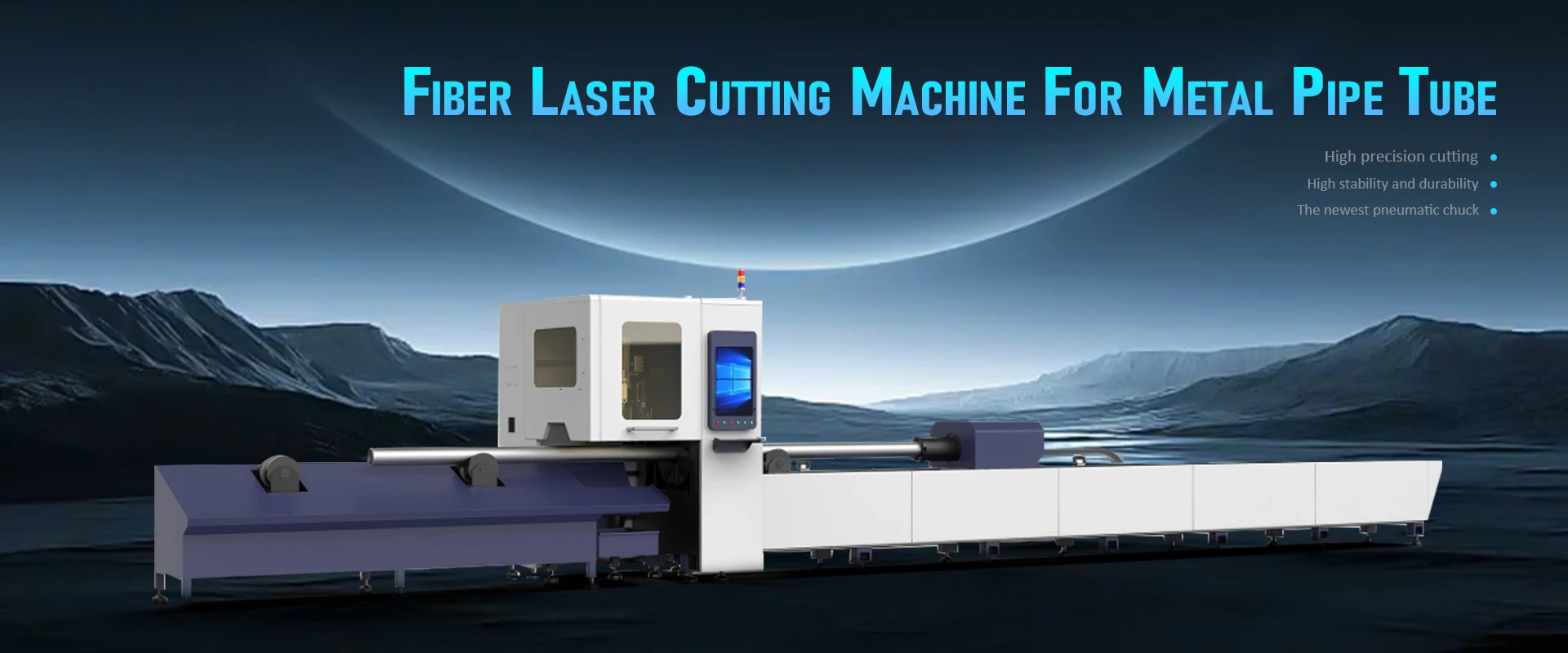

Machine and component photos

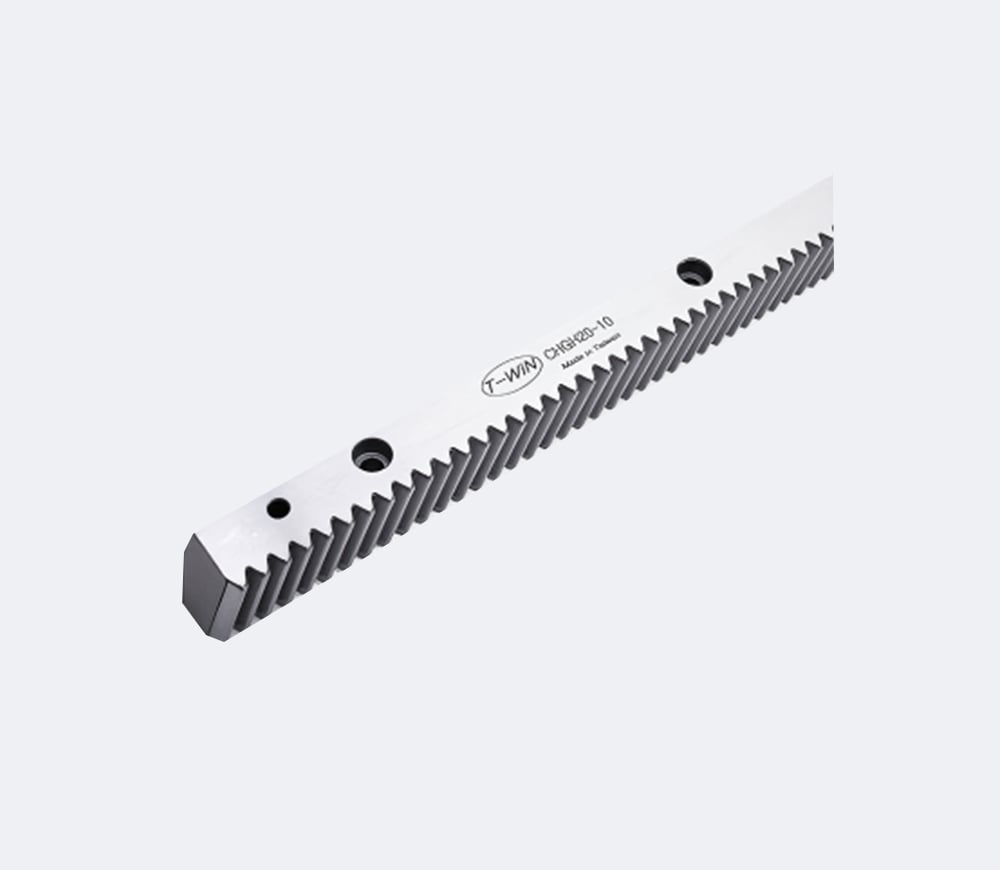

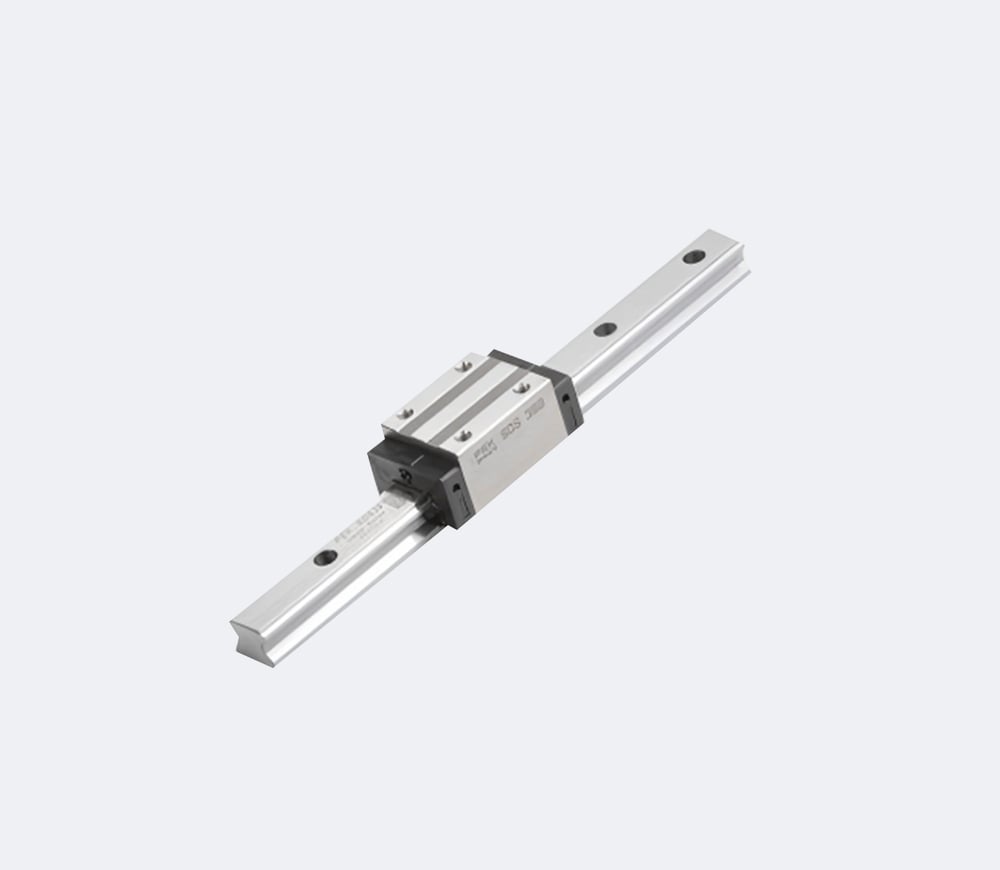

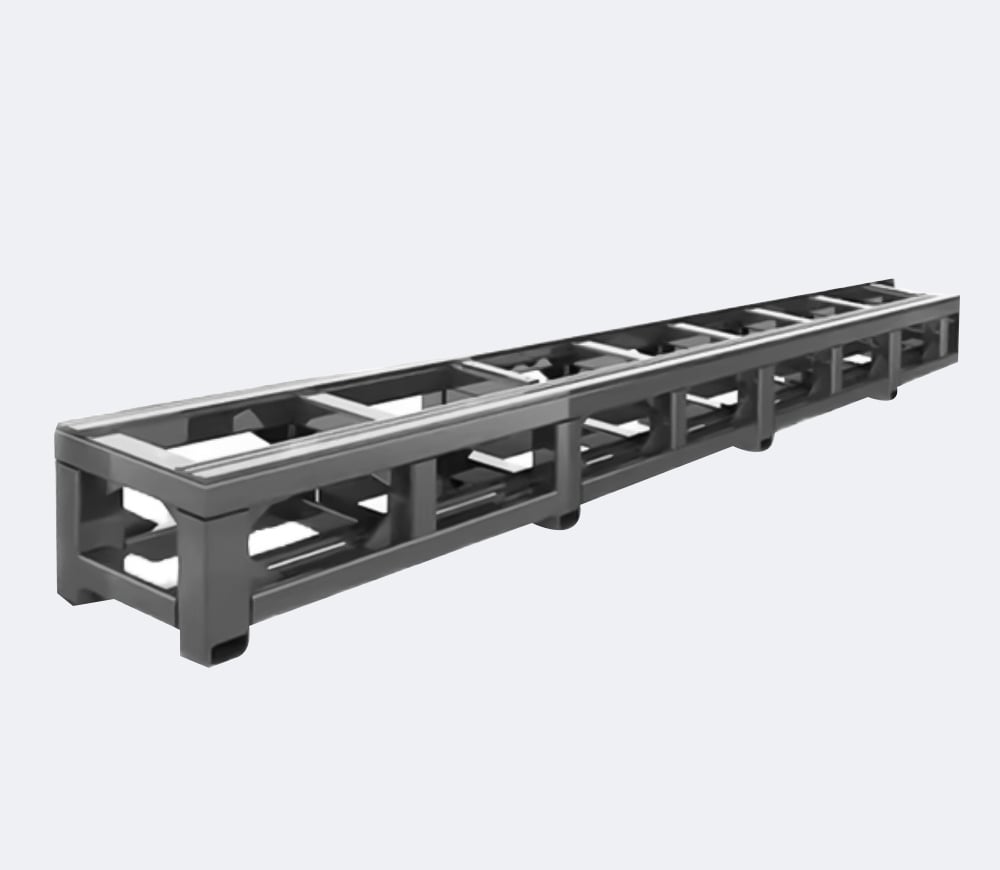

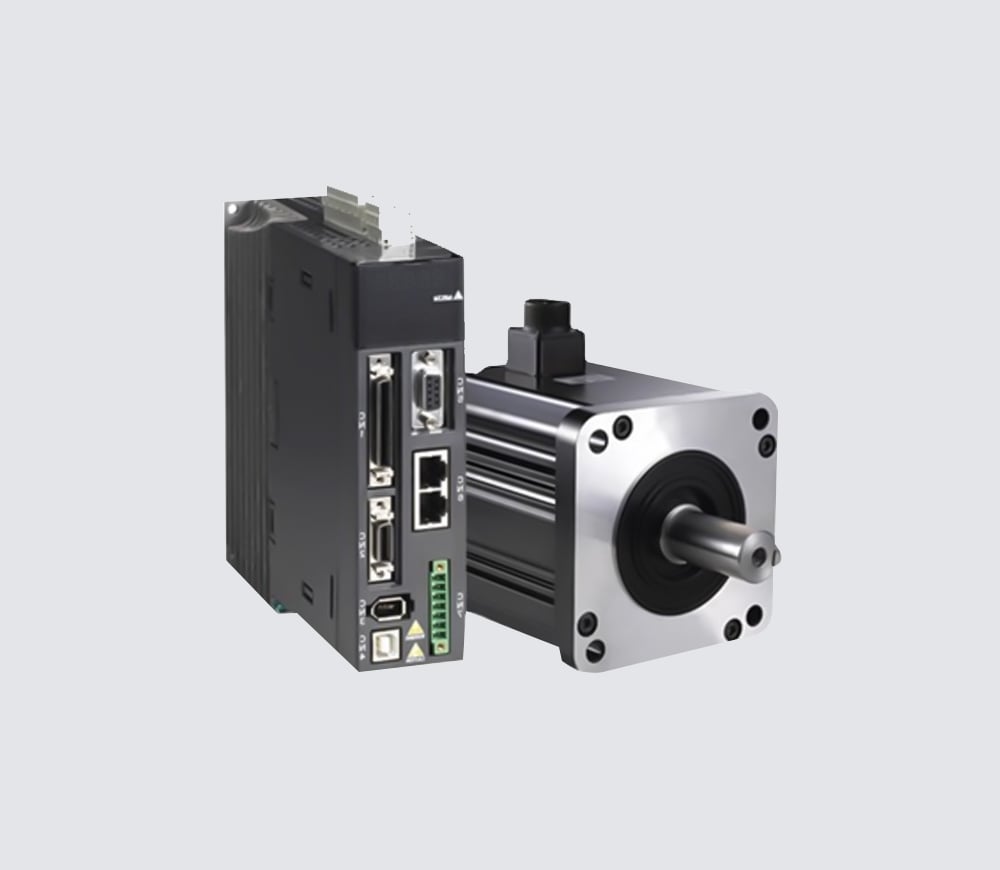

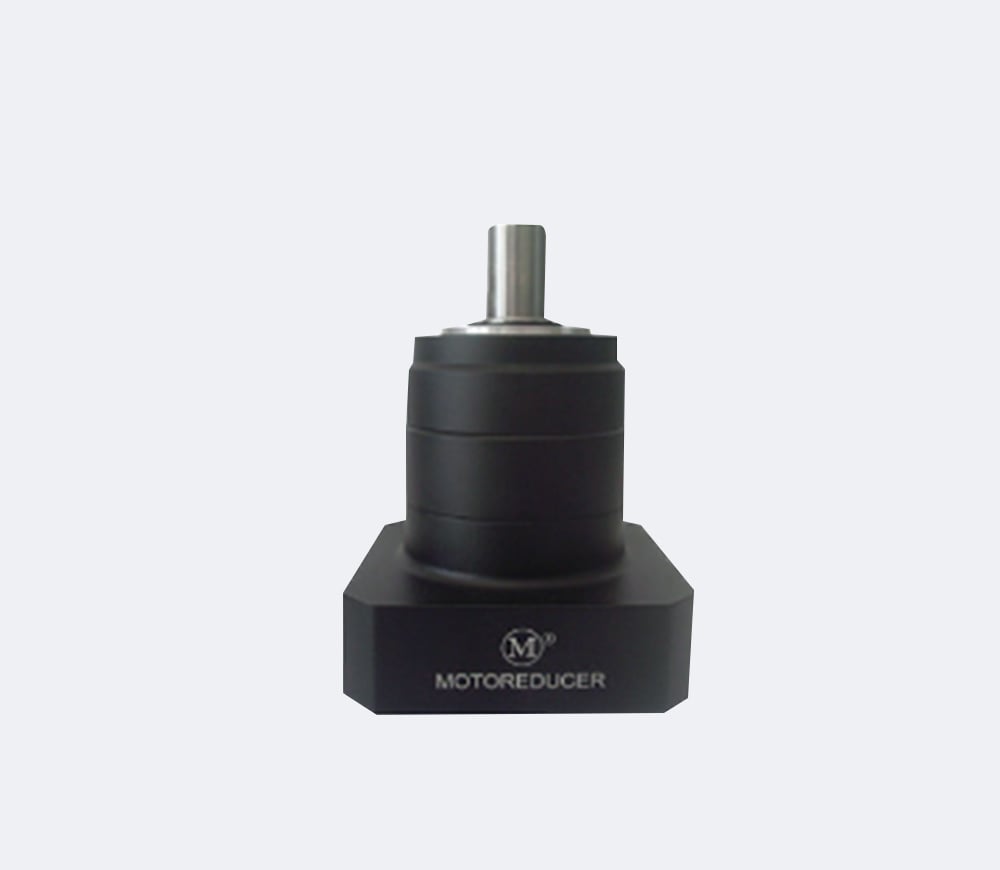

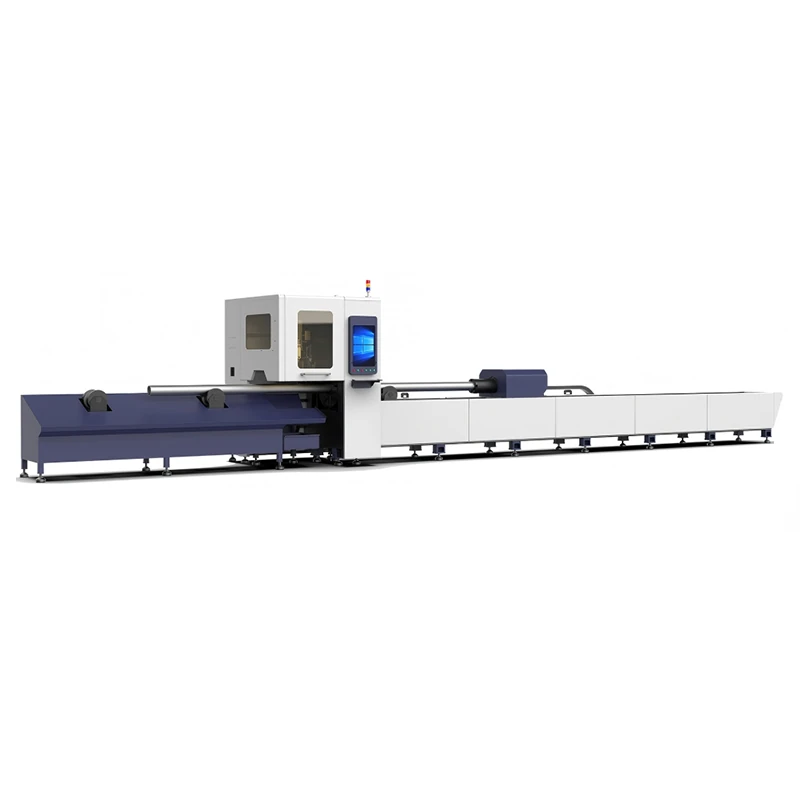

Photos illustrate the product or component family. Included brands, accessories and configuration are defined in the approved quotation.
