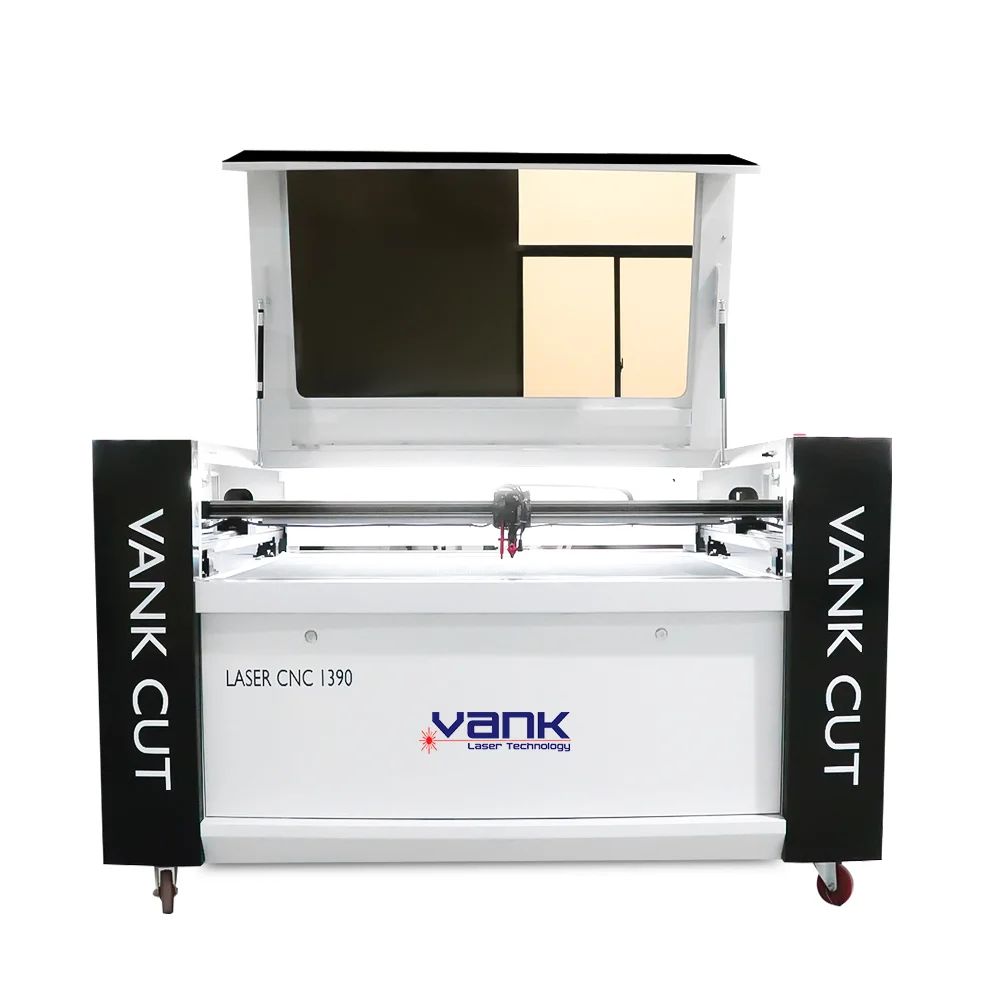

1390 CO2 Laser for Wood, Acrylic and Signs
The 1390 CO2 laser engraving and cutting machine provides a 1300 × 900 mm bed for signs, models, packaging, wood crafts and short-run production. Configure the laser source, worktable, cooling, air assist and extraction around qualified materials and factory sample results.
- 80/100/130/150 W standard source classes; higher output requires an engineered configuration
- 1300 × 900 mm nominal working area
- Honeycomb and knife-blade worktable options
- Ruida RD6445-class DSP controller
- Red-light position preview and autofocus options
- Emergency stop and safety controls confirmed in the final configuration
- LightBurn Pro support when the exact controller and firmware are compatible
- Water chiller, air assist and source-capture extraction matched to the application
Power Options for Engraving and Cutting
Choose an 80, 100, 130 or 150 W standard source according to the target material, thickness, edge quality and production rate. Higher-output versions require matched chassis, optics, cooling and electrical engineering in the final quotation.
True 1300 × 900 mm Work Area
The 1300 × 900 mm bed accommodates larger sign panels, model sheets, packaging blanks and batch layouts than the 9060 platform while retaining access from a conventional workshop footprint.
Belt Drive and Linear-Rail Motion
Linear guide rails and a protected belt-drive motion system support repeatable engraving and cutting across the 1300 × 900 mm bed. Settings, focus, optics and material flatness determine the final result.
Matched Water Cooling
A source-matched industrial chiller maintains the tube within its specified temperature range. Flow protection, clean coolant and clear ventilation paths are required for reliable operation.
Repeatable Surface Detail
A clean optical path, correct focal setup and tuned speed, power and air assist help reproduce detailed graphics and controlled cut edges. A factory sample establishes the achievable result.

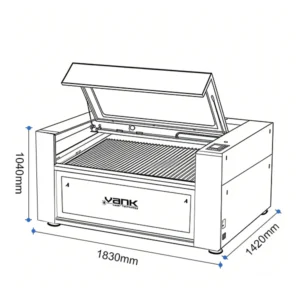

Production-Oriented 1390 Footprint

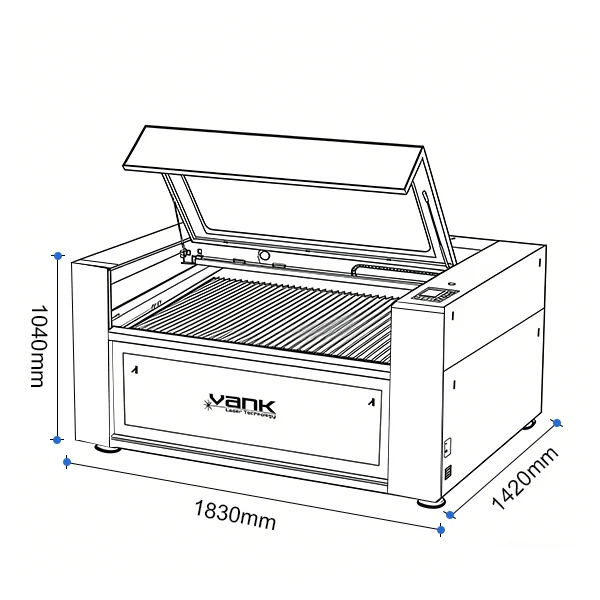

Confirm machine dimensions, door clearance, floor loading, exhaust routing, chiller space and service access before delivery. Moving and installation require the approved lifting and leveling procedure.
1390 CO2 Laser Machine Specifications
| Specification | 1390 Configuration |
|---|---|
| Model | VankCut-1390 |
| Nominal work area | 1300 × 900 mm |
| Primary process | Engraving and cutting qualified nonmetal materials |
| Laser source | Sealed-glass CO2 laser tube |
| Standard output options | 80/100/130/150 W class; final source by quotation and sample test |
| Higher-output option | Available only with confirmed chassis, optics, cooling, extraction and electrical engineering |
| Nominal wavelength | 10.6 µm |
| Motion system | XY belt drive with linear guide rails |
| Controller | Ruida RD6445-class DSP; exact board and firmware confirmed per order |
| Software workflow | RDWorks or compatible workflow; LightBurn Pro only with supported controller and firmware |
| Typical file workflow | Common vector and raster files such as AI, DXF, PLT, BMP and JPG, subject to software import support |
| Worktable | Honeycomb or knife-blade; motorized Z option by configuration |
| Positioning and focus | Red-light preview and autofocus options; final availability by quotation |
| Cooling | Source-matched industrial water chiller with flow and temperature protection |
| Air assist and extraction | Required; airflow and filtration selected for material and process |
| Electrical supply | Configured for destination voltage and frequency; dedicated grounded circuit required |
| Laser safety | Class 4 laser source; finished-system classification, enclosure and interlocks confirmed for destination |
| Acceptance basis | Approved customer file, material sample, edge or mark quality, cycle time and final configuration |
Material and Process Qualification Guide
| Material or process | 1390 CO2 laser guidance |
|---|---|
| Cast or extruded acrylic | Engraving and cutting are application-dependent; qualify thickness, edge quality, flame control and extraction with the actual sheet. |
| Wood, plywood and MDF | Qualify species, density, adhesive and coating; smoke, char and achievable thickness vary by lot. |
| Paper and cardboard | Suitable after testing; use low heat input, continuous supervision and strong fire controls. |
| Natural leather | Process only identified formulations after SDS and fume review; chromium-containing or unknown leather requires written hazard approval. |
| Textiles | Test the exact fiber, dye, coating and backing; do not process halogenated or unidentified blends. |
| Laser-safe stamp rubber | Use only material supplied and documented for laser processing with effective source-capture extraction. |
| Anodized or coated metal | Surface marking of a qualified coating may be possible; this standard 1390 configuration does not cut bare metal. |
| Glass, stone and ceramic | Limited to qualified surface marking; test for chipping, cracking, dust and finish variation. |
| Bare metal cutting | Not supported on the standard 1390 nonmetal platform; select a fiber or purpose-built hybrid system. |
| Prohibited or unidentified materials | Do not process PVC, vinyl, PTFE, other halogenated materials, epoxy or phenolic laminates, unknown synthetic leather, rubber, resins, plastics or composites. |
Final settings and capability are established with the customer’s actual file and material sample.
Qualified Materials
Typical candidates include approved acrylic, wood, plywood, MDF, paper, cardboard, natural leather, laser-safe stamp rubber and selected textiles. Coated metal, glass, stone and ceramic are limited to qualified surface marking. Review the SDS and run an extraction and fire-risk test before production.
Applications and Industries
Common uses include acrylic signs, architectural models, packaging prototypes, engraved gifts, wood crafts, stamps, labels, approved textile components and short-run display parts. Regulated, load-bearing or safety-critical products require the customer’s own validation.

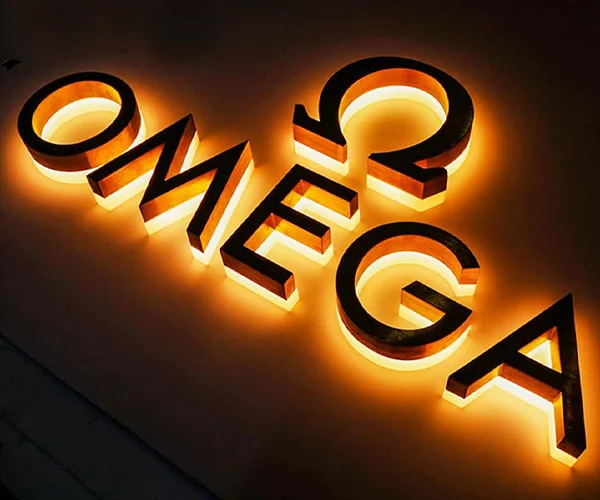

Laser-Cut Acrylic Lettering

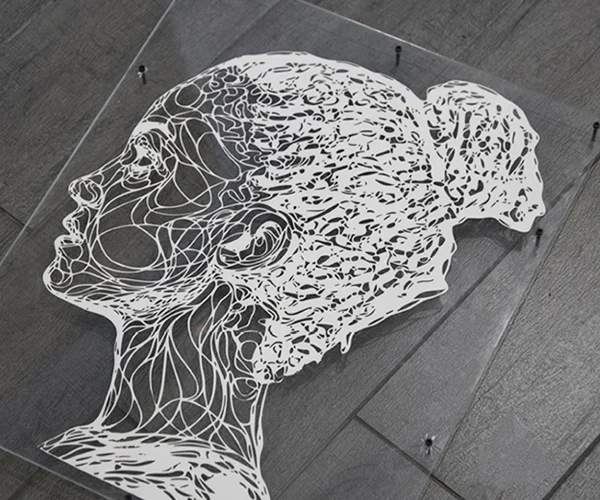

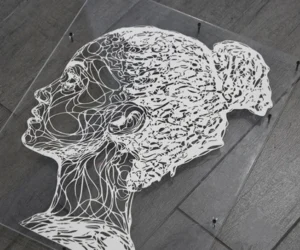

Laser-Cut Paper Pattern
Laser-Cut Plywood Box
Acrylic Sign Cutting
Stamp Material Engraving
Wood Sheet Cutting
Honeycomb and Knife-Blade Worktables
Select a honeycomb bed for flexible sheet support or knife blades for reduced back reflection and easier debris clearance.
Ruida-Compatible Control Workflow
Prepare vector and raster jobs in the software matched to the delivered controller. Common AI, DXF, PLT, BMP and JPG files can be imported subject to software support. Confirm the workflow before ordering and back up manufacturer settings before any controller change.

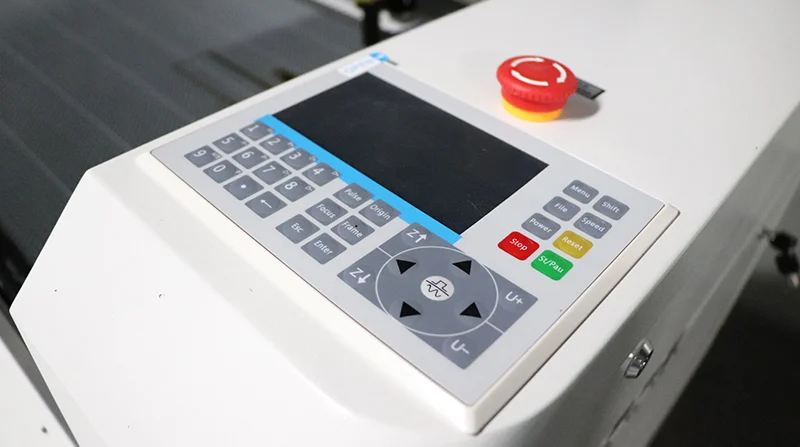

Ruida RD6445-Class Controller
The RD6445-class DSP panel provides local job selection, parameter control, framing and status display. LightBurn Pro supports Ruida DSP controllers, but compatibility depends on the exact board and firmware supplied with the machine.

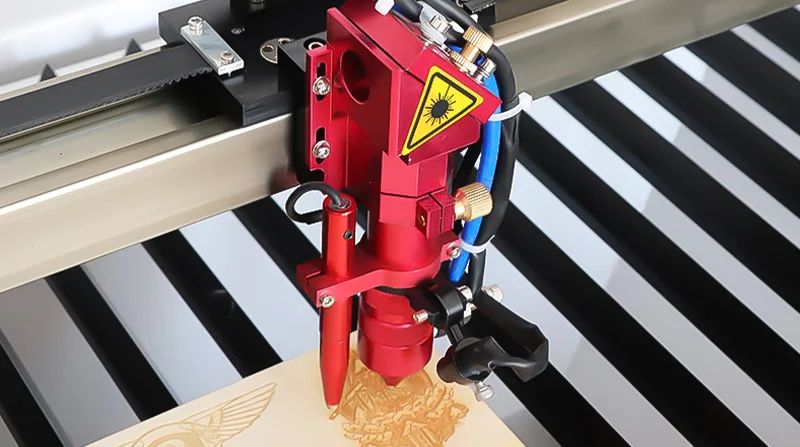

CO2 Engraving and Cutting Head
The focusing head, mirror path, nozzle and air assist are configured for qualified nonmetal engraving and cutting. Keep optics clean and verify focus after material or lens changes.
Sealed-Glass CO2 Laser Tube
Select the tube class from the required engraving detail, material, thickness and production rate. Tube brand, rated output, warranty, chiller and optics are confirmed in the final quotation.
Optional Equipment for the 1390 Platform
Optional equipment must match part height, weight, geometry and the delivered controller. Confirm usable Z travel, focus range, bed clearance and rotary-axis support before ordering.
- Motorized Z table: provides clearance for taller workpieces and approved rotary fixtures within the specified focus range.
- Red-light preview and autofocus: assist positioning and focus setup; always verify the job boundary and focal distance before processing.
- Roller rotary: supports selected cylindrical parts within confirmed diameter, length, mass, taper and surface limits.
- Chuck rotary: holds approved round parts when jaw range, load, balance, tail support and controller-axis compatibility are confirmed.
