Large-Format CO2 Laser Applications
1325 CO2 laser cutting machine is a high-performance laser processing equipment, specifically designed for engraving and cutting non-metallic materials. Featuring a 1300 x 2500 mm worktable, it utilizes a CO2 laser to cut and engrave materials by vaporizing or melting them with a high-energy laser beam. Controlled by a CNC system, it enables rapid cutting and engraving of text, patterns, photos, numbers, signs, or logos onto surfaces of materials such as acrylic, glass, rubber, MDF board, wood, fabric, paper, stone, plastic, leather, and textiles.
- 1325 CO2 laser engraving and cutting machine with a 1300×2500mm worktable, supporting processing of full-size 4×8 ft sheet materials (e.g., MDF, acrylic sheets).
- Extensive software compatibility: Supports CorelDraw/AutoCAD/Photoshop, and directly imports DXF/AI/JPG files.
- Features a laser tube with extremely high photoelectric conversion efficiency and low overall power consumption for significant energy savings.
- Consumable-free processing: No tools, ink, or other consumables required, resulting in minimal operating costs.
- Non-contact laser processing prevents physical damage and material deformation.
- Laser tube lifespan exceeds 10,000 hours with zero maintenance required.
- Advanced features include power-off resumption, offline operation, and auto-focus for simplified use.
- Eco-friendly laser processing generates no waste chips, compliant with EU CE/ROHS certifications.
- Equipped with S&A water cooler, using efficient water cooling circulation system, it can effectively remove the heat generated by the laser tube during operation and can work continuously for 24 hours.
- Laser tubes are available in various brands such as Yongli/Reci/EFR, and the power can be selected at will.
- The aluminum alloy blade workbench provides a flat material support surface to facilitate laser penetration and cutting, and effectively reduce reflection damage.
- The Y-axis uses a dual-motor drive design to effectively share the load pressure and achieve high-precision and high-speed output.
- The Ruida 6445S CNC system is simple to operate, with intuitive key operations and easy to use.
150-300 W CO2 Power Options
Choose 150, 180, 200 or 300 W according to the material, thickness, edge-quality target and production speed. Final capability depends on the laser tube, optics, focus, air assist and material formulation, so production samples should be tested before configuration is confirmed.
Large Sheet Working Areas
The H-1325 provides a 1300 x 2500 mm work area for full-size sheets. Larger 1500 x 3000 and 2000 x 3000 mm configurations are also available for signage, furniture, packaging and textile workflows.
Optional Motorized Lifting Table
A motorized Z-axis table creates clearance for taller parts and compatible rotary fixtures. For bottles, cups and other cylindrical workpieces, select a roller or chuck rotary based on the part diameter, weight and surface.
Matched Water-Cooling System
A correctly sized water chiller controls laser-tube temperature during operation. Chiller capacity, coolant specification and maintenance interval must match the selected tube and the operating environment.
Cutting and Engraving Uses
Use the machine for large acrylic signs, wood and MDF components, packaging prototypes, textile patterns, leather goods and other approved non-metal parts. Kerf, edge finish and achievable thickness vary by material, power and process settings.
Knife-Blade or Honeycomb Worktable
The knife-blade bed supports rigid sheets while minimizing back reflection and contact marks. A honeycomb bed is better suited to paper, fabric and small flexible parts. The recommended table depends on the main material mix.
Machine Specifications
| Model | VankCut-1325/VankCut-1530/VankCut-2030 |
|---|---|
| Laser Power | 300W / 500W |
| Working Area | 1300 x 2500 / 1500 x 3000 / 2000 x 3000 mm |
| Cooling Type | Water-cooled; chiller matched to tube power |
| Maximum Engraving Speed | Up to 600 mm/s |
| Maximum Cutting Speed | Up to 300 mm/s; material-dependent |
| Minimum Character Size | Chinese characters: 2 x 2 mm; Latin letters: 1 x 1 mm |
| Maximum Raster Resolution | Up to 4000 dpi |
| Working Table | Knife‑strip Working Table / Honeycomb Table (Optional) |
| Positioning Accuracy | ≤0.02 mm |
| Controller and Software | Ruida DSP; LightBurn or RDWorks workflow |
| Common File Formats | AI, PDF, SVG, DXF, PLT, PNG, JPG and BMP; software-dependent |
| Applicable Materials | Acrylic, wood, MDF, plywood, leather, fabric, rubber, paper, plastic, double‑color board, etc. |
| Layered Processing | Yes |
| Working Environment | 0-45 °C; 5-95% RH, non-condensing |
300W & 500W CO₂ Laser Cutter Material Cutting Thickness Parameters
| Cutting Material | Max Cutting Thickness (300W) / mm | Max Cutting Thickness (500W) / mm |
| Acrylic (PMMA) | 30 | 35 |
| Plywood / Wood Board | 25 | 30 |
| Solid Wood / Bamboo | 7 | 10 |
| MDF Board | 6 | 10 |
| Double Color Board | 2 | 3 |
| Leather / Synthetic Leather | 4 | 6 |
| Fabric / Textile / Felt | 6 | 8 |
| EVA / PE Foam | 10 | 15 |
| Paper / Cardboard | 4 | 5 |
| Non-metal Rubber | 5 | 8 |
| PP / PE Plastic Sheet | 3 | 5 |
| PET / PVC Film | 1.5 | 2 |
| Cork Material | 5 | 8 |
| PCB Non-metal Layer | 1 | 2 |
*Indicative shop-test values only, not guaranteed limits. Results vary with material density and formulation, tube condition, optics, focus, speed, air assist and pass count. Request a test with your actual sample. Process only identified, laser-safe materials; never cut PVC, vinyl or unknown halogen-containing plastics, and never leave a cutting job unattended.
Applications of 1325 Carbon Dioxide Laser Engraving and Cutting Machine
The 1325 CO2 laser engraving machine has a wide range of application materials and is suitable for various non-metallic materials: wood, acrylic (plexiglass), plastic (such as PVC, ABS), leather, cloth, rubber, paper, two-color board, MDF, plywood, bamboo products, shells, coconut shells, bones, horns, resin, ceramics, glass, crystal, stone, etc.
Application Products:
Photo frames, decorative panels, wooden puzzles, architectural models, ships, aviation models, wooden toys, wood carvings, advertising standard, acrylic crystal characters, display boards, lighting panels, packaging boxes, model parts, seals, molds, applique embroidery, belts, shoe uppers, bags, fabric toys, carpets, cardboard, corrugated boxes, gift boxes, greeting cards, paper-cuts, paper sculptures, handicrafts, souvenirs, bookmarks, ornaments, etc.
Acrylic Engraving
Paper Cutting
Wood Engraving
Acrylic Cutting
Leather Cutting
Wood Cutting

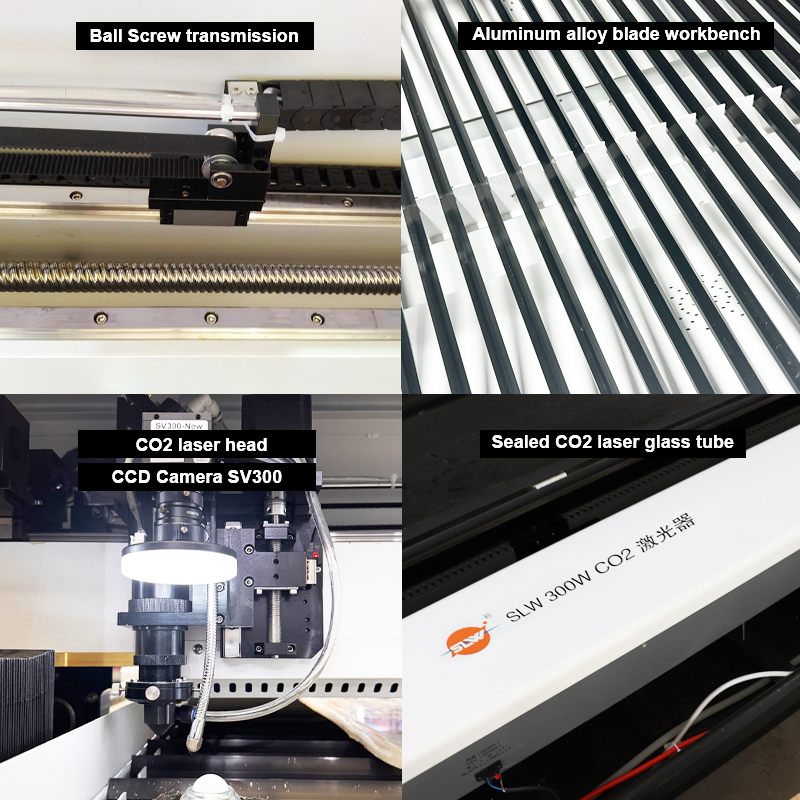

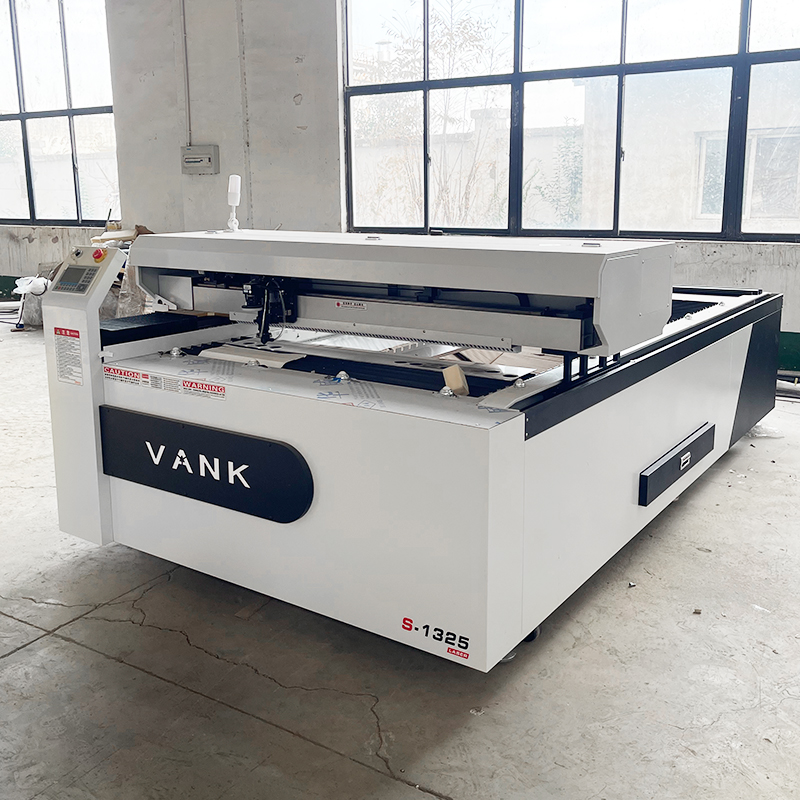

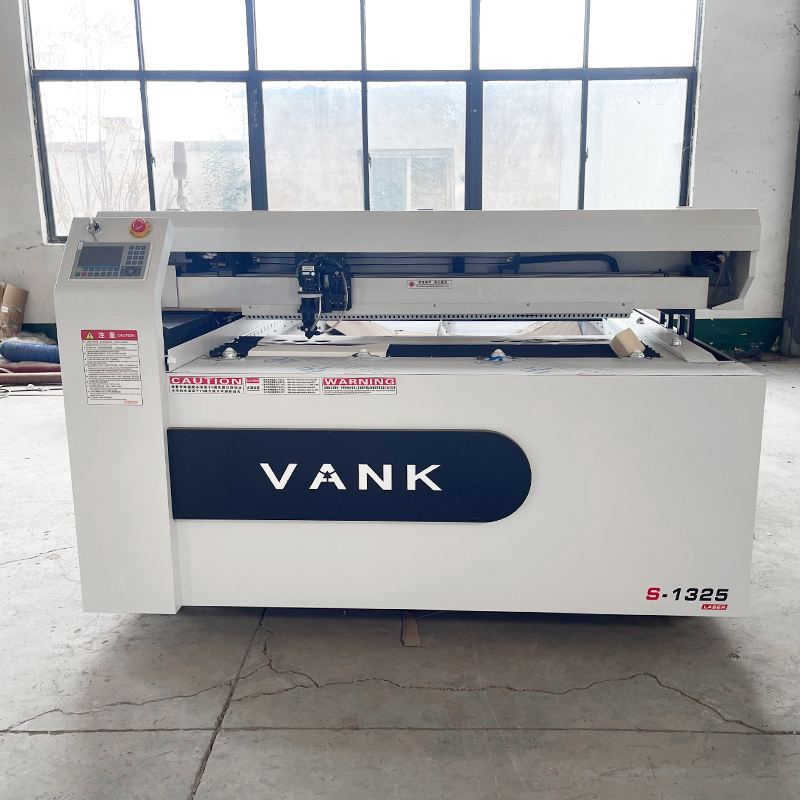

Details of 4*8 1325 CO2 Laser Engraving Machine
Designed for large-sheet non-metal production, the H-1325 integrates the laser, motion system, Ruida control, cooling and extraction connections in one configurable platform. Power, bed type and accessories are selected around the application rather than treated as one universal setup.

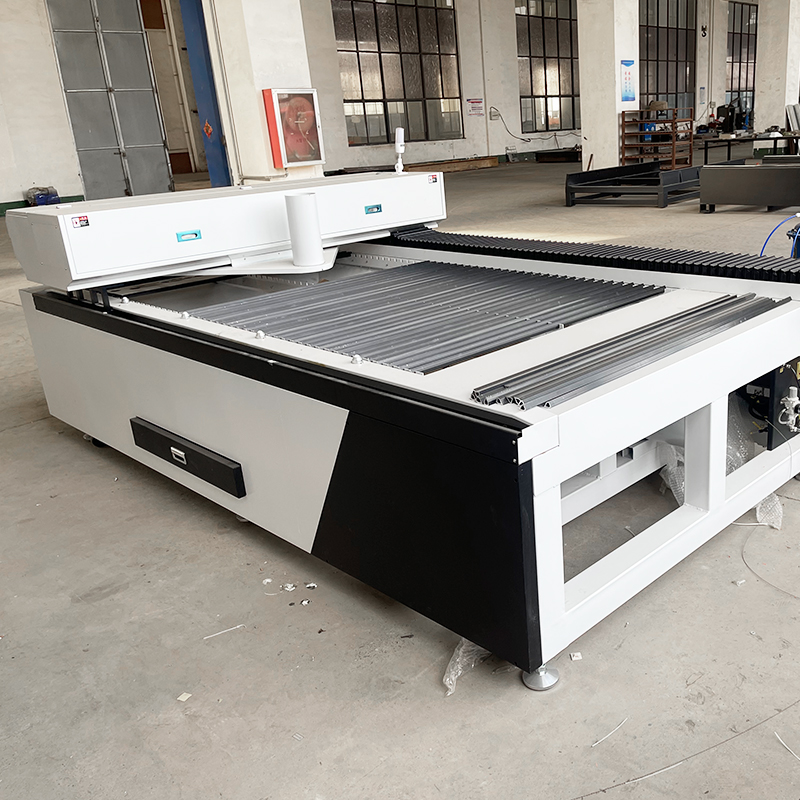

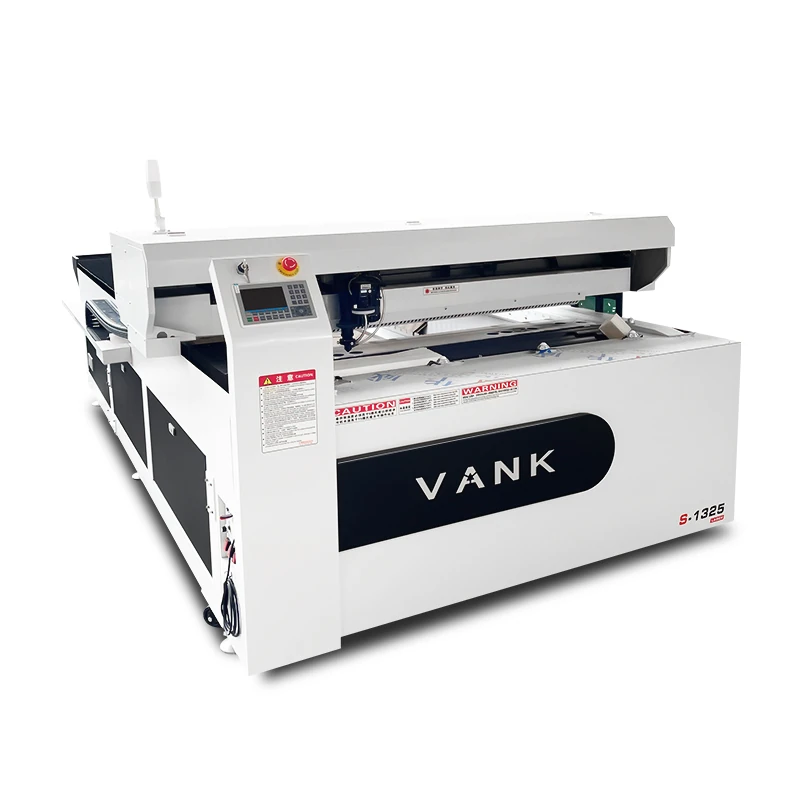

1300 x 2500 mm Sheet Capacity
The 1300 x 2500 mm working area accommodates common 4 x 8 ft sheet formats with practical loading clearance. The open-style bed provides front and side access for positioning large acrylic, wood and MDF sheets; operators should still follow the specified loading method and machine safety procedures.

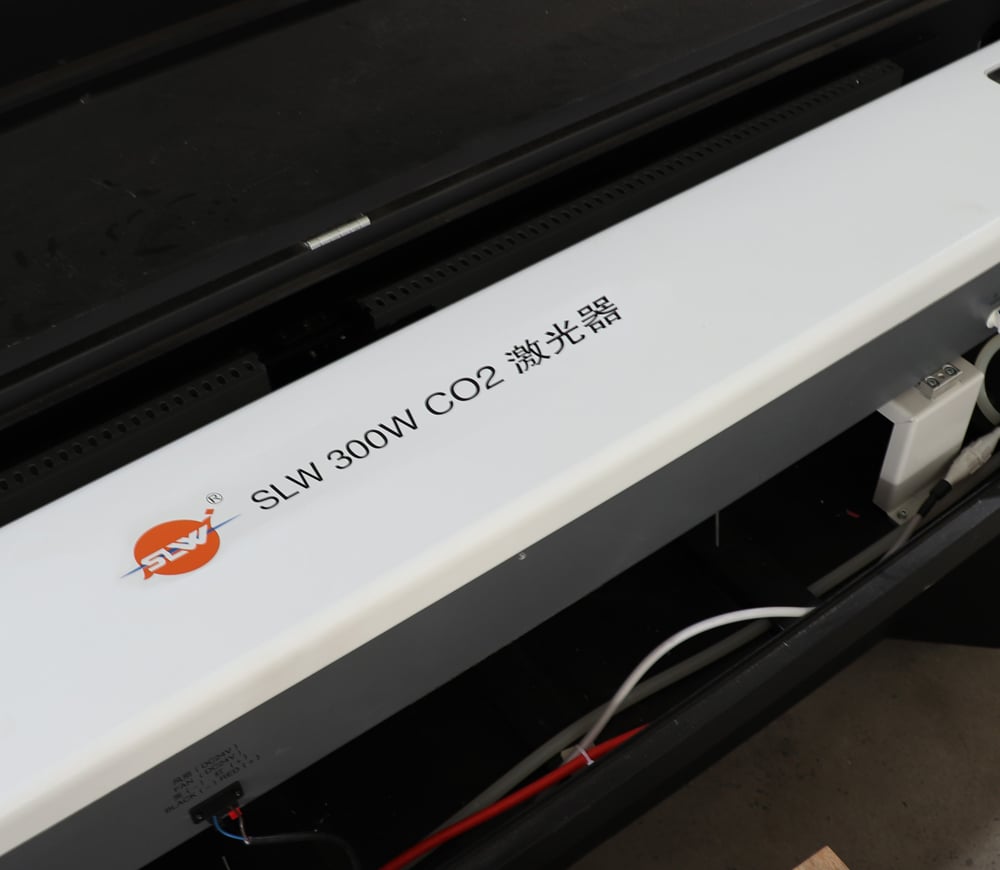

Sealed CO2 laser glass tube
The TS300 peak power over 360W, stable power 300W, continuous working life over 12000 hrs, warranty 12 months. The high power CO2 laser system can cut Plywood, MDF, Acryl and Metal effortlessly, they are widely used in metal and non-metal laser cutting machine.

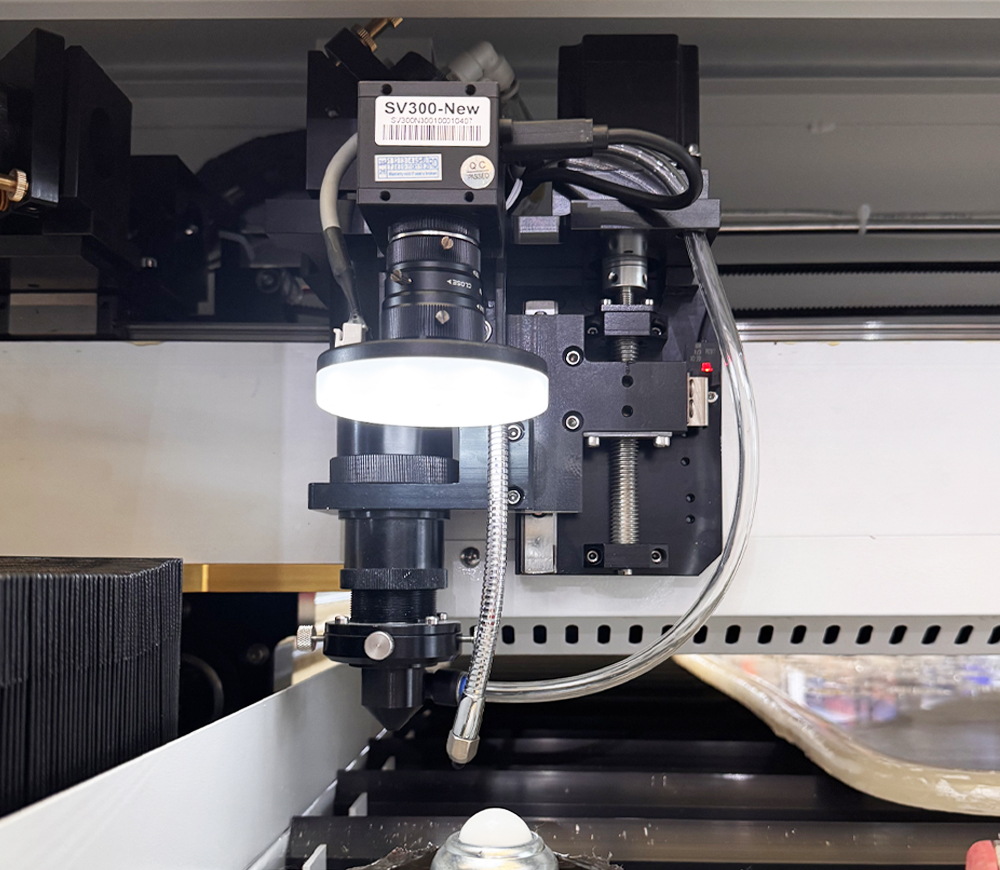

CO2 laser head
CCD Camera SV300 (for logos border cutting)
The high-quality carbon dioxide laser cutting head is made of all-aluminum alloy. The laser beam is reflected by the laser reflector and guided to the laser cutting head. After being focused by the focusing lens inside the laser head, a high-energy laser beam is formed to achieve high-speed engraving and cutting.

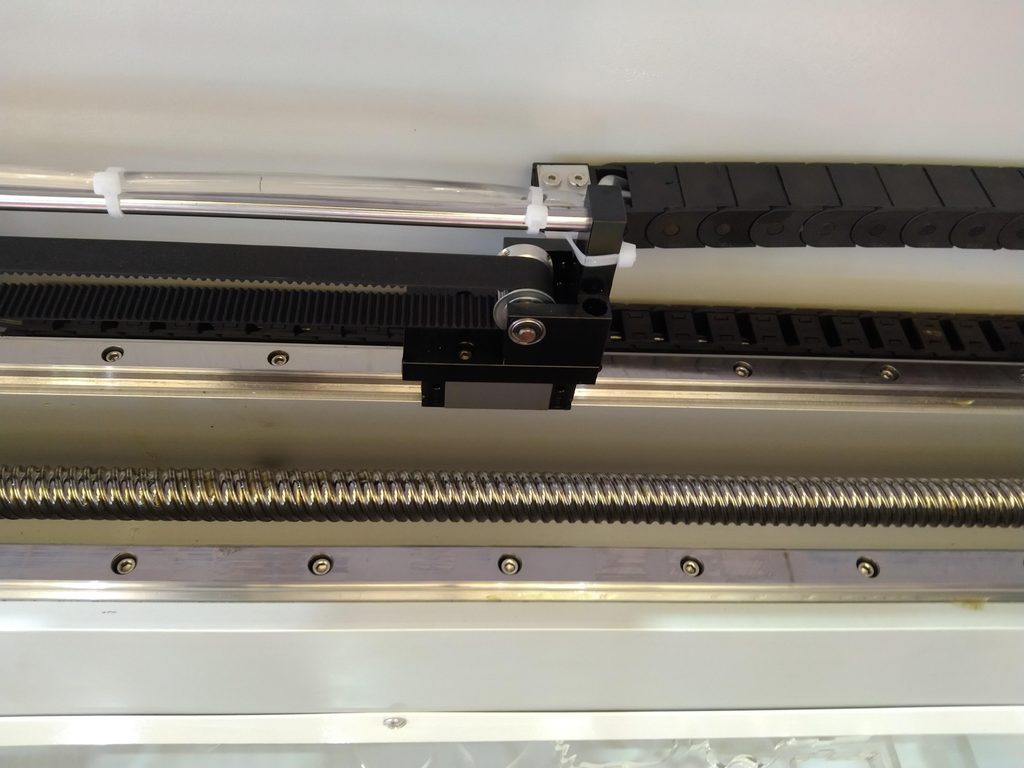

Ball Screw transmission
Compared with belt drive, it provides higher engraving and cutting precision; compared with GEAR RACK rack drive, it provides higher precision, but rack-drive machines are faster. BALL SCREW drive is mainly used for cutting materials over 20 mm thick and for laser cutting of greater thicknesses, resulting in smoother cutting edges.

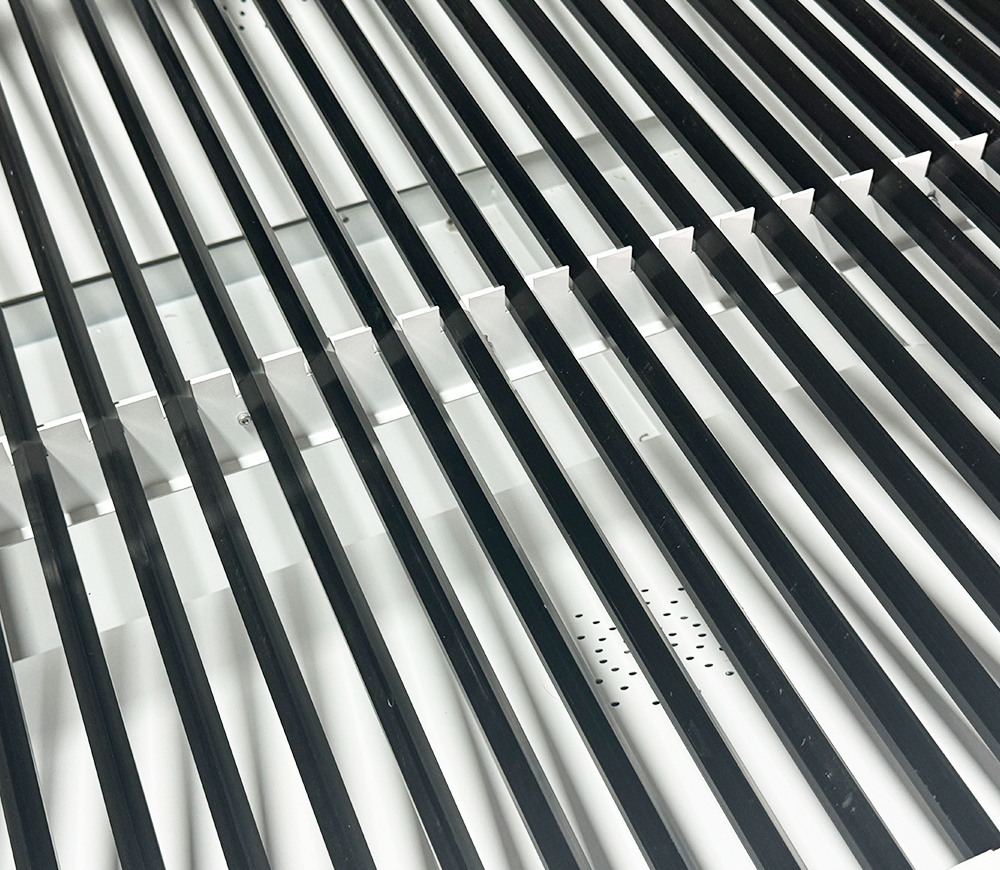

Aluminum alloy blade workbench
Multiple aluminum alloy structure design, aluminum alloy material is easier to dissipate heat, and the waste of laser-cut products falls into the blade table to keep the table clean.

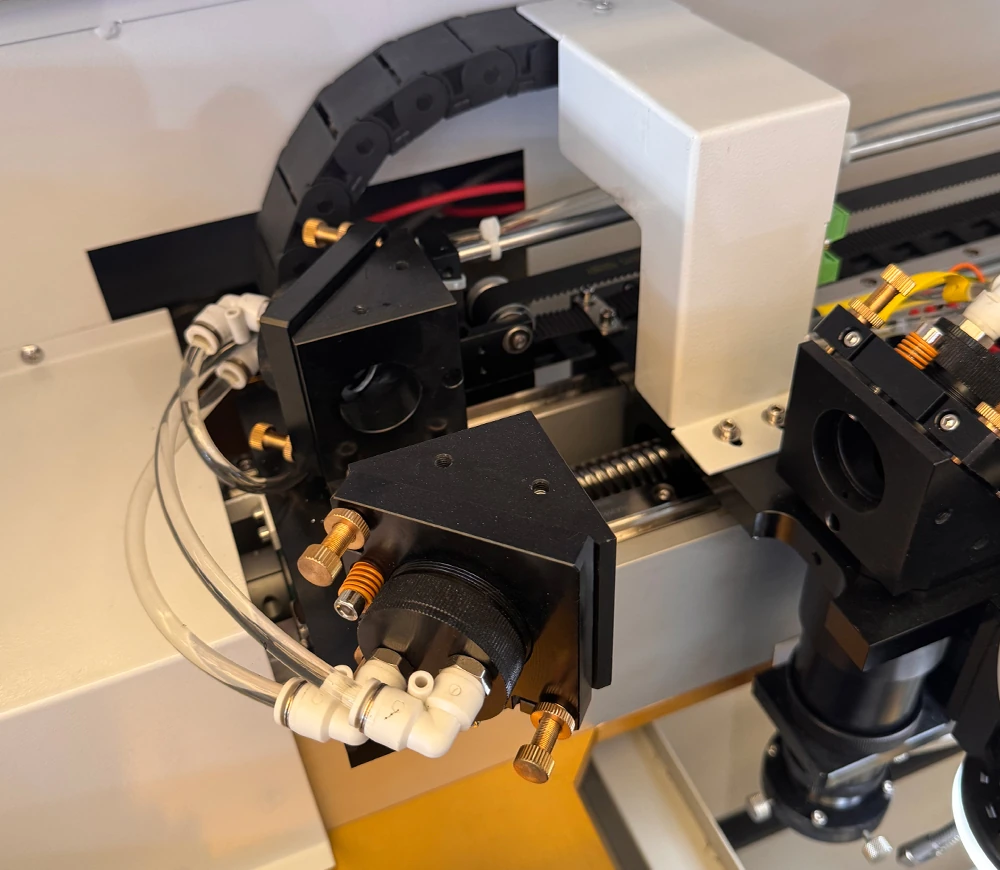

Adjustable Mirror Alignment
The beam path uses adjustable mirrors to carry the CO2 laser from the tube to the cutting head. Stable mounts support repeatable alignment, while three-point adjustment allows trained technicians to correct the optical path during installation or scheduled maintenance.
Intelligentcontrolsystem
Format compatible (PLT/JPG/DXF/DST).The control software is based on the Windows operating system and supports various common processing file formats. It includes commonly used editing and layout functions, as well as processing and control functions specific to laser processing. While ensuring ease of use and reliability, it also helps you achieve excellent processing results and efficiency.

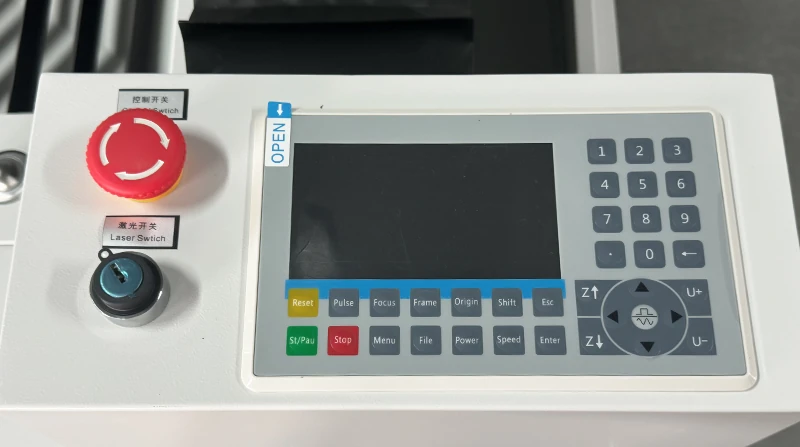

Ruida 6445S CNC system
The configured Ruida panel provides job selection, layer parameters, positioning and status information at the machine. LightBurn supports common RDC6442 and RDC6445 controller families; confirm the exact controller model and software version in the quotation.

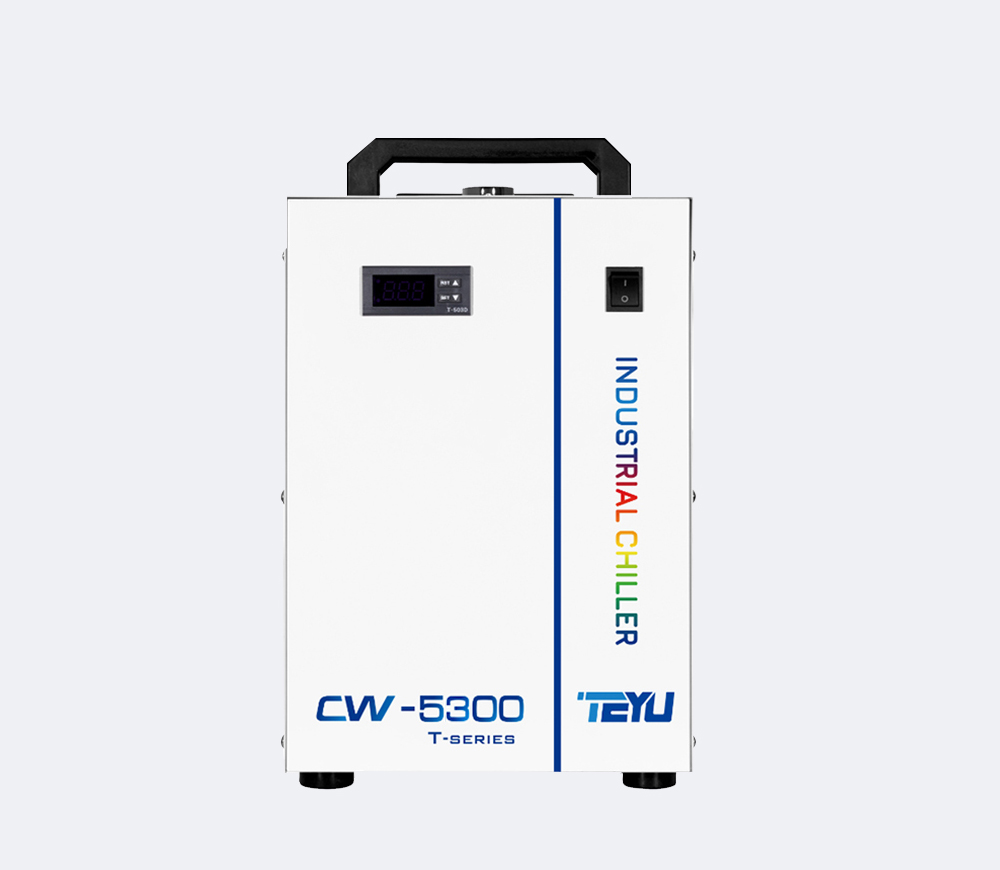

S&A CW5300 water Chiller
The supplied package can be configured with the chiller, exhaust blower, air-assist components and ducting required for the selected machine and destination.
An industrial water chiller circulates temperature-controlled coolant through the laser tube. Chiller model and alarm protection are selected according to tube power and local ambient conditions.
The exhaust blower removes smoke and process fumes from the cutting zone. Airflow, filtration and discharge arrangements must be designed for the material and comply with local workplace and environmental requirements.
Ducting scope and connection sizes are confirmed in the final configuration so the customer can plan safe discharge or filtration before installation.
Lens Options for Engraving and Thick Cutting
A 2.5 in (63.5 mm) focal-length lens suits general engraving and cutting, while a 4 in (101.6 mm) option provides greater depth of focus for thicker materials. The best lens depends on material, thickness, detail and edge requirements; confirm performance with a sample test.
Offline Job Storage and Recovery
Ruida controllers can store jobs and provide recovery functions after an interruption. Resume behavior depends on the controller, file and machine state, so the operator must inspect the machine, material and origin before restarting a job.
Jobs can be transferred by USB storage, USB cable or wired Ethernet, depending on the controller configuration, and then run from the panel without keeping the design computer connected.
Which optional accessories are available for my products?
Accessories are selected according to part height, shape, material and positioning requirements:
- Motorized lifting table for taller workpieces and clearance below a compatible rotary fixture.
- Red-dot positioning and autofocus options to assist setup; final focus should be verified on the actual material.
- Roller rotary for suitable bottles, cups and other cylindrical parts, subject to diameter and weight limits.
- Chuck rotary for parts that need positive clamping; jaw type and clearance are matched to the workpiece.
FAQs of 1325 CO2 Laser Engraving Machine
1. The pattern cannot be engraved or the pattern is not clearly engraved:
- The laser focal length is not adjusted properly, and the laser focal length needs to be adjusted.
- The engraving power is too small or the engraving speed is too high. The engraving power needs to be adjusted according to the material parameters.
- The imported image is not clear or the processing is not ideal. Confirm whether the imported image is clear and whether the image processing is ideal.
- The engraving machine is not leveled and tilted. Check whether the engraving machine is level.
- There is dust or debris in the laser output hole. Check whether there is dust or debris in the laser hole.
2. Insufficient or uneven engraving depth:
- The material surface is uneven or the laser power is set too low.
- The synchronous belt or parts are worn, clean the lens/laser tube, and replace the worn parts.
- Reduce the engraving speed and increase the laser power.
- Check the file path and reset the software parameters.
If the cause is not obvious, isolate the machine and contact qualified service personnel. High-voltage laser power supplies and CO2 tubes must not be tested or opened by untrained operators.
3. Cutting/engraving position offset or misalignment:
- Motor wire contact is poor or driver is faulty, replace the damaged driver or motor wire.
- Limit switch is faulty or sensor is dirty, clean the limit switch and check the sensor connection.
- Electrostatic interference or poor grounding, check the machine grounding and eliminate interference.
4. No response when powered on or abnormal reset:
- The power is not connected and the emergency stop switch is not reset. Check the power switch and emergency stop button.
- The control card is loose/damaged or the mainboard is faulty. Check the control card.
5. The software cannot connect or data transmission fails:
- The data cable is in poor contact, please replace the data cable.
- The software parameter setting is wrong (such as serial port mismatch), please reinstall the software.
- The computer system or driver is faulty, please check the driver and update the operating system.
