Compact Fiber Laser Marking Applications
- Electronics and electrical parts: permanent identification on qualified metal housings, connectors, tags and selected laser-responsive polymers after sample validation.
- Tools and industrial hardware: logos, serial numbers, scales, Data Matrix codes and controlled-depth engraving on steel, carbide and coated components.
- Jewelry and accessories: fine personalization on gold, silver, stainless steel, titanium, brass and other approved metals with part-specific fixtures.
- Automotive and machinery parts: traceability marks on bearings, gears, fasteners, valves, nameplates and machined components.
- Medical-device supply: validated marking on compatible instruments and components only within the customer’s documented regulatory and cleaning process.
- Personalization and small-batch production: variable text, logos, codes and artwork on approved metal gifts, tags, pens and accessories.

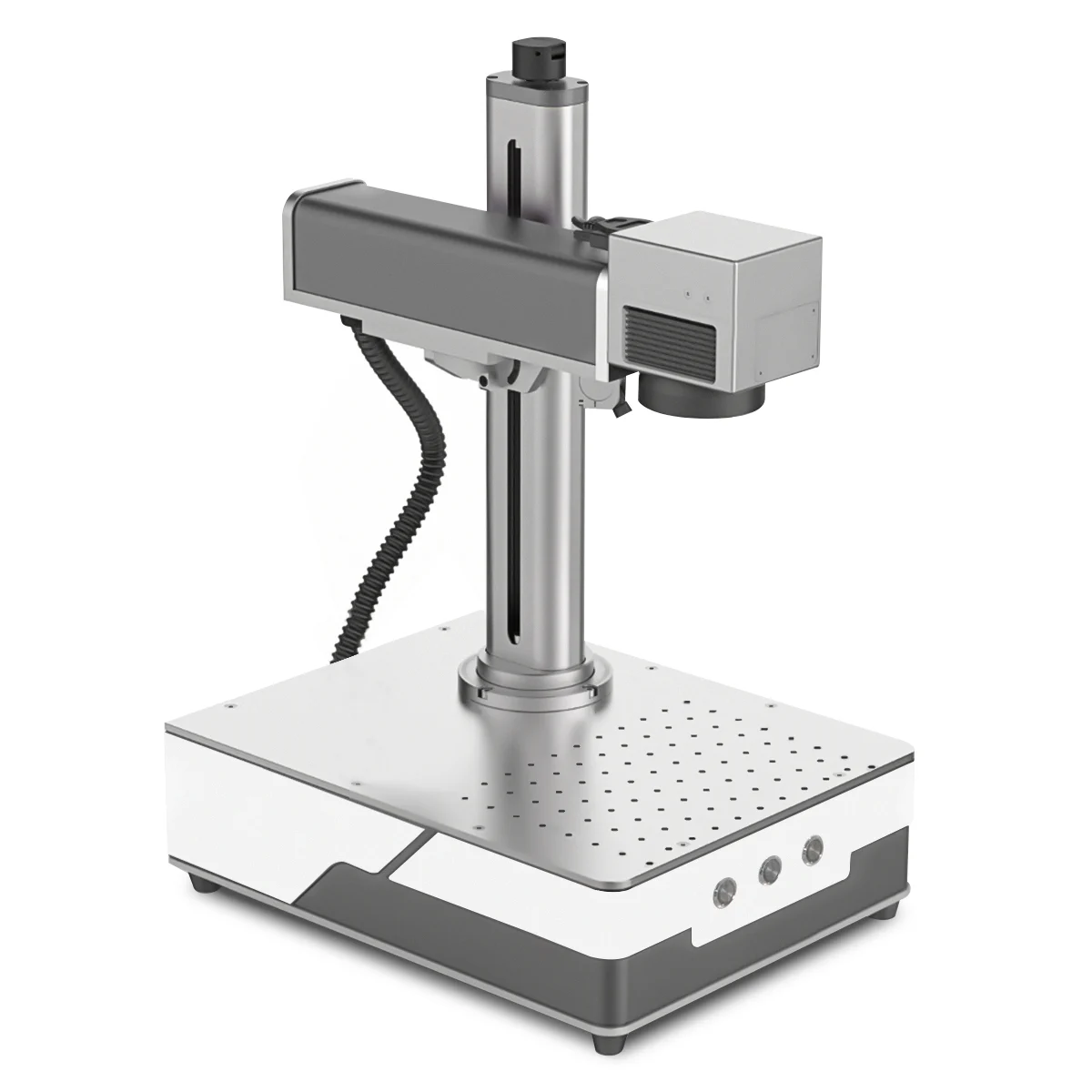

Mini Fiber Laser Marker Specifications
| Model | Compact open-frame mini fiber laser marker (configured order) |
| Primary Process | Permanent surface marking, texturing and controlled engraving on qualified metals and laser-responsive plastics |
| Nominal Wavelength | 1064 nm pulsed fiber laser |
| Rated Power Options | 20 / 30 / 50 / 60 / 70 / 100 W as quoted |
| Source Architecture | Q-switched or MOPA source selected for alloy, contrast, depth, heat input and color-marking trials |
| Pulse Parameters | Frequency and pulse-width range depend on the exact source model and must follow its datasheet |
| Marking Field | Lens options from 75 × 75 to 300 × 300 mm as quoted; usable field is limited by spot requirement, part height, rotary and Z-axis clearance |
| Field Lens | F-theta lens matched to field size, spot requirement, working distance and part fixture |

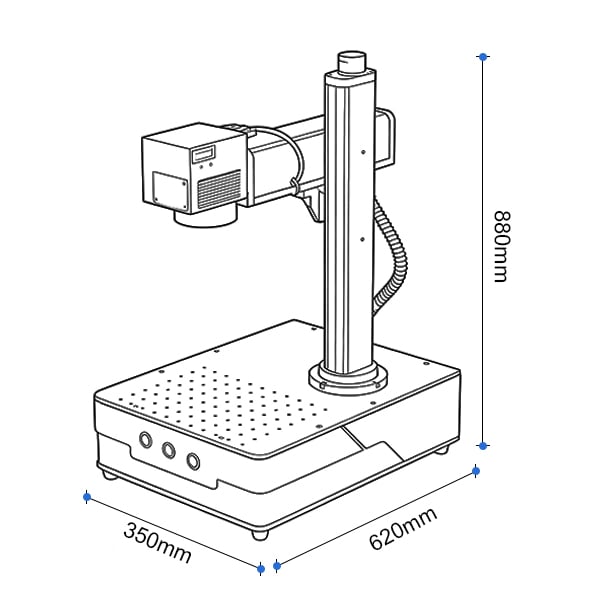

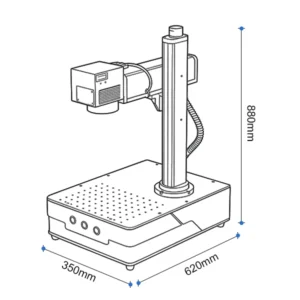

| Enclosure | Compact open-frame desktop or split workstation; an enclosure is optional and separately specified |
| Laser Safety Classification | Standard open workstation is Class 4; any lower complete-system classification requires a tested enclosure and destination-market documentation |
| Safety Controls | Key control, emergency stop, emission indication, guarding and controlled-area provisions confirmed in the final configuration; enclosure interlocks are optional |
| Scan Head | Dual-axis galvanometer with lens-specific correction file |
| Focus and Z Clearance | Manual or motorized Z as quoted; usable height and focal clearance confirmed with the actual part and fixture |
| Production Speed | Qualified by sample for artwork, fill density, alloy, contrast or depth and acceptable heat input |
| Mark Quality | Smallest character, line width, field distortion, repeatability and cosmetic finish verified on approved samples |
| Cooling | Air-cooled unless the exact source or workstation configuration specifies another method |
| Controller | JCZ/EZCAD2-compatible control card or other quoted controller, with model, firmware and source protocol confirmed |
| Software | EZCAD2 workflow; LightBurn Pro only when the supplied board, driver and current version are supported |
| Variable Data | Text, serial numbers, logos, barcodes and Data Matrix codes subject to software and customer file validation |
| Jewelry Fixtures | Optional ring, chuck, roller or flat-part fixtures selected for diameter, weight, concentricity, clearance and surface protection |
| Extraction | Local fume and particle extraction or filtration matched to material, coating, engraving depth and duty cycle |
| Electrical Service | Voltage, frequency, connected load, grounding and destination-market requirements confirmed before shipment |
| Operating Environment | Temperature, humidity, dust and condensation limits follow the final source, controller and workstation manuals |
| Acceptance | Customer samples approve artwork, material, fixture, mark appearance or depth, cycle time, readability and safety documentation |

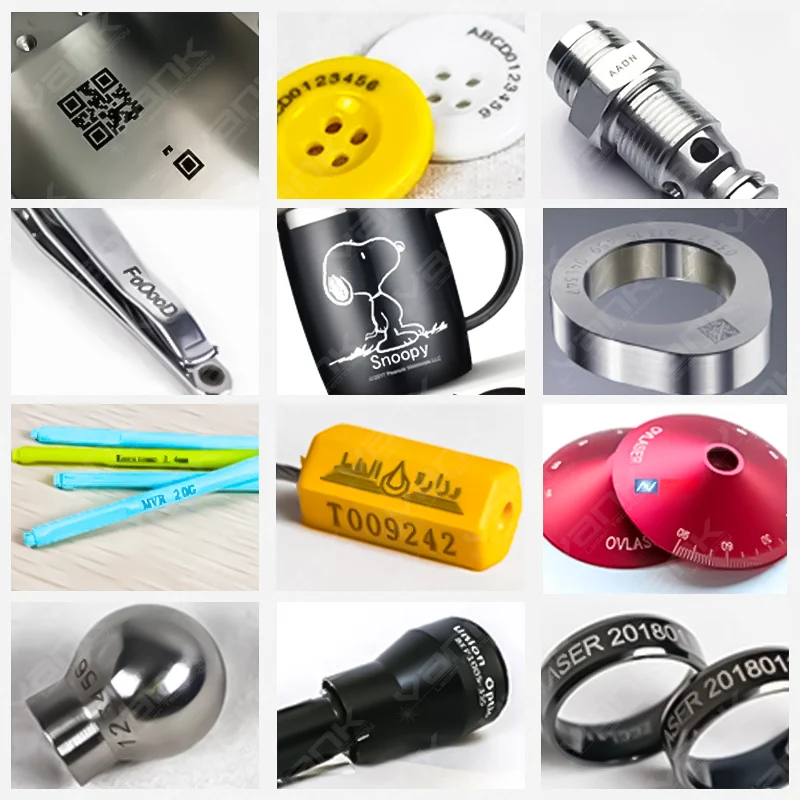

Fiber Marking Samples and Qualification
Materials and Process Qualification
A 1064 nm fiber source is commonly selected for steel, stainless steel, aluminum, brass, copper, titanium, precious metals and many coated metals. Some engineered polymers can mark after SDS review and testing. Leather, fabric, glass, paper, clear acrylic and stone generally require a different source. Every alloy, coating, finish and heat-sensitive assembly must be qualified on a representative sample.
Typical Mini Fiber Marker Users
Typical users include electronics and electrical manufacturers, tool and hardware shops, automotive suppliers, jewelry studios, personalization services and small-part traceability teams. A production trial defines loading, focus, fixture changeover, extraction, code inspection, cycle time and acceptable surface finish.
Core Mini Marker Components
Controller and Fiber Marking Software
The configured controller and supplied software manage text, logos, serial data, barcodes, Data Matrix codes, vectors and raster artwork. Board revision, firmware, source protocol, driver, import formats and lens-correction file are confirmed with the delivered system. LightBurn Pro is optional only for a currently supported board, driver and software version.
Configured 1064 nm Fiber Source
Raycus, MAX, IPG or JPT sources can be evaluated by exact model, rated power, Q-switched or MOPA architecture, pulse-frequency range and pulse-width behavior. Higher power does not automatically improve mark quality; material, coating, spot size, heat input, field lens and scan strategy are selected from customer samples.
JCZ Galvo Control Card
The JCZ or other quoted control card coordinates source timing, galvanometer motion and workstation I/O. Exact hardware, firmware and electrical integration must match the delivered source and safety design; software control does not replace independent safety controls.
Calibrated Galvanometer Scan Head
The dual-axis galvanometer moves the beam across the lens-corrected field. Scanner travel speed is not a production-cycle guarantee; artwork, fill, material, power, depth and thermal limits define throughput. Auto-focus and 3D scanning are separately engineered options.
Ring and Small-Part Rotary Fixture
A compact rotary can support inside or outside marking on compatible rings and small cylindrical parts. Chuck range, concentricity, step resolution, surface protection, focal distance and Z clearance are confirmed on the customer part.
Flat-Sheet and Small-Part Fixture
A flat-part fixture can locate tags, nameplates, sheet, tools and small components. Usable opening, jaw material, part thickness, flatness, repeatability and protection against scratches are selected for the application.
Cylindrical Rotary Fixture
A chuck or roller rotary can index compatible cylindrical parts. Diameter, length, weight, taper, focal position, support method and Z clearance are confirmed before production.
Mini Fiber Laser Marker FAQ
What materials can a mini fiber laser marker process?
Fiber sources are well suited to steel, stainless steel, aluminum, brass, copper, titanium, precious metals and many coated metals. Results vary by alloy, plating and finish. Some polymers mark after SDS review and testing; leather, fabric, glass and clear acrylic usually require a different source.
Which 20-100 W fiber source should I choose?
Common quoted fiber options are 20, 30, 50, 60, 70 and 100 W. Choose the exact Q-switched or MOPA source, field lens and pulse range from the material, required contrast or depth, smallest feature, acceptable heat input and production target.
How deep can a fiber laser marker engrave into metal?
There is no universal engraving depth. Material, source architecture, rated power, lens, spot size, passes, hatch strategy, heat limit and cycle time all affect removal. Controlled depth must be measured on a representative customer sample.
How does fiber laser marking compare with CO2 marking?
A 1064 nm fiber laser is commonly selected for metals and selected laser-responsive plastics. A 10.6 µm CO2 laser is generally better for many organic materials, wood, paper, leather and acrylic. UV or green sources may be preferred for fine marking on heat-sensitive coatings and polymers.
How should the field lens and workstation be maintained?
Power down and isolate the workstation before cleaning. Keep fixtures, extraction paths and guards clean. Do not touch the field lens; use only approved lens tissue and optical-cleaning fluid when inspection shows contamination. Internal optics and optional interlocks should be serviced by trained personnel.
Which controller, software and file formats are supported?
The supplied EZCAD2, EZCAD3, SeaCAD or other workflow depends on the delivered controller. Common imports include vector, raster, text and variable-data formats, but the exact list must be confirmed. LightBurn Pro is optional only for a supported galvo board, driver and current version.
What source life and warranty are provided?
Service life is not a guaranteed fixed hour count. It depends on the exact source model, duty cycle, temperature, contamination, power quality and maintenance. The quotation must identify source and workstation warranty terms, exclusions, service procedure and spare-parts support.
What are the advantages of fiber marking over inkjet or mechanical engraving?
Fiber marking is non-contact, supports software-driven variable data and can create durable marks without ink or cutting-tool wear. It still requires correct fixtures, extraction, validated parameters, optical maintenance and inspection; mechanical engraving remains useful for certain tactile or traditional finishes.
