FC-3015E / FC-6015E Fiber Laser Cutting Machine
The FC-3015E and FC-6015E are CNC fiber laser cutting machines for carbon steel, stainless steel, aluminum, brass, copper and other supported sheet metals. Available laser power, cutting head, source, controller, chiller and safety enclosure are selected according to material, thickness, production rate and destination requirements.
Power configurations from 1.5 kW to 30 kW can be evaluated for thin-sheet processing, general fabrication and high-power plate cutting. Final cutting capacity must be confirmed through material testing with the selected laser source, assist gas, nozzle, optics and process settings.
- Head Protection: Capacitive height control and anti-collision functions help reduce contact risk during cutting.
- Thin-Sheet Control: Tuned motion, focus and gas parameters support stable contours and clean edges on thin sheet.
- Automatic Lubrication: Centralized lubrication reduces routine manual servicing of supported motion components.
- Process Consistency: CNC motion and automatic height control support repeatable parts; final edge quality depends on material and cutting parameters.
- Autofocus Cutting Head: Motorized focus adjustment, protective lenses and quick-access lens drawers support setup across different materials and thicknesses.
- Stress-Relieved Machine Bed: The welded bed is heat-treated and precision-machined to support rigidity and long-term motion stability.

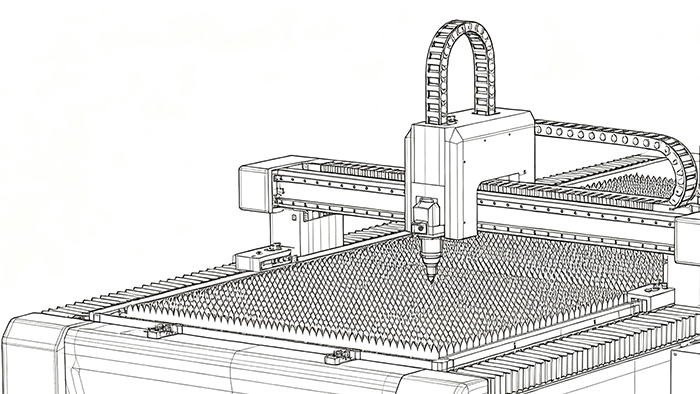

Stress-Relieved Bed and Beam
- Material and Stress Relief: The welded steel bed and beam are heat-treated before finish machining to reduce residual stress.
- Precision Machining: Critical mounting surfaces are machined after stress relief to support alignment of the guide rails, drive system and cutting area.
- Thermal Management: The bed structure separates heat-generating cutting zones from precision motion components where practical.

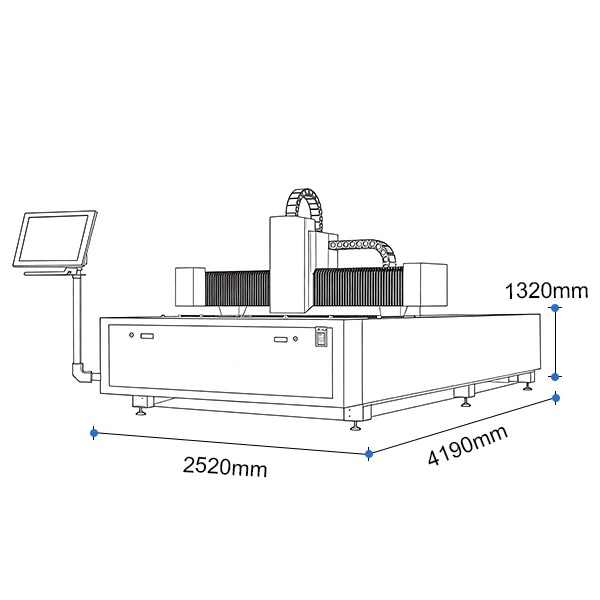

Integrated Electrical and Service Cabinet
- Integrated Layout: Electrical controls, lubrication and service access are organized within the machine platform.
- Installation Planning: Final placement must allow clearance for sheet loading, exhaust, gas, chiller, power and maintenance access.
- Workshop Efficiency: Select the 3015 or 6015 format according to sheet size, loading method and available floor space.

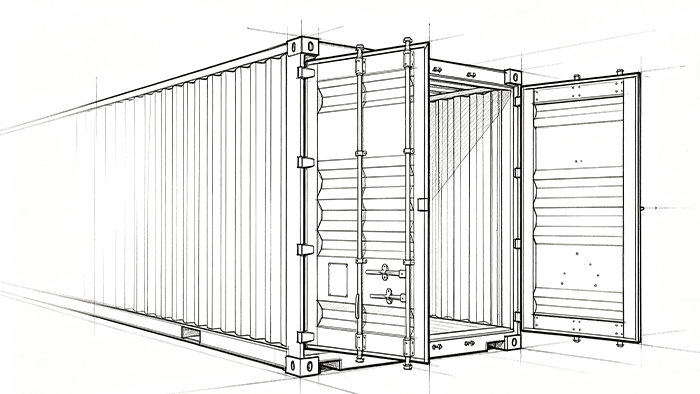

- Shipping Configuration: Packing method and container requirements are confirmed according to machine size, enclosure and selected accessories.
Machine Parameters
| Model | FC-3015E / FC-6015E |
| Working Area | 3000 × 1500 mm / 6000 × 1500 mm |
| Laser Power | 1.5-30 kW; available power depends on the selected model and configuration |
| Z-Axis Travel | 150 mm |
| Rapid Speed | Configuration dependent; confirm in the technical quotation |
| Positioning Performance | Factory acceptance values supplied for the confirmed machine configuration |
| Laser Cutting Head | Raytools or specified equivalent, matched to laser power and application |
| Linear Guide System | HIWIN or specified equivalent |
| Cooling System | Matched industrial dual-circuit water chiller |
| Fiber Laser Source | MAX / Raycus / IPG or confirmed equivalent |
| Control System | CypCut / FSCUT CNC package matched to the machine and cutting head |
| Electrical Supply | Typically 380 V, 50/60 Hz, three-phase; configured for the destination |
| Applicable Materials | Carbon steel, stainless steel, aluminum, brass, copper and supported sheet metals |
| Supported Artwork | Common CAD/vector formats supported by the selected nesting and control software |
Laser Cutting Thickness Reference Table
| Laser Power | Carbon Steel(mm) | Stainless Steel(mm) | Aluminum Alloy(mm) | Brass(mm) |
| 1.5KW | 6 / 8 | 3 / 4 | 2 / 3 | 1 / 2 |
| 2KW | 8 / 12 | 4 / 6 | 3 / 5 | 2 / 3 |
| 3KW | 12 / 16 | 6 / 8 | 5 / 7 | 3 / 4 |
| 6KW | 20 / 25 | 12 / 16 | 10 / 13 | 5 / 6 |
| 12KW | 30 / 40 | 25 / 35 | 20 / 25 | 8 / 12 |
| 20KW | 50 / 70 | 40 / 50 | 30 / 40 | 12 / 18 |
| 30KW | 65 / 90 | 50 / 65 | 40 / 50 | 15 / 22 |
How to Read the Cutting Table
1. Stable cutting: The first value in each cell is a typical production thickness for stable speed and edge quality.
2. Limit cutting: The second value is a reference maximum for occasional separation cutting and is not a production guarantee.
3. Reflective metals: Aluminum, brass and copper require a compatible laser source, cutting head, process parameters and back-reflection protection.
4. Test before production: Actual capacity varies with material grade, surface condition, assist gas, pressure, nozzle, focus, optics, power and required edge quality. Confirm with sample cutting.

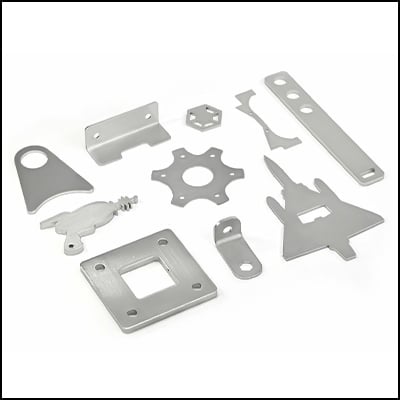

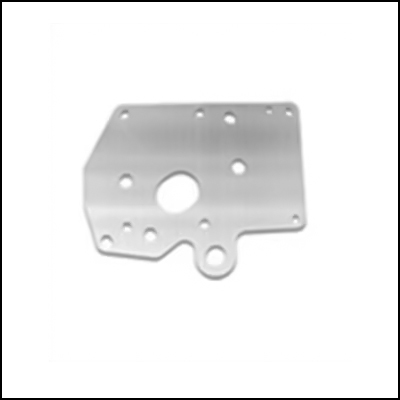

Sheet Metal Materials
Supported materials include carbon steel, mild steel, stainless steel, galvanized sheet, aluminum, brass, copper and selected alloys. This product page covers sheet and plate machines; tube and pipe cutting requires a dedicated tube-cutting model or an explicitly quoted combined configuration.

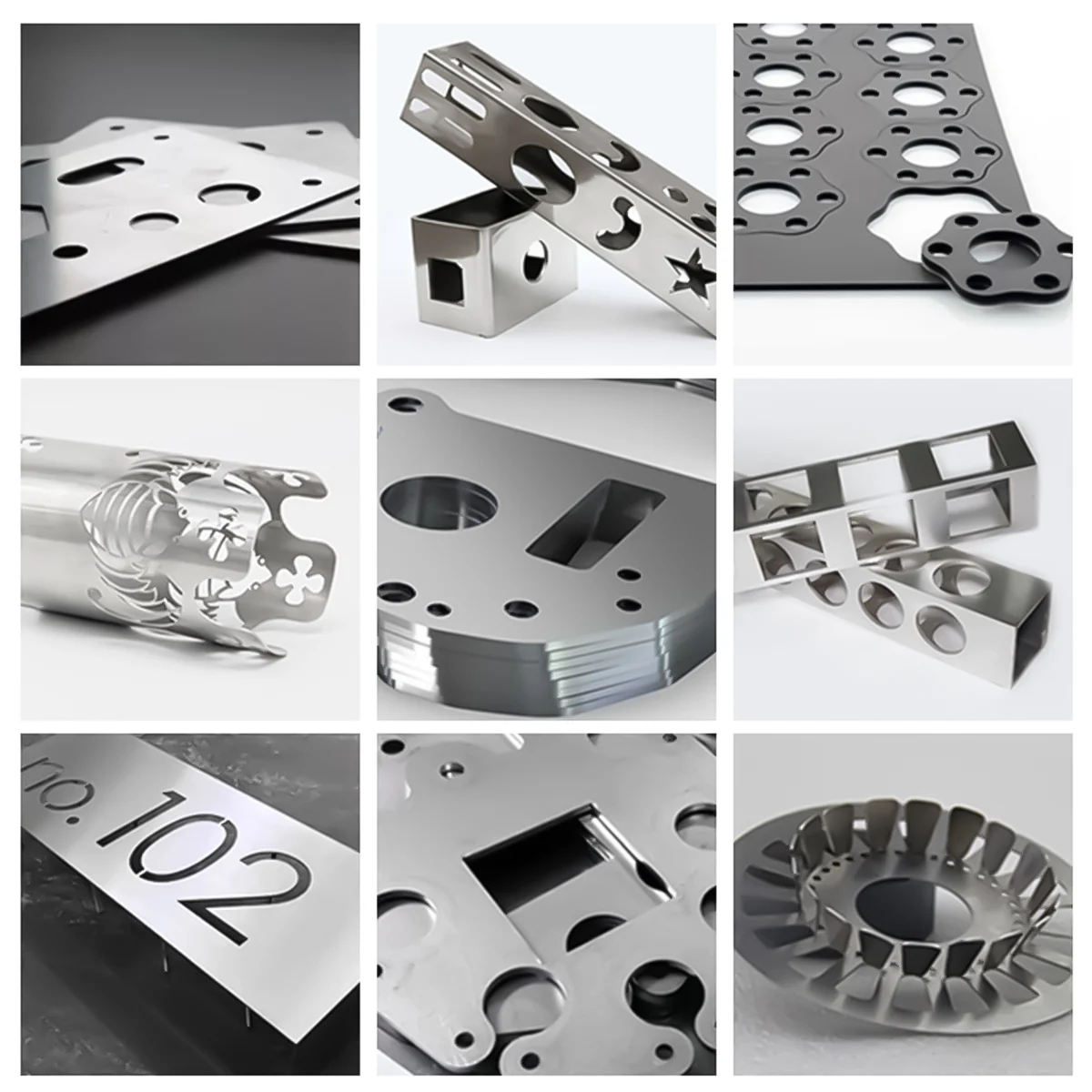

Industries and Applications
Our fiber laser cutting machine is widely used in a variety of industries, including:
- Advertising & Signage (billboards, metal letters, LED letters, signs)
- Kitchenware & Household Appliances
- Sheet Metal Processing & Fabrication
- Metal Components and Parts Manufacturing
- Chassis, Racks & Cabinets
- Elevator Panels & Architectural Decoration
- Metal Crafts & Artware
- Automotive Parts & Hardware
- Glasses Frames, Electronic Parts, Nameplates, etc.
CNC Fiber Laser Cutting Machine 3015
The FC-3015E combines a 3000 × 1500 mm sheet format with configurable power and automation for job shops, fabrication companies and growing manufacturers. Select the FC-6015E when 6000 × 1500 mm sheets or longer nested parts are required.

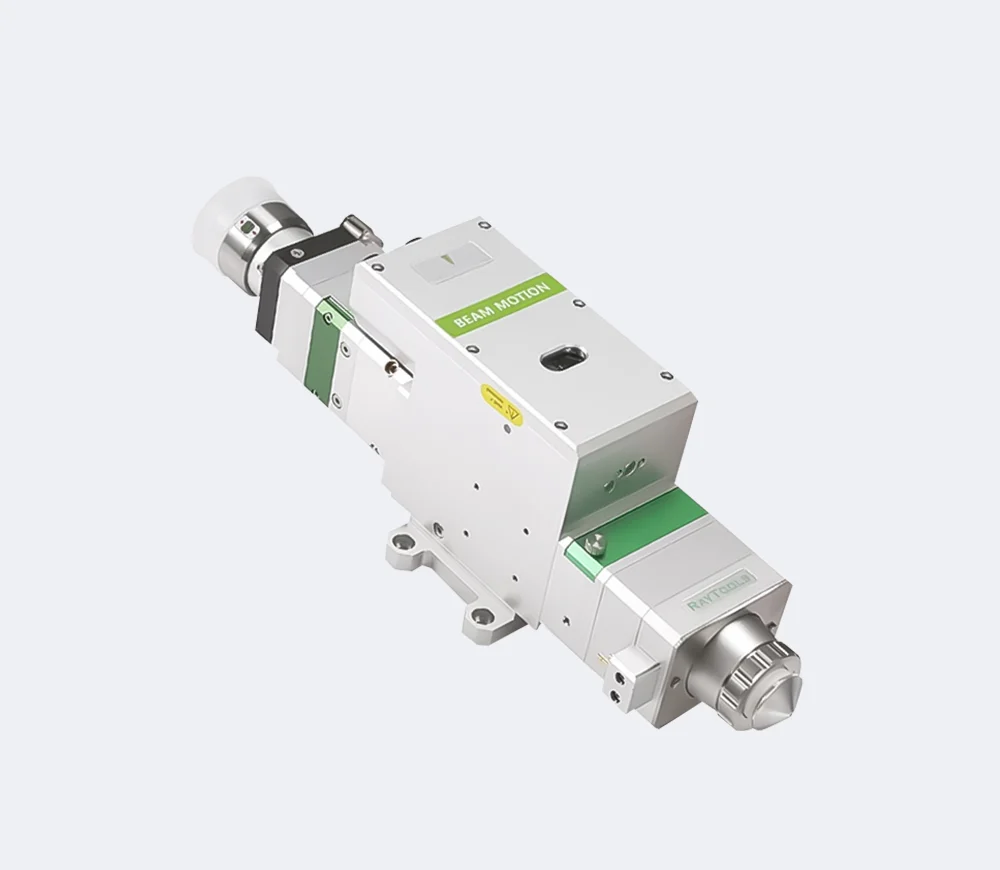

Auto Focus Laser Cutting Head
The autofocus cutting head adjusts focus position for piercing and cutting across different materials and thicknesses. The exact head model, focus travel and power rating are matched to the selected laser source.
Protective lens cartridges and service access help simplify routine optical inspection and replacement. Fiber interface and collimation requirements are confirmed with the source and head configuration.

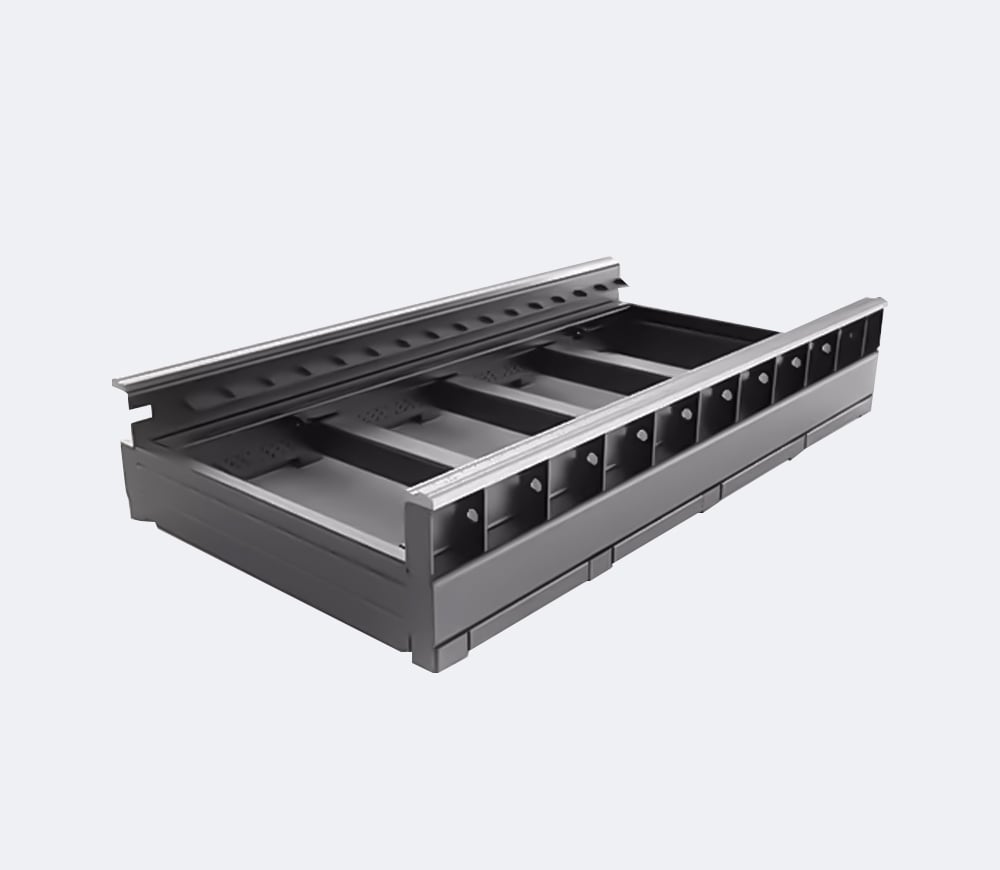

Plate Welded Bed Structure
The machine bed uses automated welding, stress relief annealing, sandblasting, precision machining, and protective coating for superior precision, durability, and structural integrity.

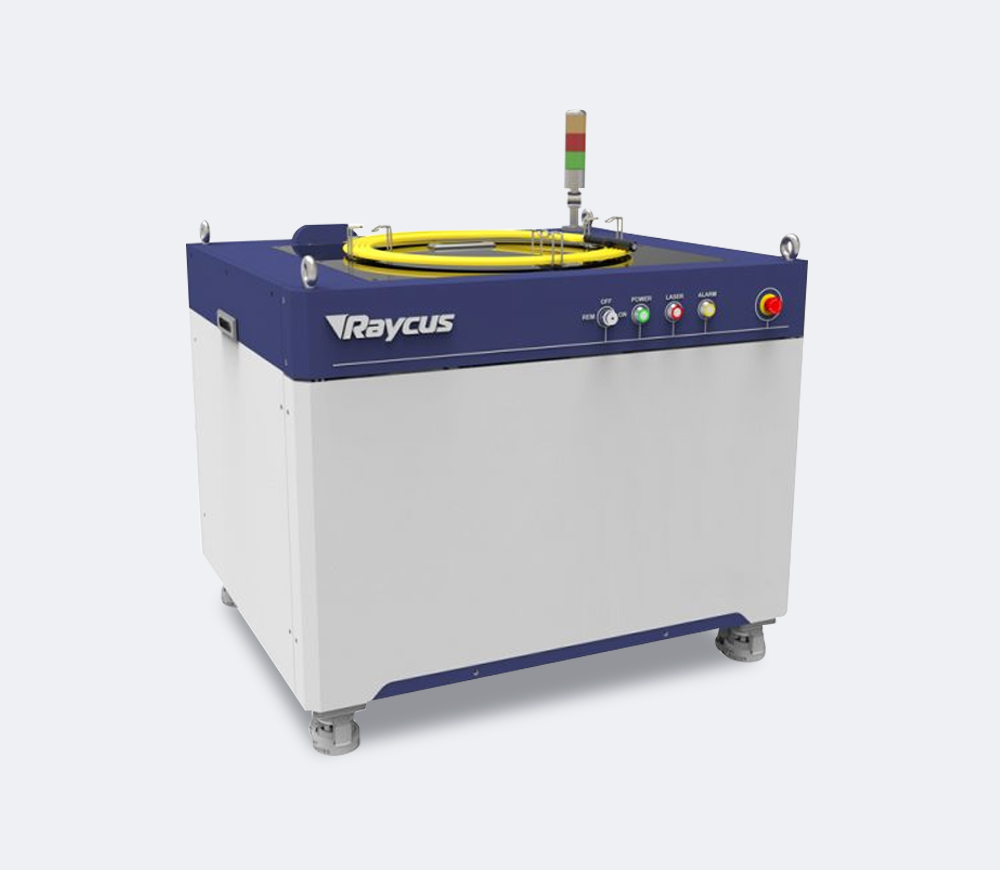

Raycus Laser Source
Raycus, MAX, IPG and other source options can be matched to the required power, material range and regional service plan. Final source model, optical fiber length and warranty are stated in the quotation.
- High electro-optical conversion efficiency
- Strong altitude stress resistance
- Excellent sheet cutting efficiency
- Customizable output fiber length
- Maintenance-free operation
- Wide modulation frequency range

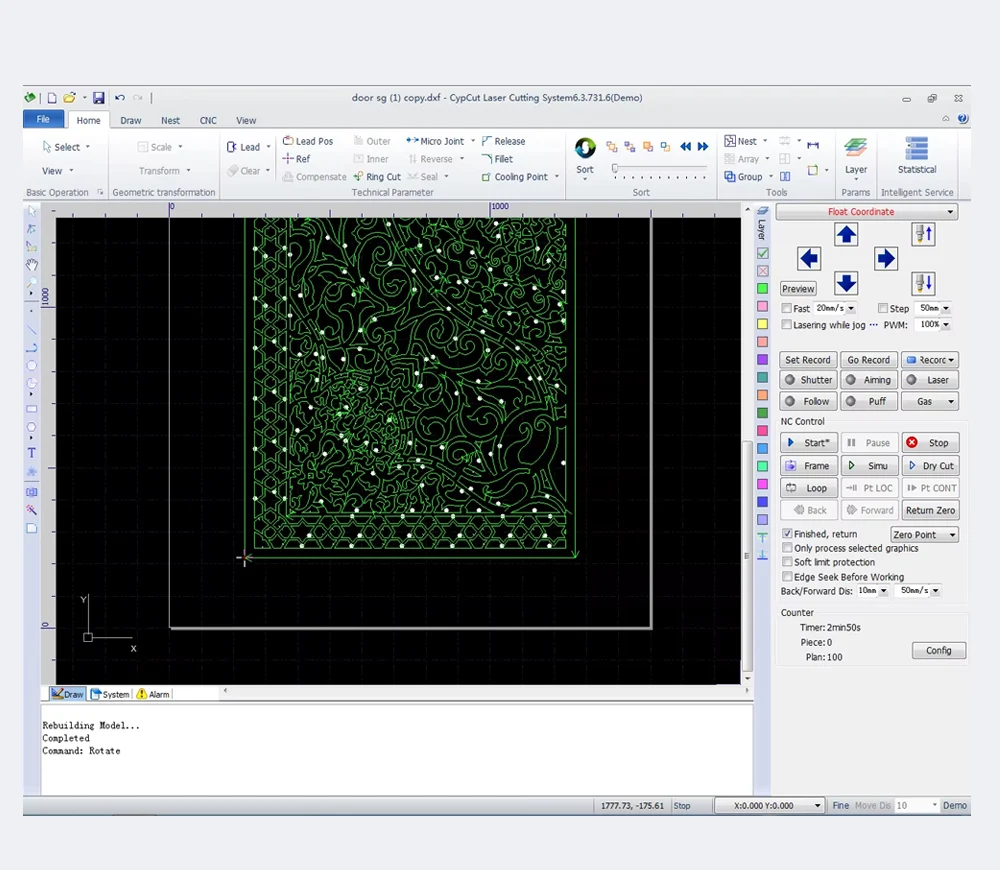

Cypcut Control System
The CypCut/FSCUT control package supports sheet nesting, layer-based process parameters, lead-ins, common-line cutting, edge finding and production job management. Tube-cutting functions require dedicated hardware and software configuration.
HIWIN Linear Guideways
HIWIN or specified equivalent linear guideways support smooth, repeatable gantry motion. Rail size, lubrication and drive components are selected according to the machine format and acceleration requirements.

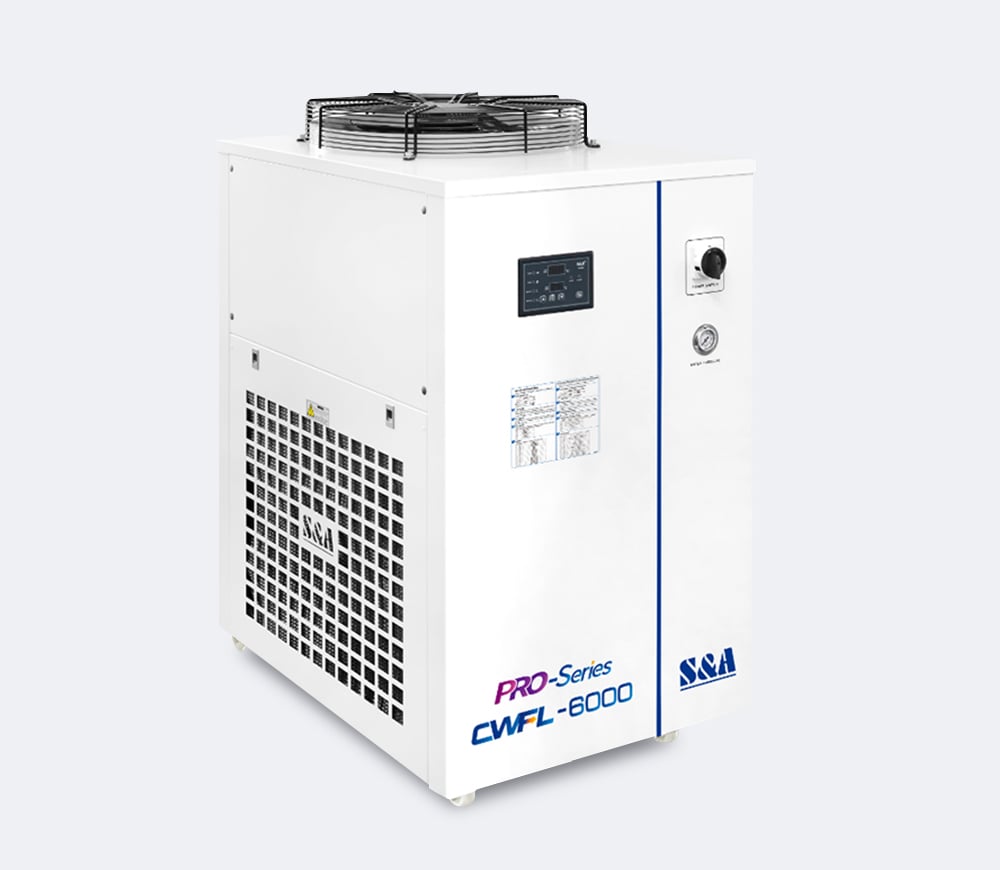

S&A Water Chiller
A matched dual-circuit industrial chiller controls the laser source and cutting-head cooling loops independently. Cooling capacity and temperature-control range are selected for the confirmed laser power and operating environment.
Frequently Asked Questions
What materials can this fiber laser cutting machine cut?
It can cut carbon steel, stainless steel, galvanized sheet, aluminum, brass, copper and selected alloys when the laser source, cutting head, gas system and process are configured for the material.
What cutting thickness can each laser power handle?
Cutting thickness depends on laser power, material grade, assist gas, nozzle, focus, optics, speed and the required edge quality. Use the reference table as a starting point and confirm the final configuration through sample cutting.
What laser power options are available?
Configurations from 1.5 kW to 30 kW can be evaluated. Available power depends on the machine model, cutting head, source, chiller, electrical supply and safety configuration.
What working areas are available?
The FC-3015E uses a 3000 × 1500 mm work area and the FC-6015E uses a 6000 × 1500 mm work area. Other sheet formats are available in separate machine series.
Do you provide installation, training and technical support?
Installation, operator training, remote support, spare parts and warranty terms are defined in the confirmed quotation according to the destination and machine configuration.
What certification, software and file formats are supplied?
Certification documents, electrical standards and safety options are supplied according to the confirmed export configuration. CypCut/FSCUT systems support common CAD and vector workflows; confirm the final software package and import formats in the quotation.
Can I test my material before ordering?
Yes. Send the material grade, thickness, drawing, quality requirement and target cycle time so the factory can arrange sample cutting and recommend a configuration.
How does fiber laser cutting compare with CO2 cutting?
Fiber lasers are generally preferred for sheet-metal cutting because the wavelength couples efficiently with metals and the source requires limited routine optical maintenance. CO2 lasers remain common for many non-metal materials. The correct process depends on material, thickness and edge requirements.
Can the machine be customized?
Yes. Options can include power, source brand, cutting head, work area, enclosure, loading system, voltage, gas controls, dust extraction, software and regional compliance requirements.
