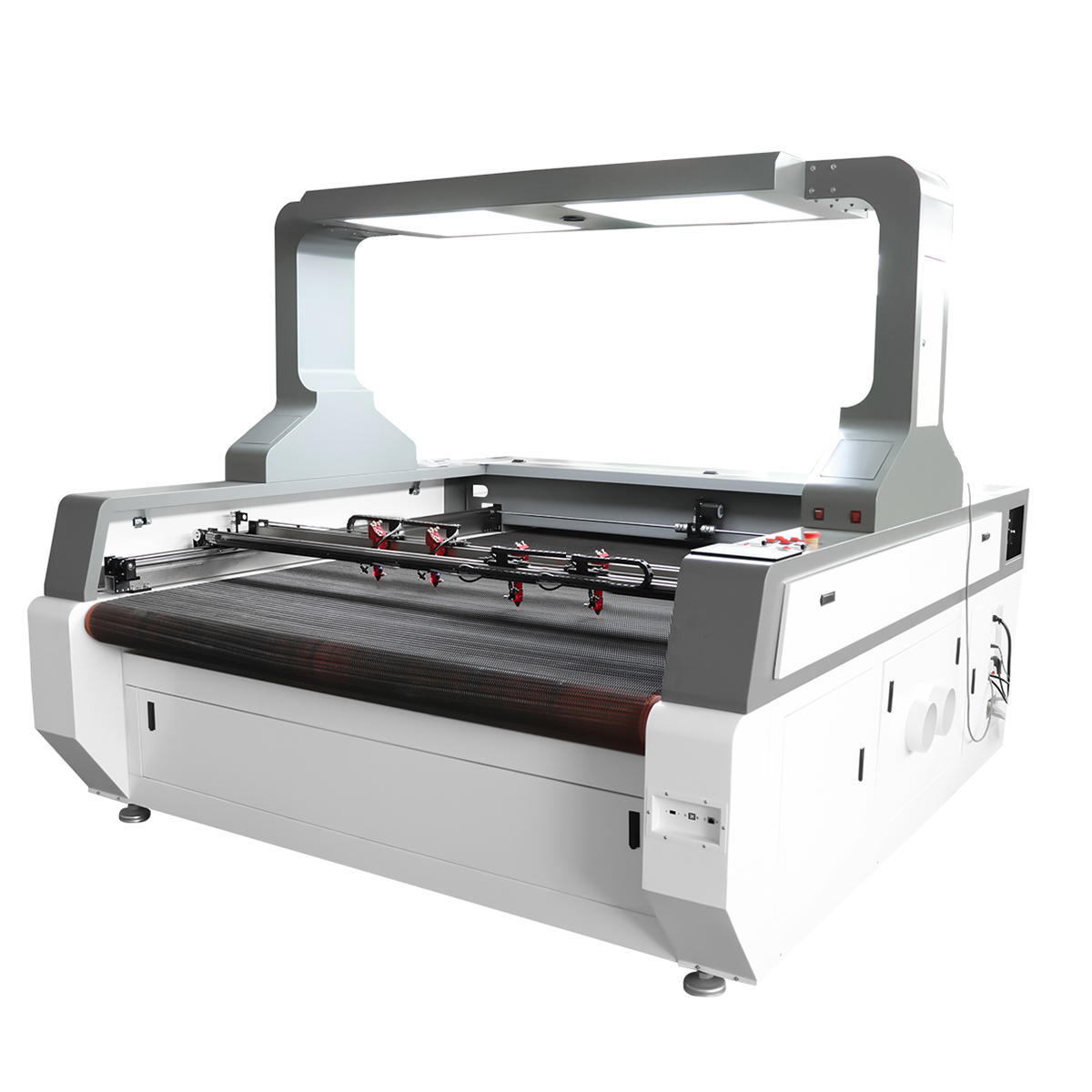

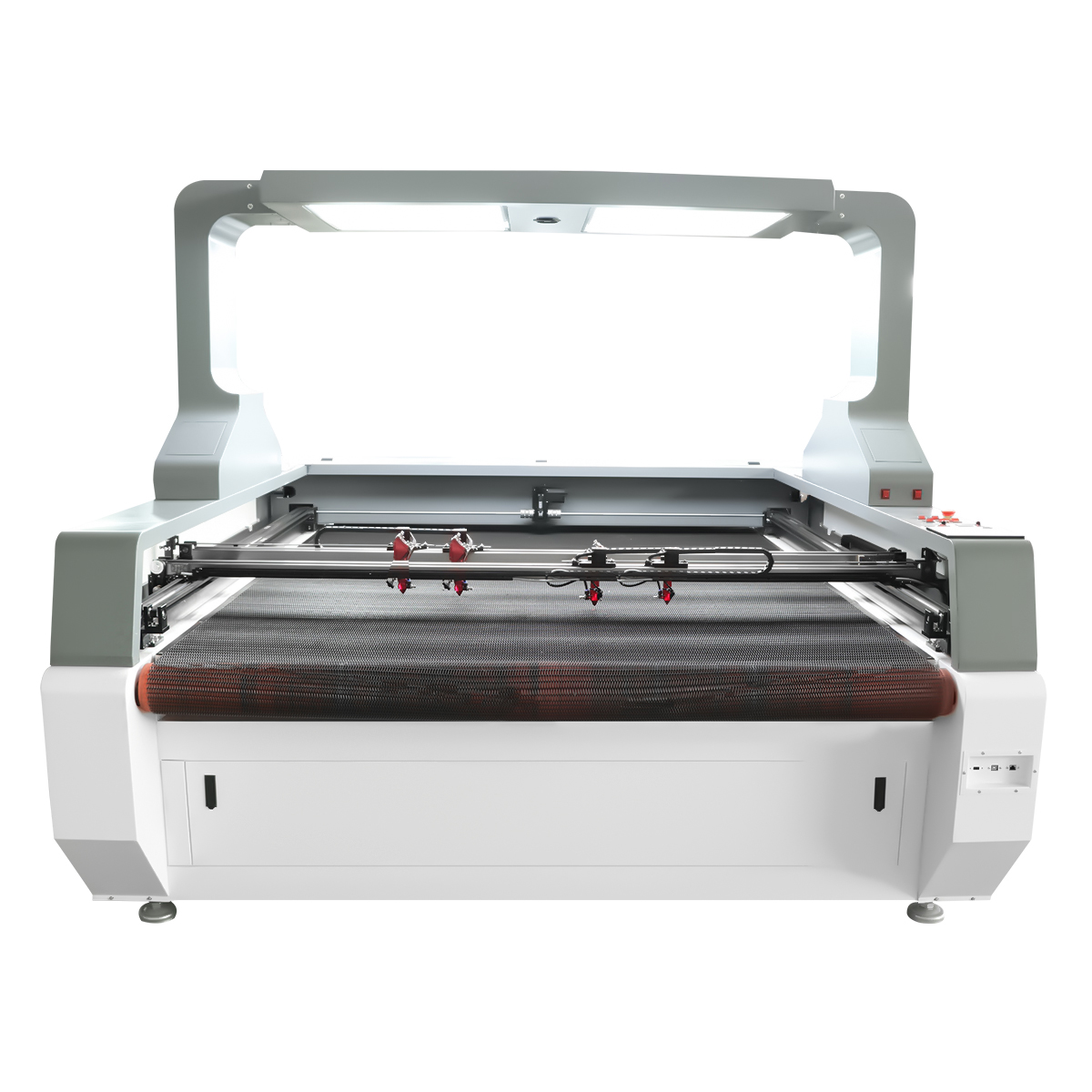

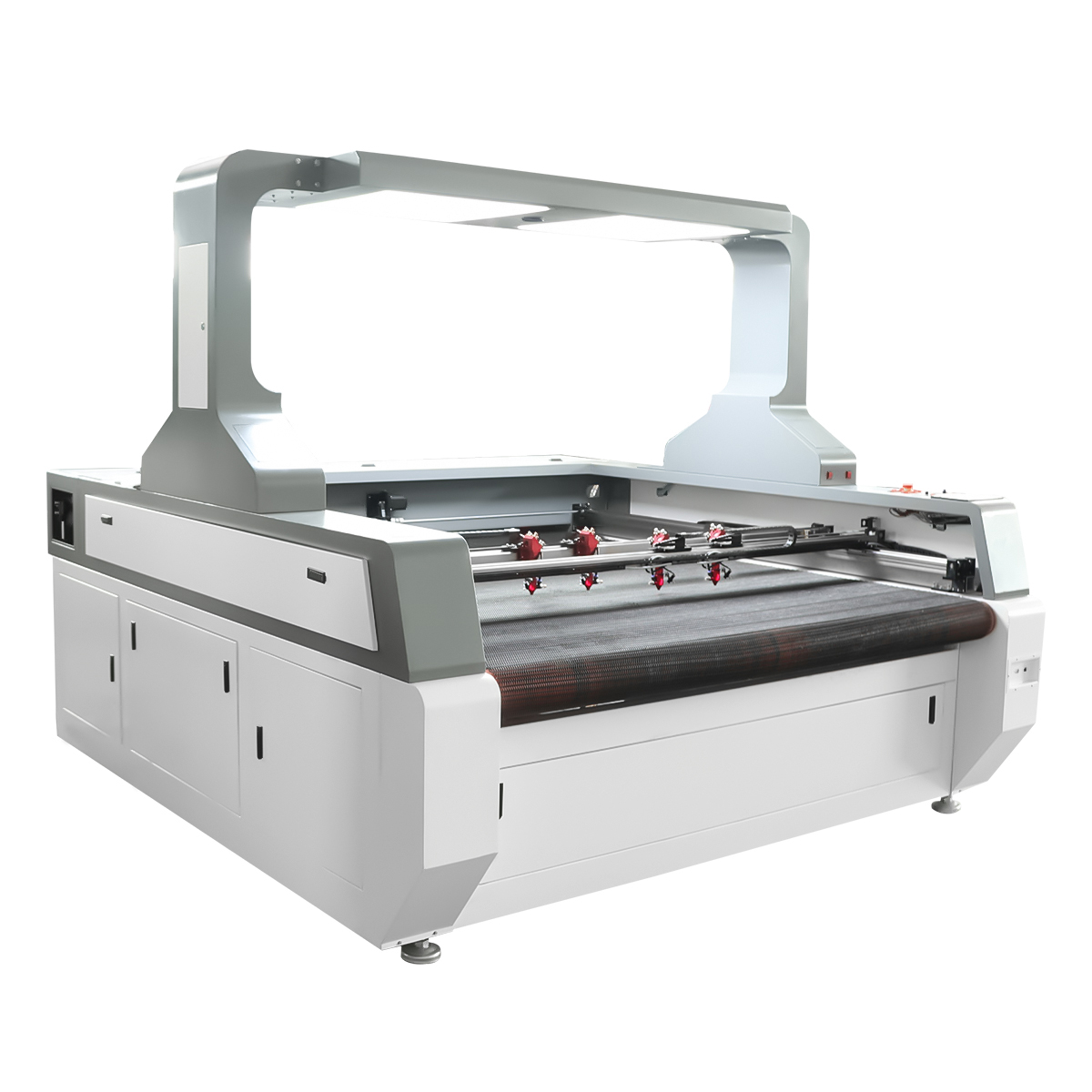

High Speed Industrial Textile Fabric Laser Cutting Machine
Polyester, nylon, nonwoven and woven fabrics, synthetic fibers...
High Speed Four Head Laser Cutter Solution
Compared with single-head laser cutting machine or double-head laser cutting machine, four-head laser cutting machine with automatic feeding system can provide you with less than 3 months return on investment automatic cutting workshop solution! High-precision cutting also guarantees your high product quality.
Applicable Materials
Polyester, nylon, nonwoven and woven fabrics, synthetic fibers, PES, polypropylene (PP), polyamide (PA), glass fiber (or glass fibre, fiberglass, fibreglass), Kevlar, aramid, Lycra, polyester PET, PTFE, paper, foam, cotton, plastic, viscose, felts, knitted fabrics, 3D spacer fabrics, carbon fibers, cordura fabrics, UHMWPE, sail cloth, microfiber, spandex fabric, etc.
Applications
1. Clothing Textiles: fabrics and technical textiles for clothing applications.
2. Home Textiles: carpets, mattress, sofas, armchairs, curtains, cushion materials, pillows, floor and wall coverings, textile wallpaper, etc.
3. Industrial Textiles: filtration, air dispersion ducts, etc.
4. Textiles used in automotive and aerospace: aircraft carpets, cat mats, seat covers, seat belts, airbags, etc.
5. Outdoors and Sports textiles: sports equipment, flying and sailing sports, canvas covers, marquee tents, parachutes, paragliding, kitesurf, etc.
6. Protective textiles: insulation materials, bulletproof vests, etc.
Model | VankCut-1810 4 heads |
Laser Power | 100W/120W/150W/180W/250W |

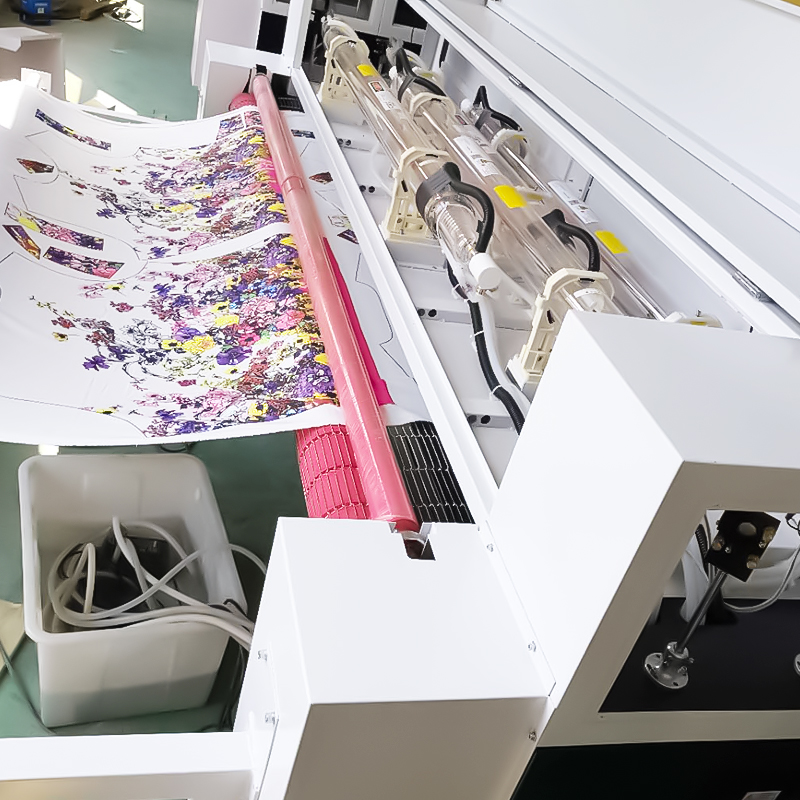

Laser Type | Sealed Glass CO2 Laser Tube,10-6um |
Working Area | 1800*1200mm |
Cooling Type | Water Cooling |
Acceleration | 8,000mm/s2 |
Cutting speed | 0~1,200mm/s |
Laser Output Control | 0-100% set by software |
Working table | Vacuum conveyor working table |
Controlling Software | Ruida Control System |
Graphic Format Supported | DST/PLT/BMP/DWG/DXF/AI/HPGL... |
Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. |
Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |

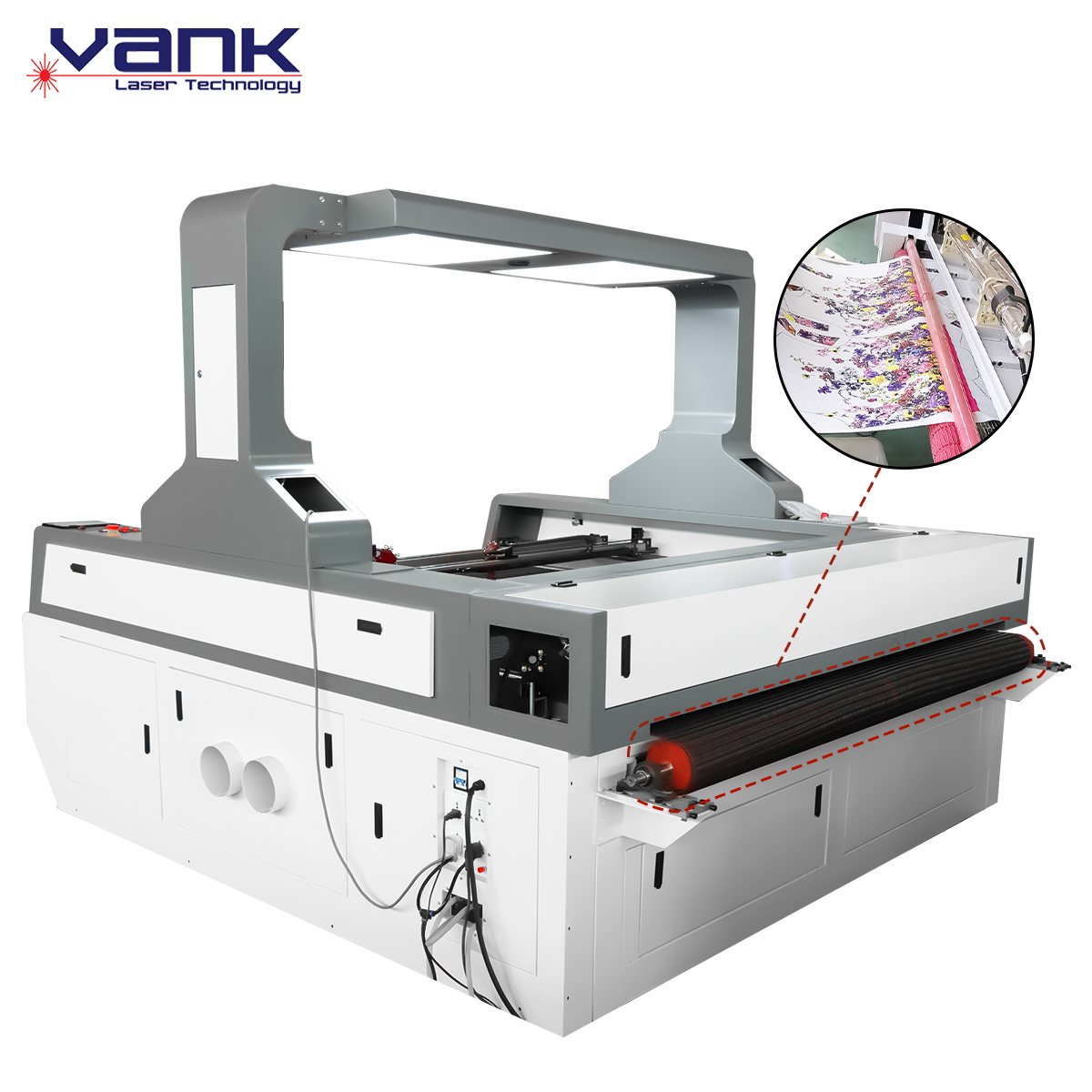

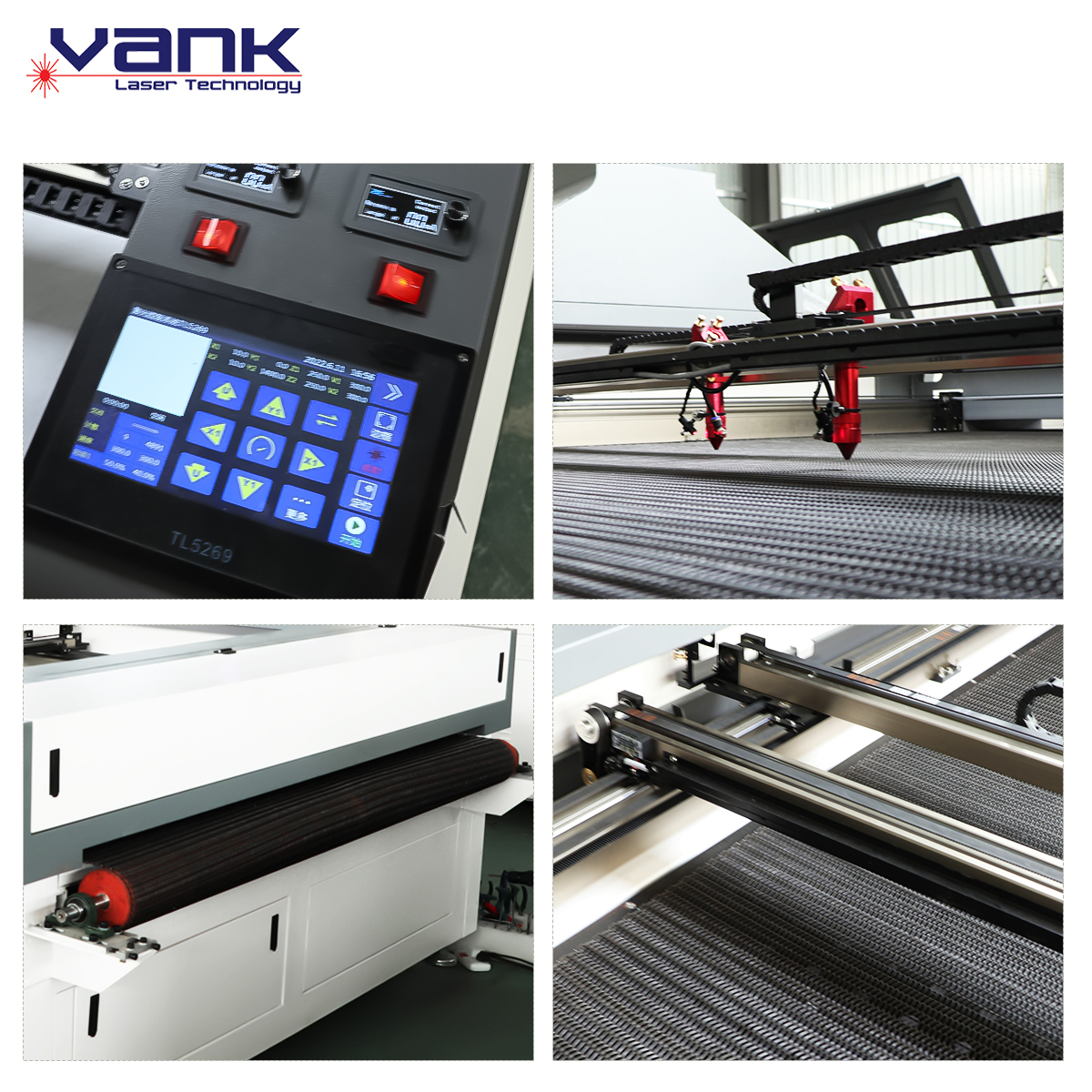

Auto Feeder
It is a feeding unit which runs synchronous with the laser cutter. the feeder will transfer the roll materials to the cutting table after you put the rolls on the feeder. You can set the different feeding speeds according to the main machine speed. The feeder has the sensor to ensure accurate positioning of the material. The feeder can be equipped with different shaft diameters for different rolls. The different pneumatic roller will be used for the textiles with different tension, thickness... This unit helps you to realize a completely automated cutting process.

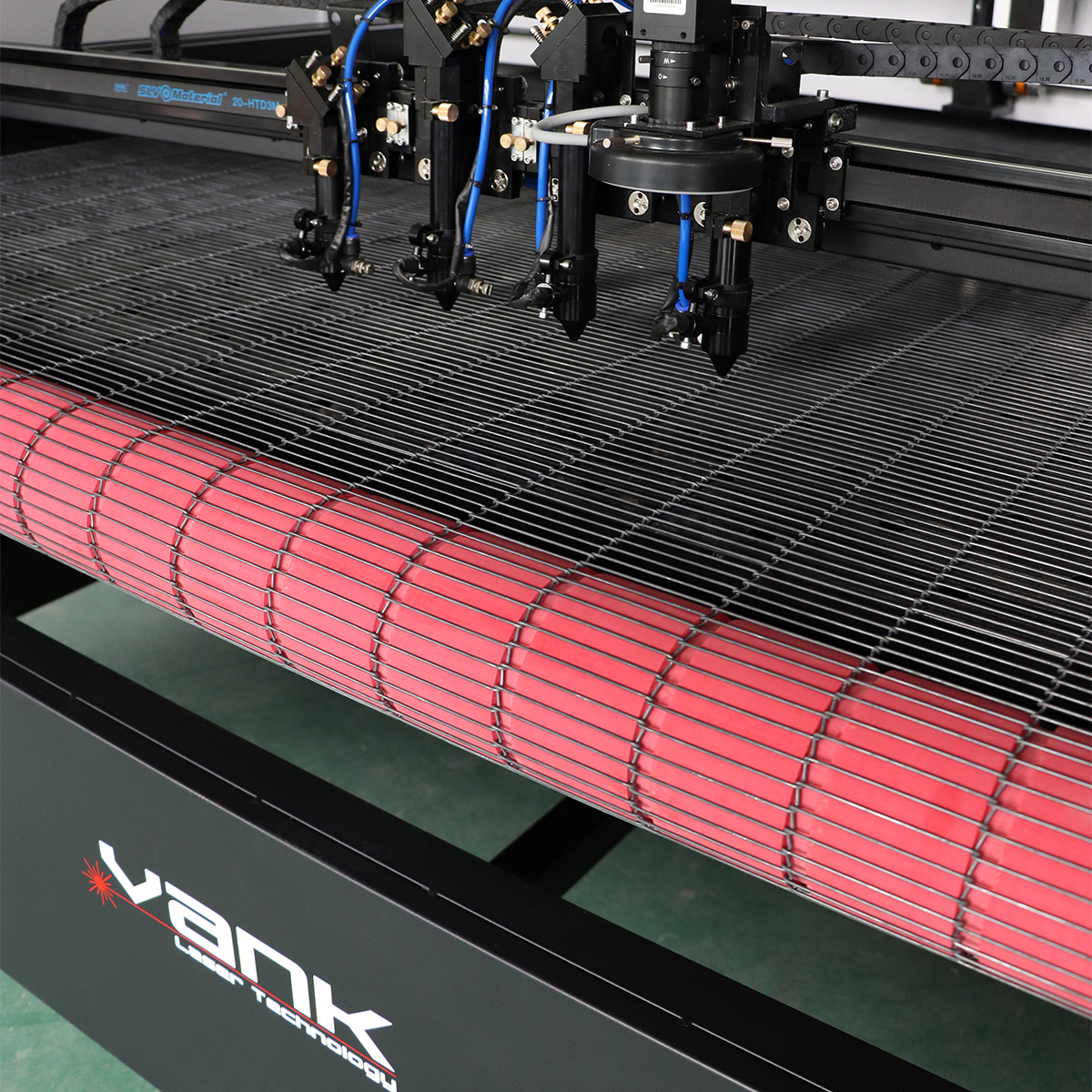

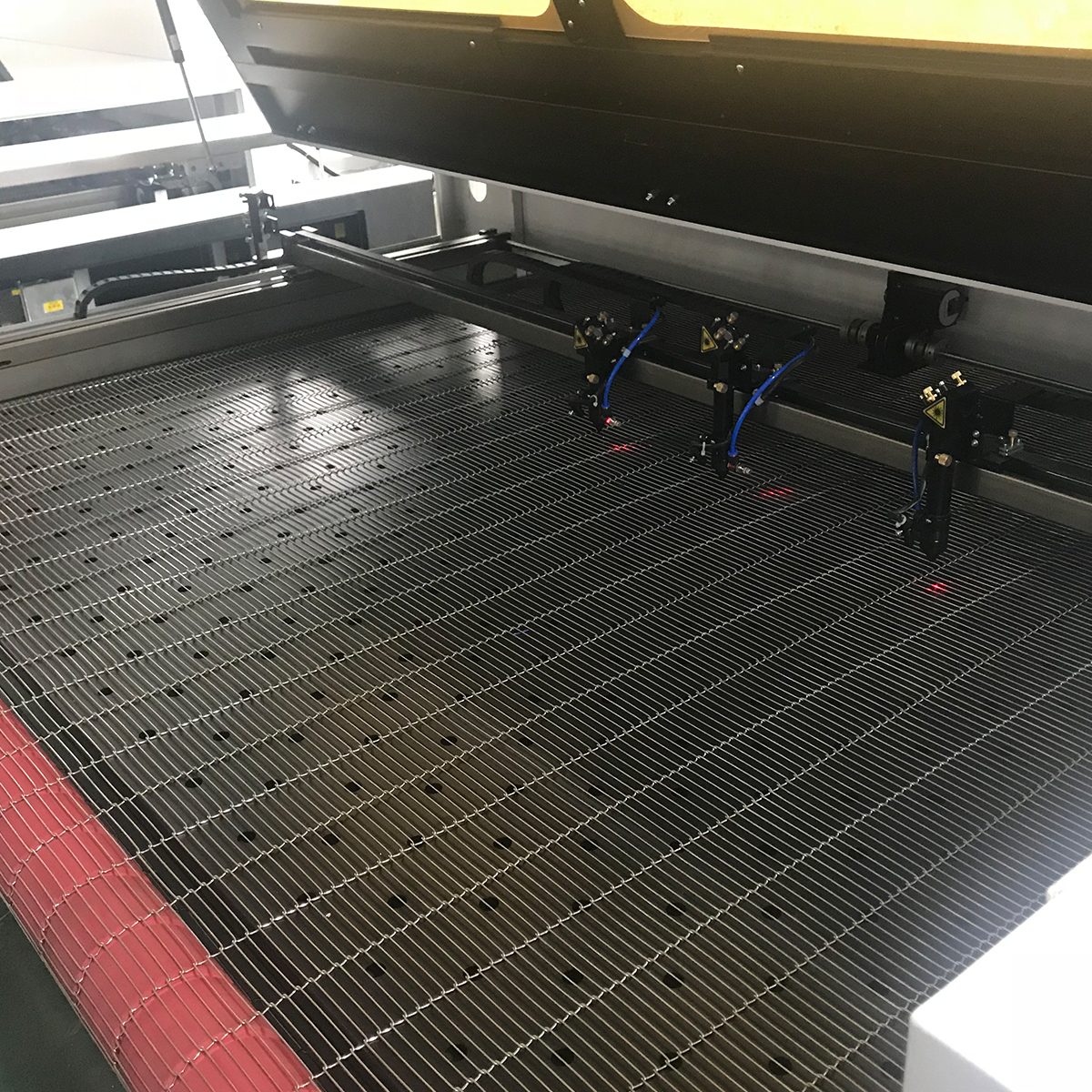

4 laser heads
The independent dual heads can cut different designs at the same time. It increases the cutting efficiency and production flexibility at the largest degree.
Honey Come Table
The vacuum table is under the cutting table, there is a series of holes in the surface of the table pull the material down onto the surface. The vacuum table allows full access to the surface, there is nothing to get in the way of the laser beam while it is cutting. With the strong exhaust fans together, it also helps to prevent the smoke and dust when cutting.
Fabric Laser Cutting Machine characteristics:
1)This laser cutting machine delivers fast and extremely accurate processing thanks to its high-quality components. Very dependable and maintenance free.
2)This laser machine comes with conveyor system. The machine feeds the material automatically in a continuous cycle in synchronism with the conveyor bed eliminating downtime completely to achieve the maximum productivity possible.
3)The vacuum conveyor worktable has the function of negative pressure adsorption to ensure the flatness of the fabric during laser cutting.

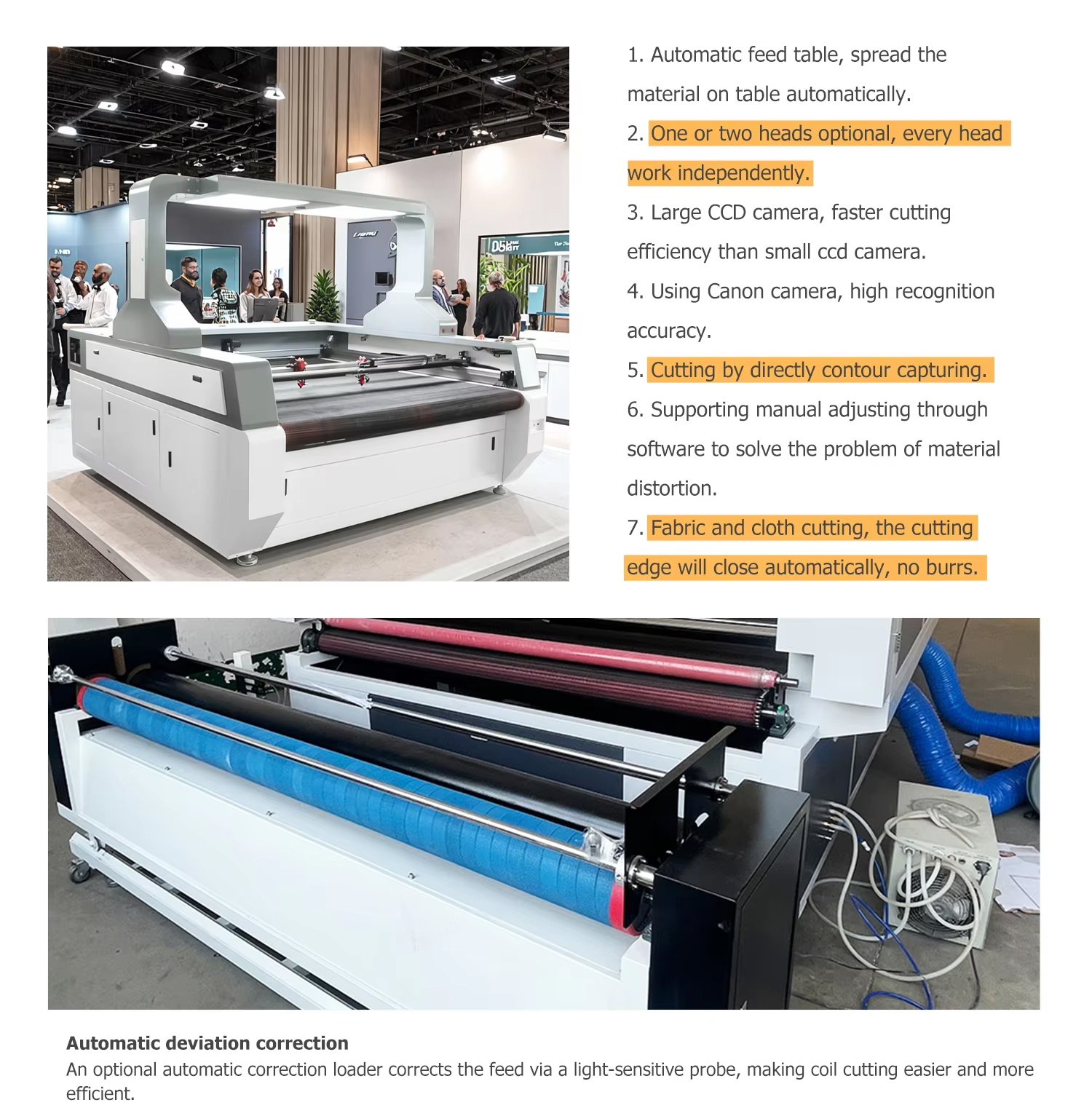

4)Automatic feeder with deviation correction function (optional) to ensure accurate feeding.
5)The unique manual and automatic interactive nesting software function can improve the fabric utilization to the extreme.
6)Along with the exhaust system, the laser head and the exhaust system synchronize; good exhaust effect, to ensure that dust dose not pollute the materials.
7)It is possible to complete entire format cutting of the extra-long layout with a single layout length that exceeds the cut format.
8)Along with the exhaust system, the laser head and the exhaust system synchronize; good exhaust effect, to ensure that dust dose not pollute the materials.
Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts, architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
Vanklaser at Dubai FEASPA 2024 exhibition
Vanklaser at Printing United Expo 2023
Vanklaser at 2023 Canton Fair
Product packaging
FAQ
1.I am looking for CO2 laser machine, any recommendation? |
A: Hi, there. Thank you for your concern about our laser cutting machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand. |
2.When I got this machine, but I don't know how to use it. What should I do? |
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail. |
3.How can I get the sample to check you quality ? |
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided. |
4.Do the machine can be customized according my requirements? |
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied. |
5:Can you arrange the shipment for me? |
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available. |
6:Why should you choose us? |
We have the high attention and faster response of post-sales in 24hrs. We offer two years-warranty for all products to ensure their activities and after-sales. |
